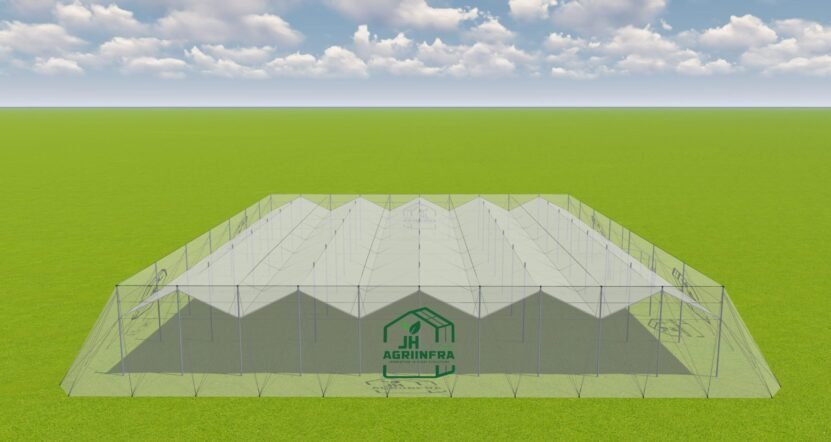

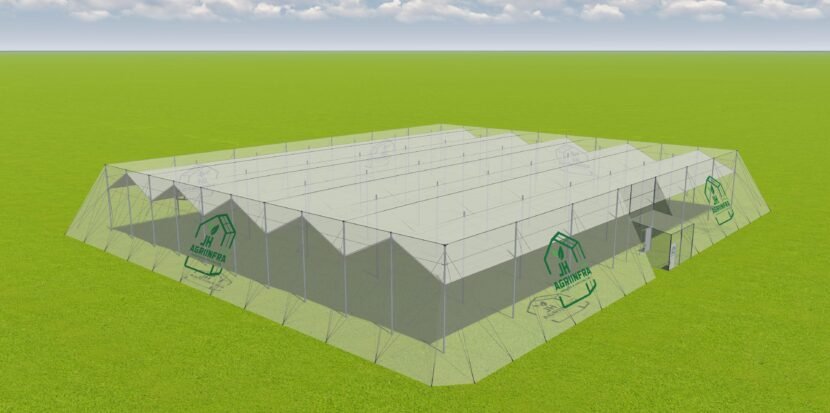

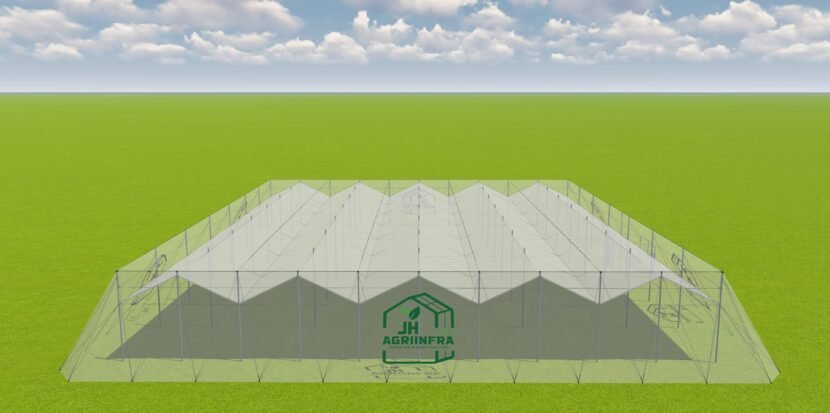

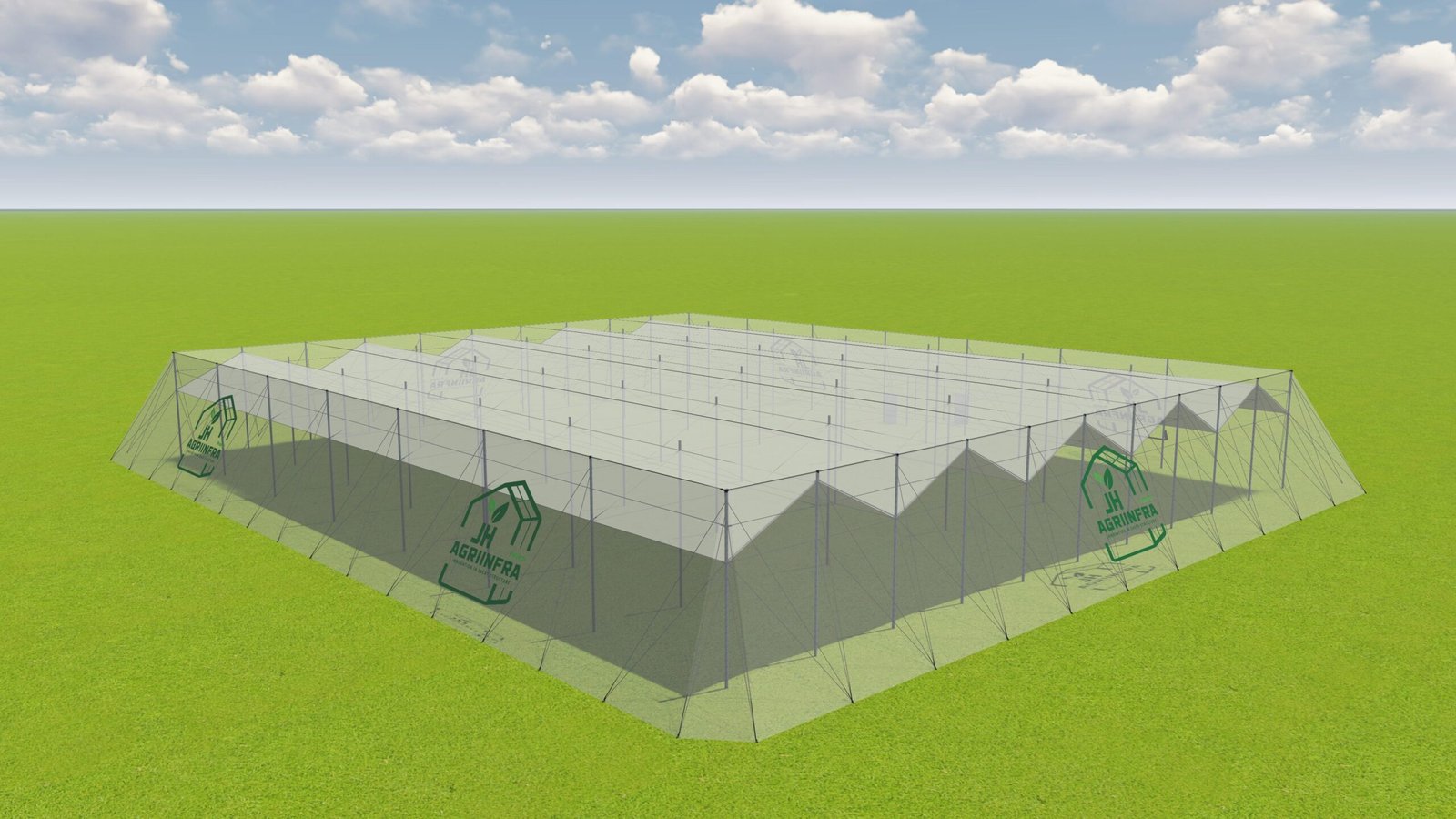

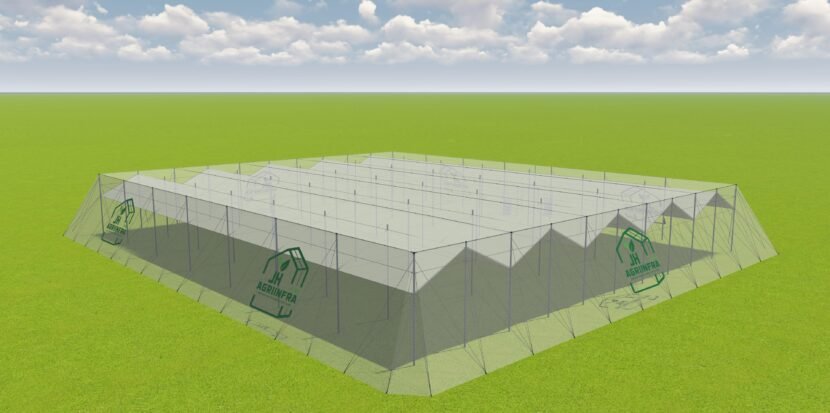

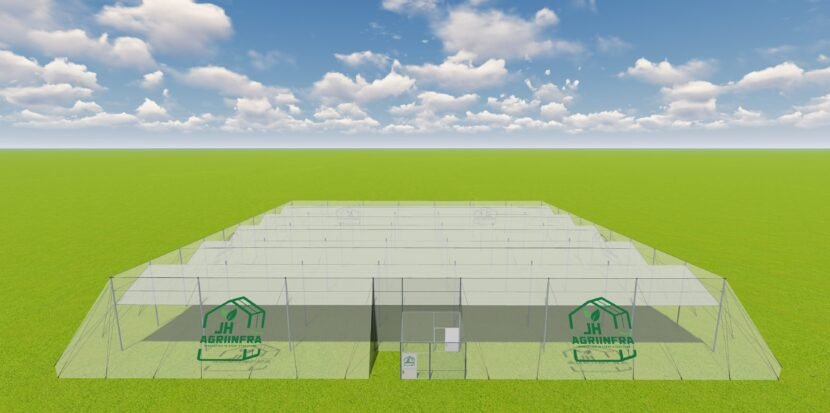

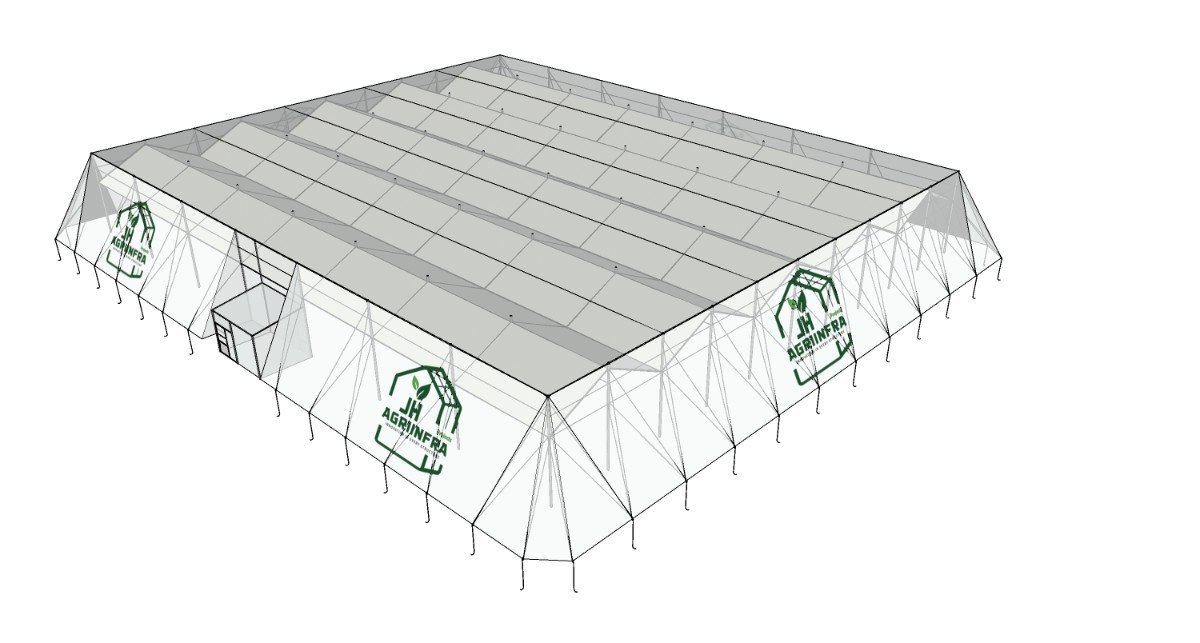

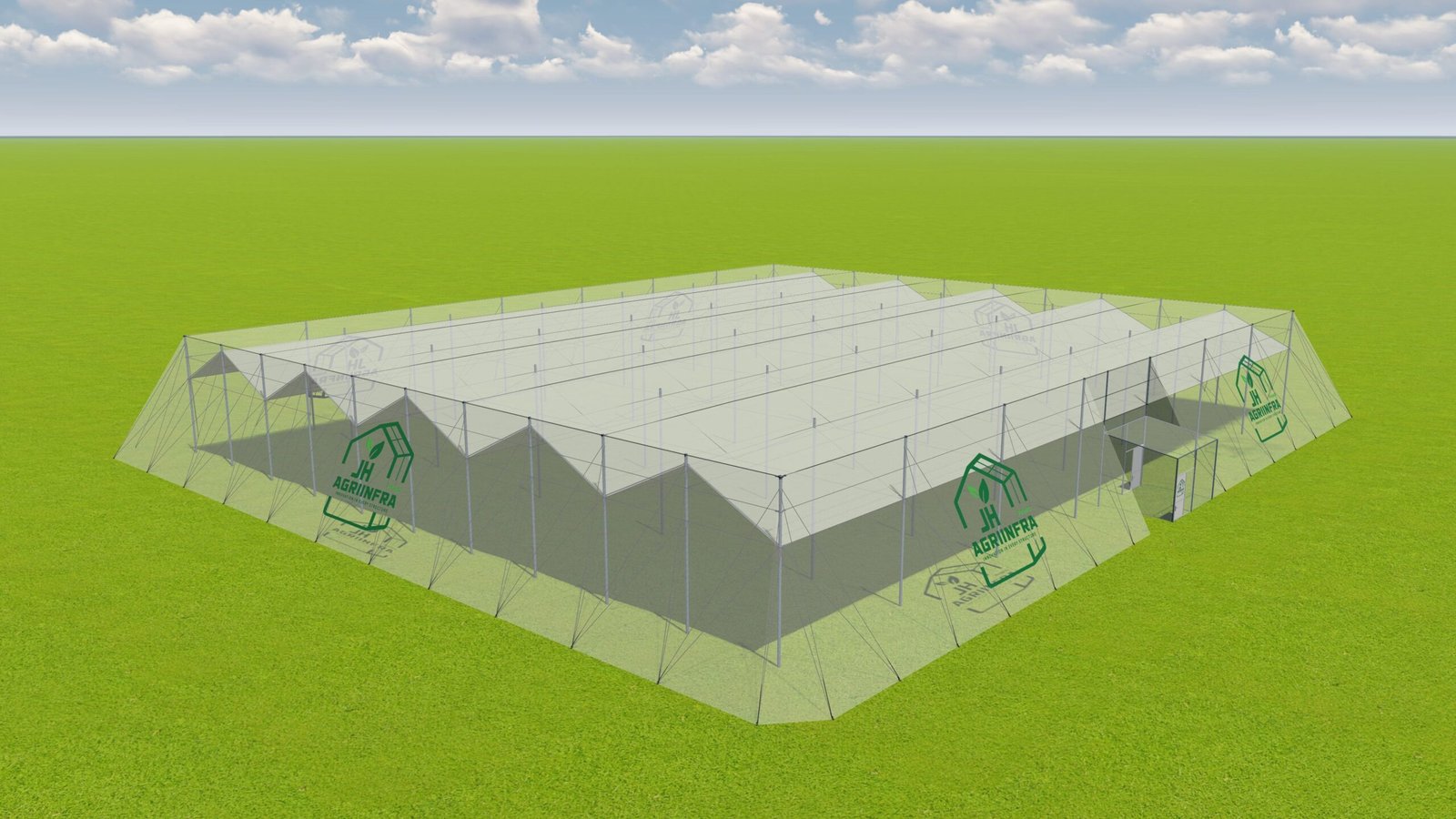

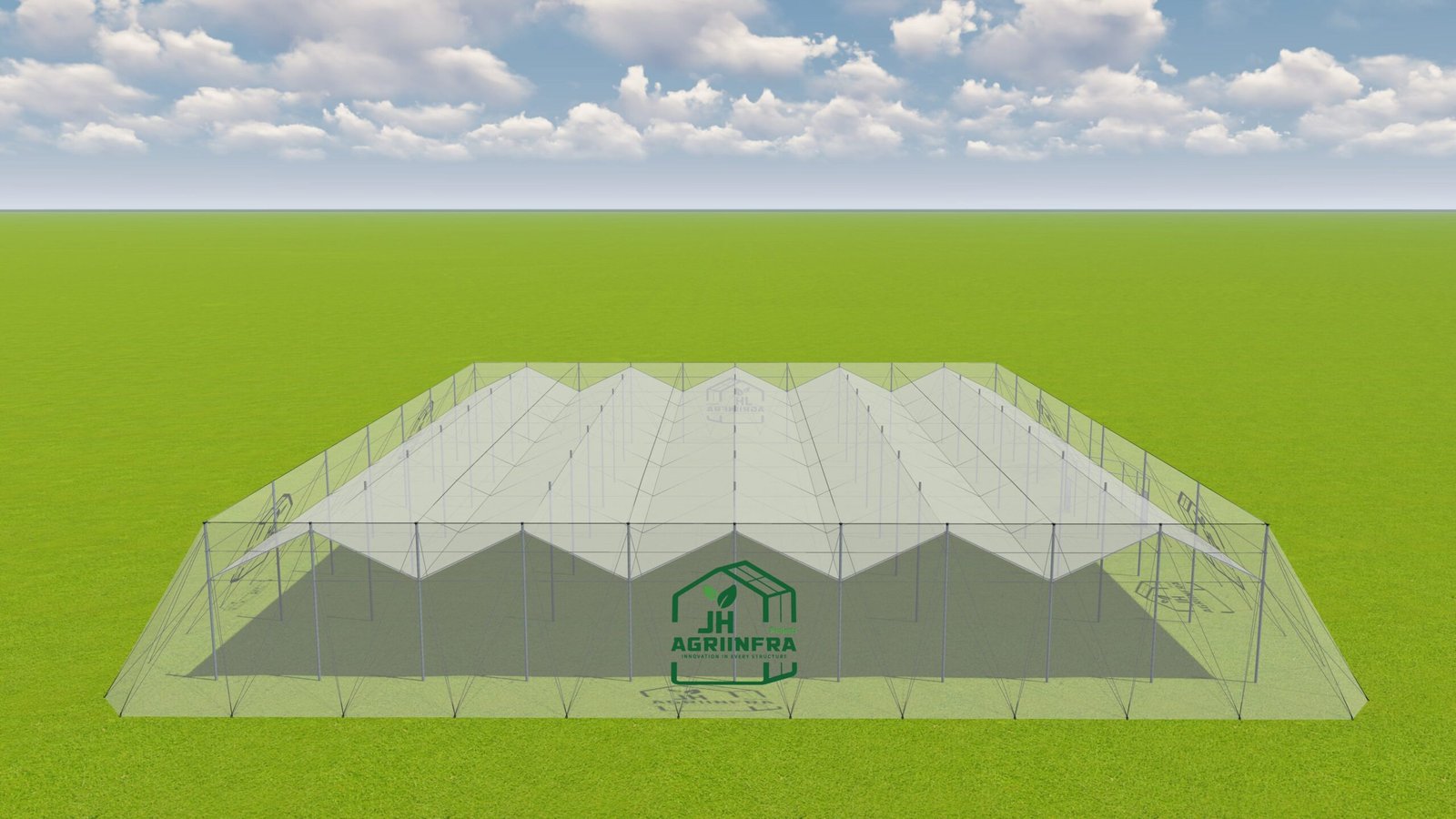

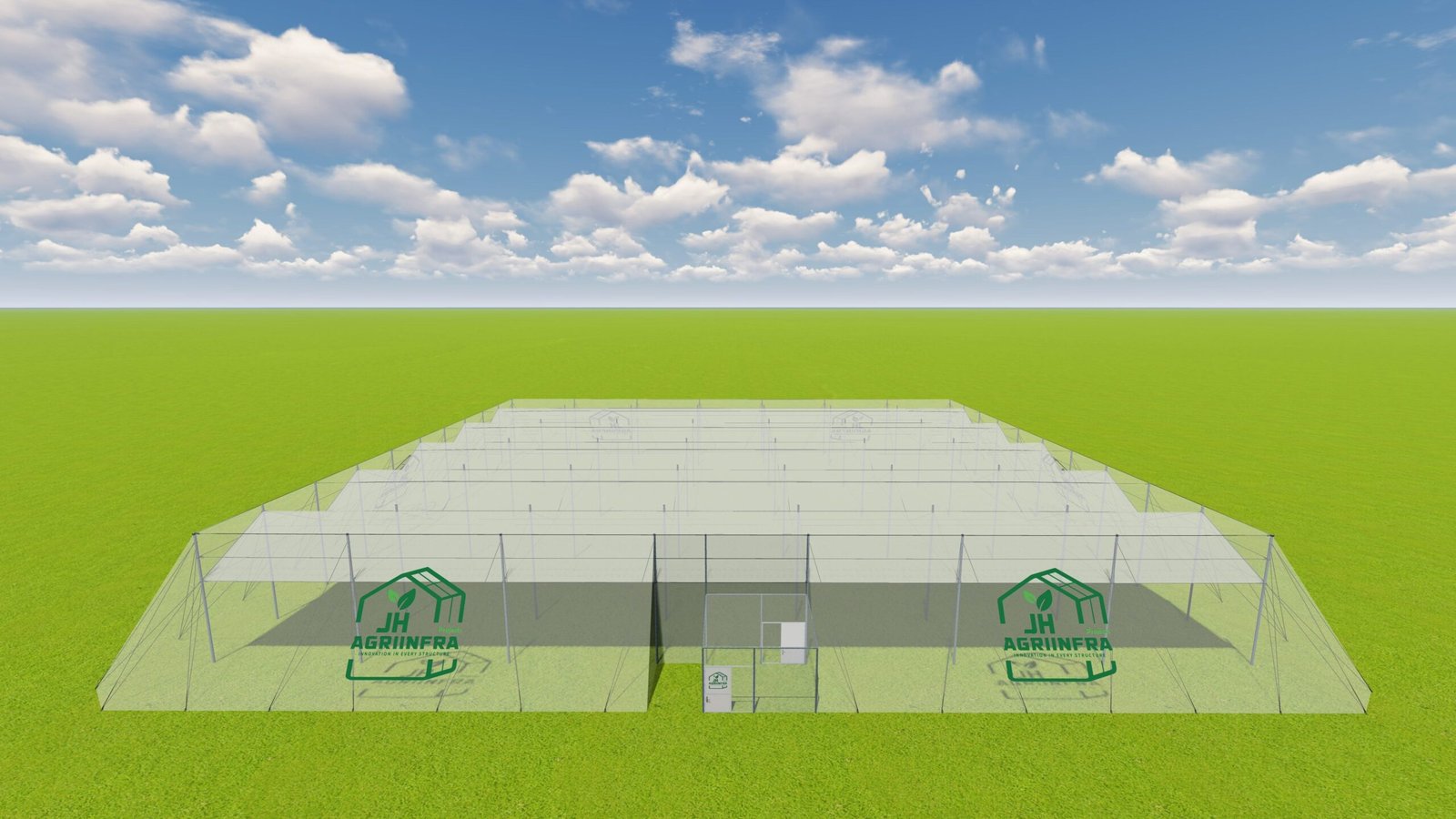

Wire Rope Flat Roof Shade Net House with Rain Protection System
A roof shade net house (anti-rain) is a protective structure specifically designed to shield crops from excess sunlight, heavy rainfall, and moderate winds. It features a durable shade net roof with an anti-rain polyethylene layer, ensuring an optimal growing environment while protecting plants from harsh weather conditions.
Top & Side Covering
Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected
Shade Net Options (Sliding Layer)
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected
Technical Specifications
| Structure Frame | 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) & Wire Rope 1 x 19 |
| Thickness of GI Pipe/s (mm) | 2.00, 2.90, 4.30 |
| Span (m) x Bay (m) | 7.00 x 6.00 or customized |
| Height (m) | 3.00 to 6.00 or customized |
| Trellising System Capacity (kg) | 25.00 kg/m2 |
Innovation and customization are possible per client requirements.
-
