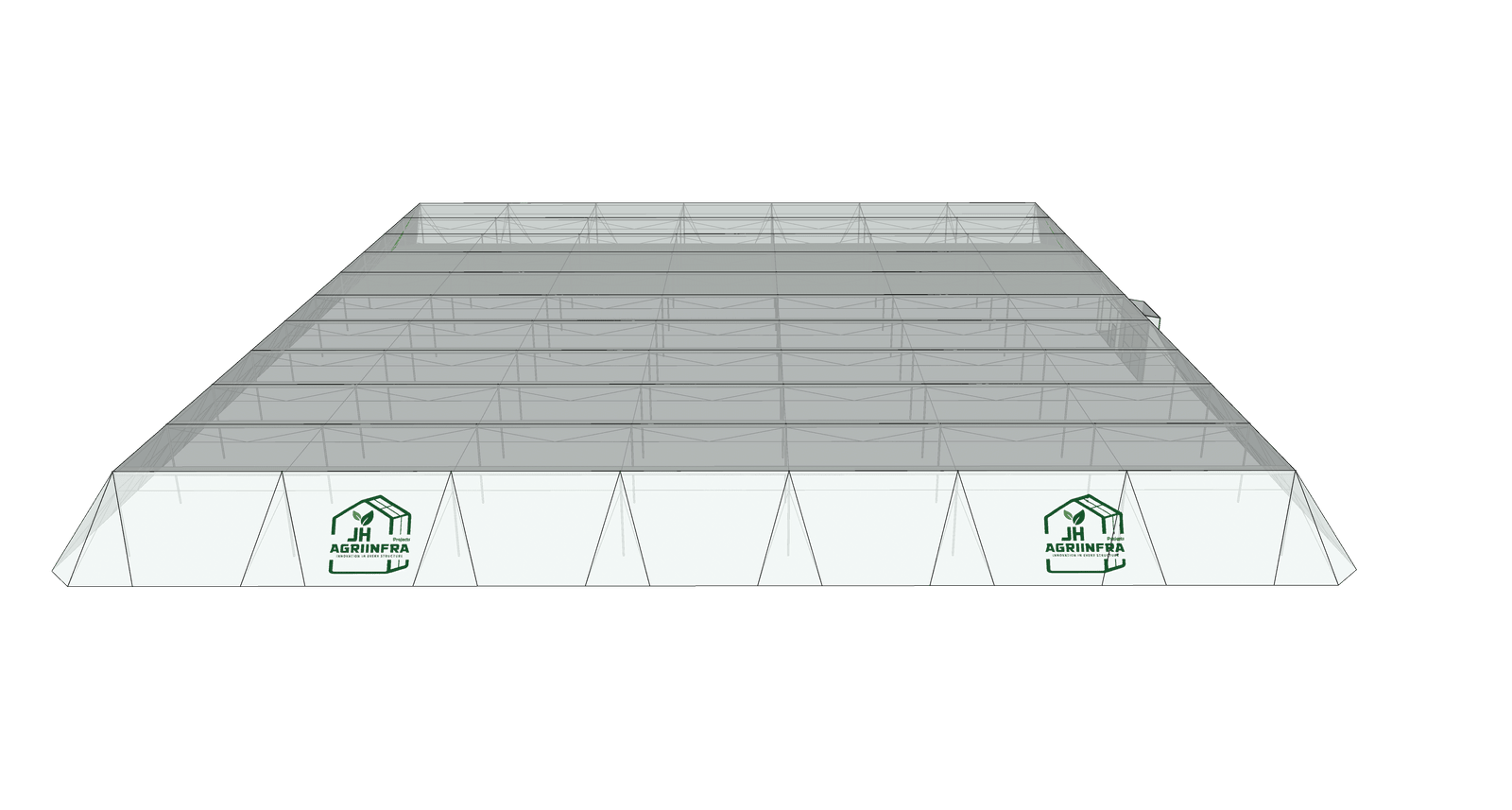

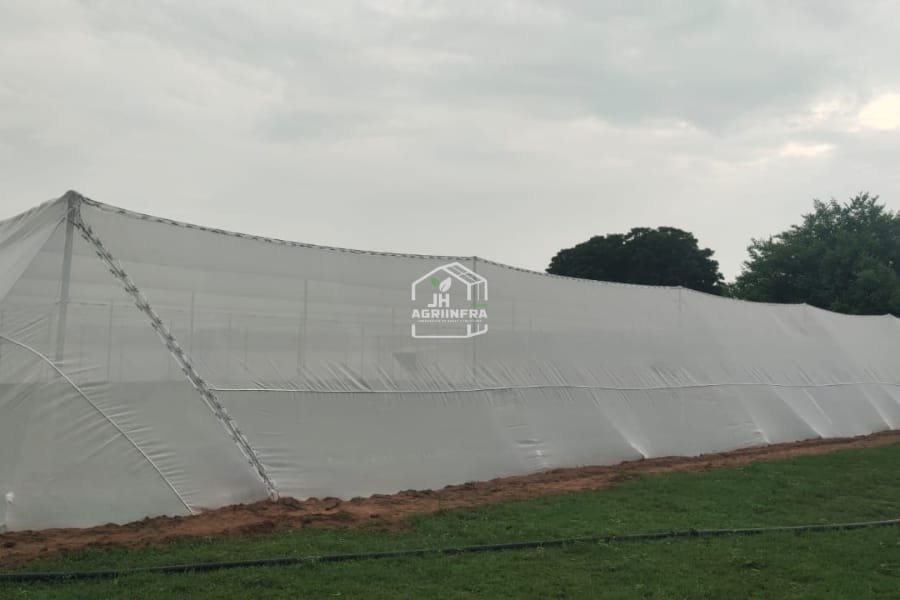

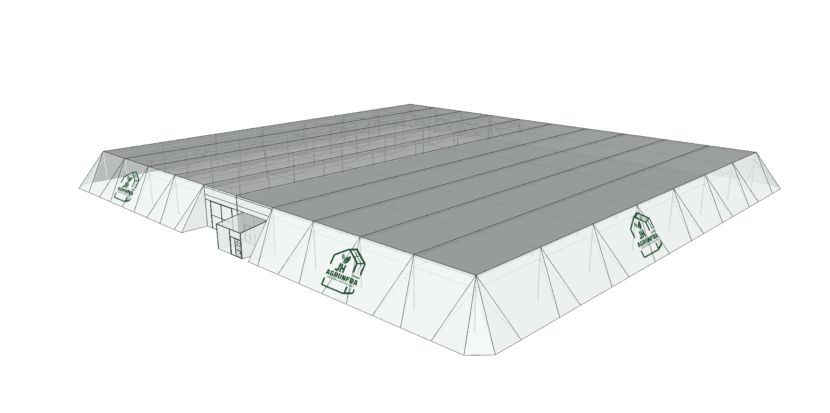

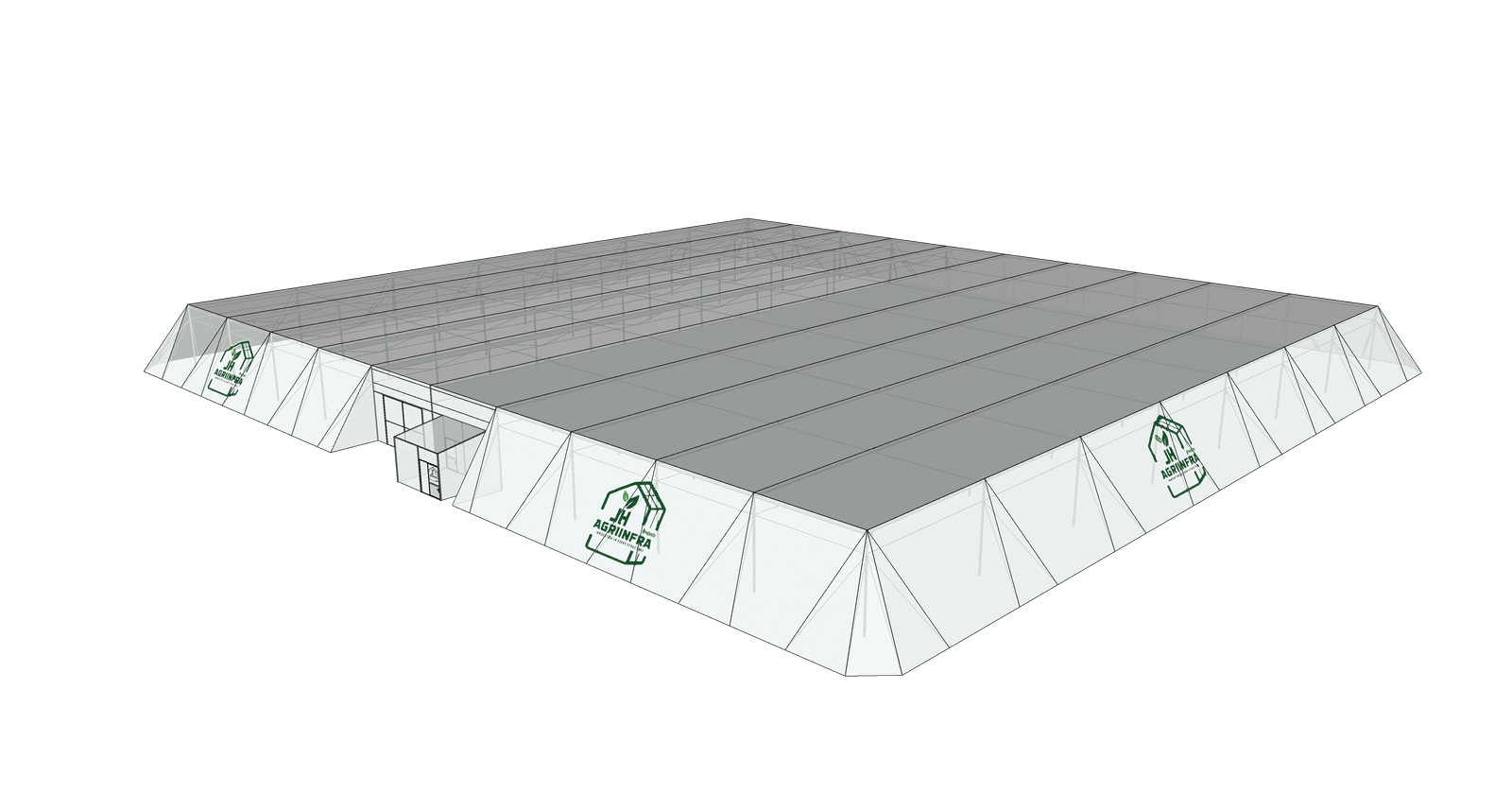

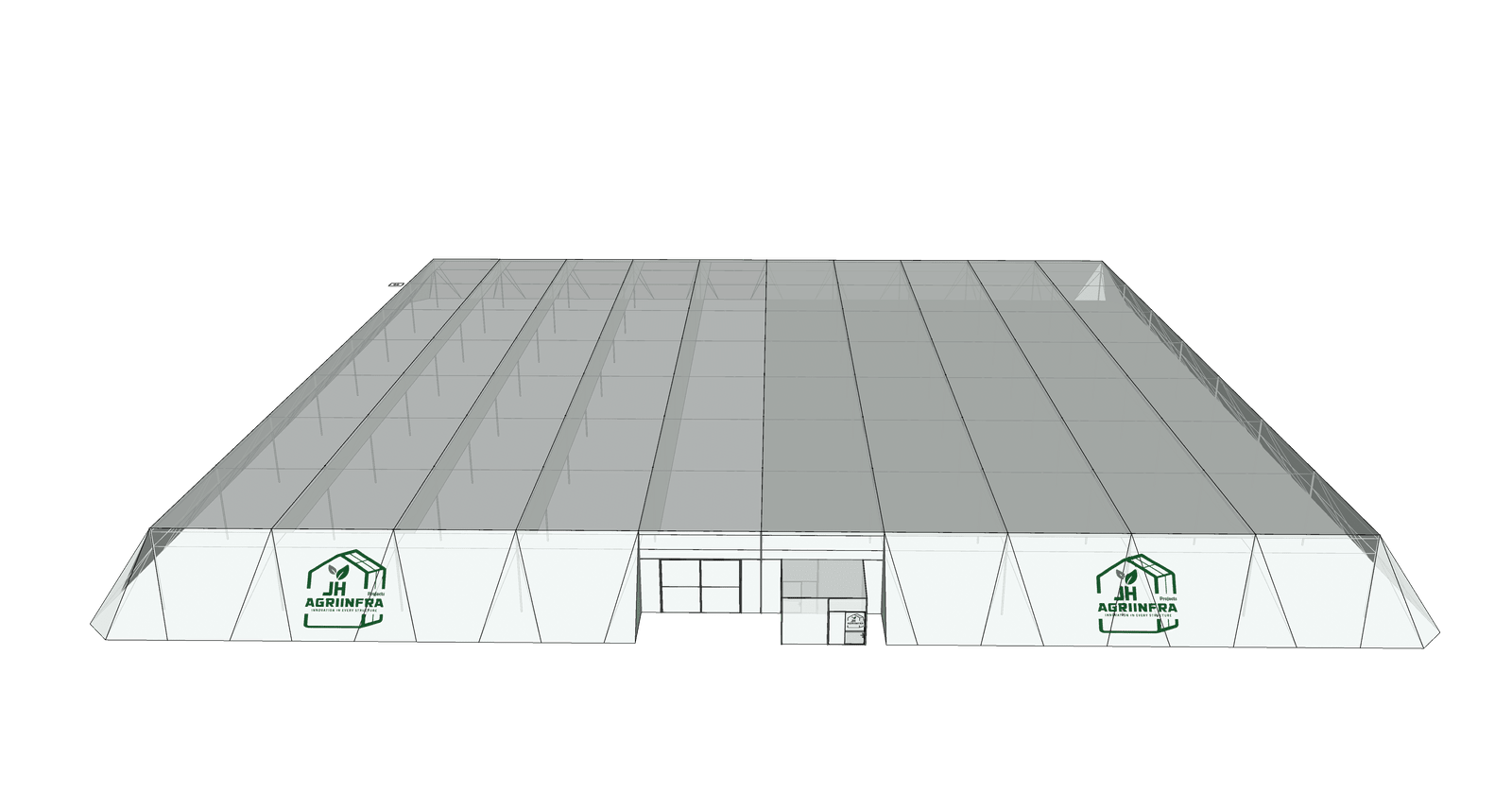

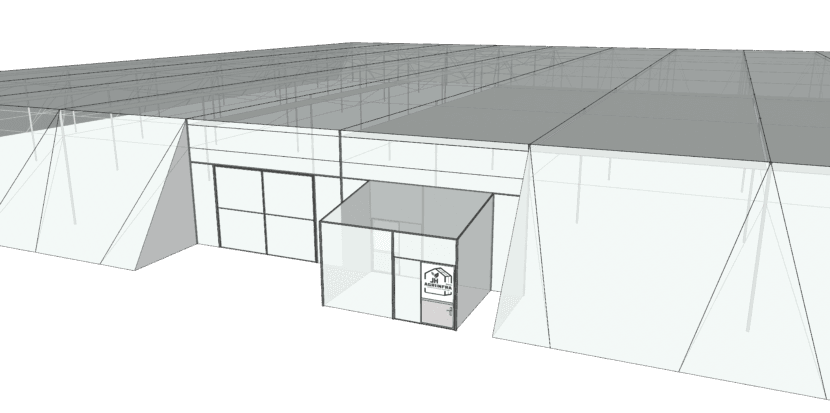

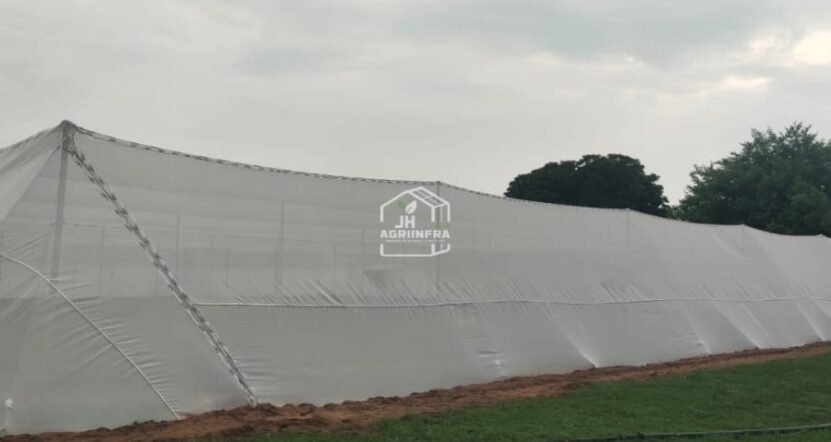

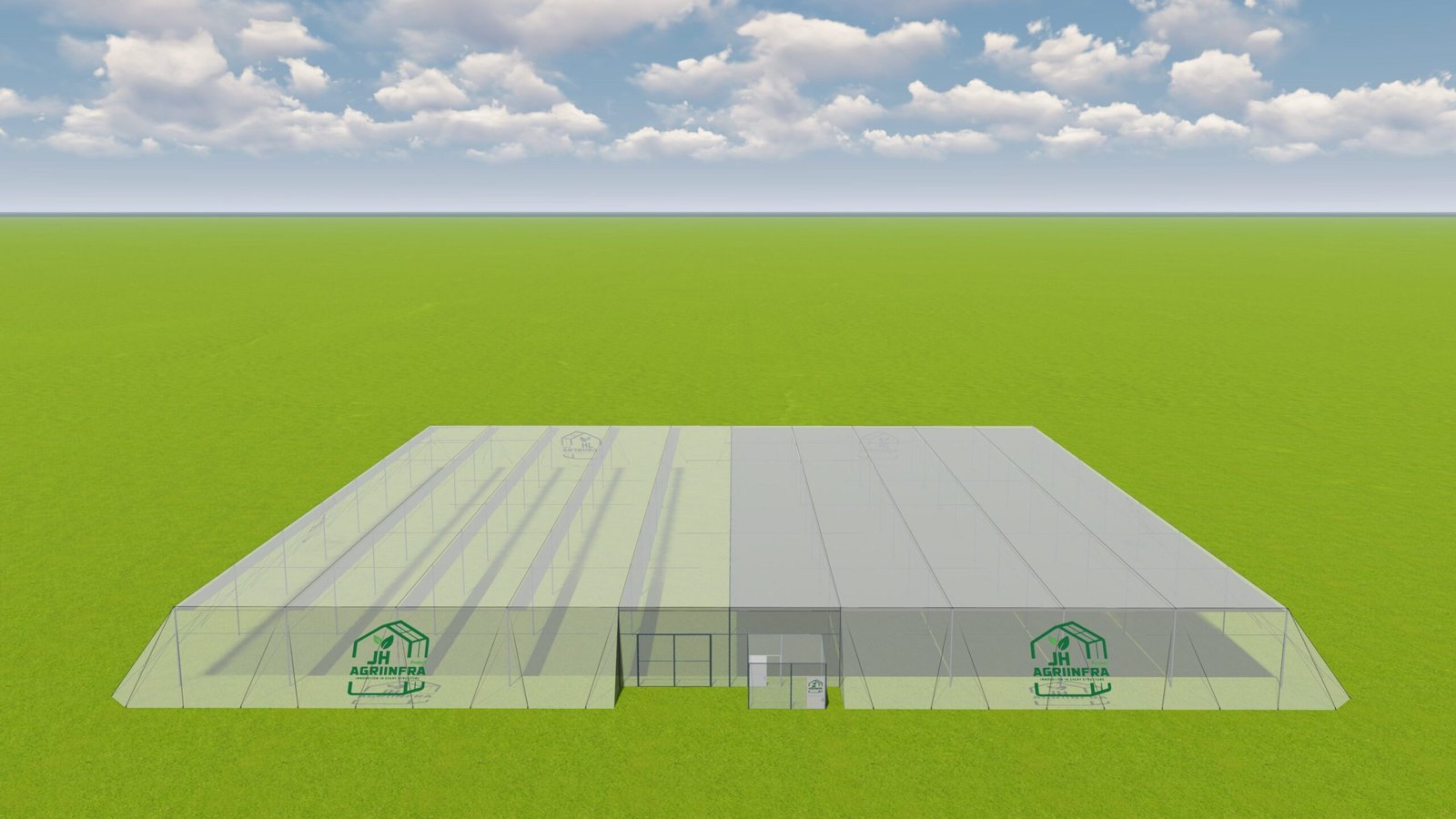

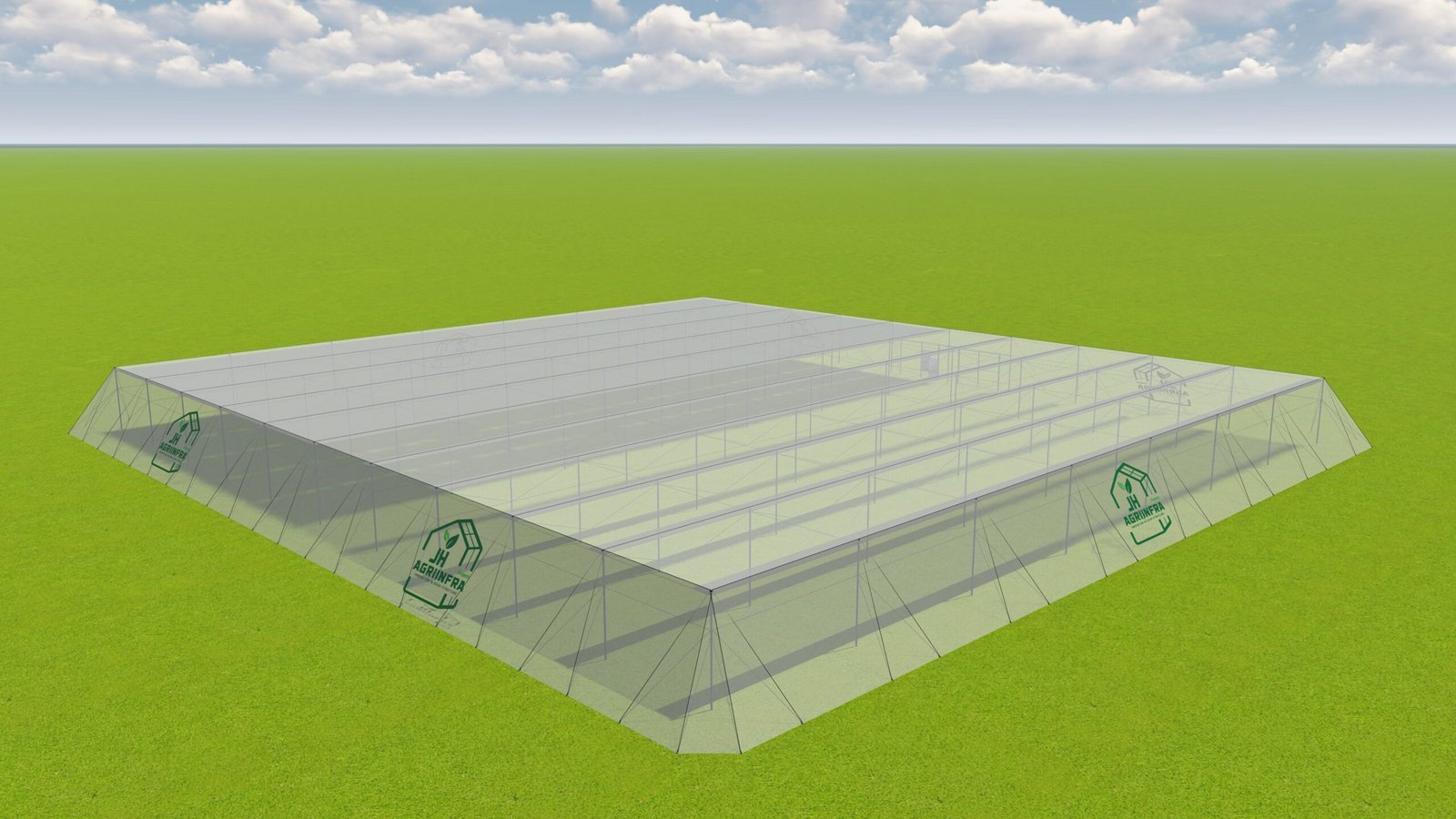

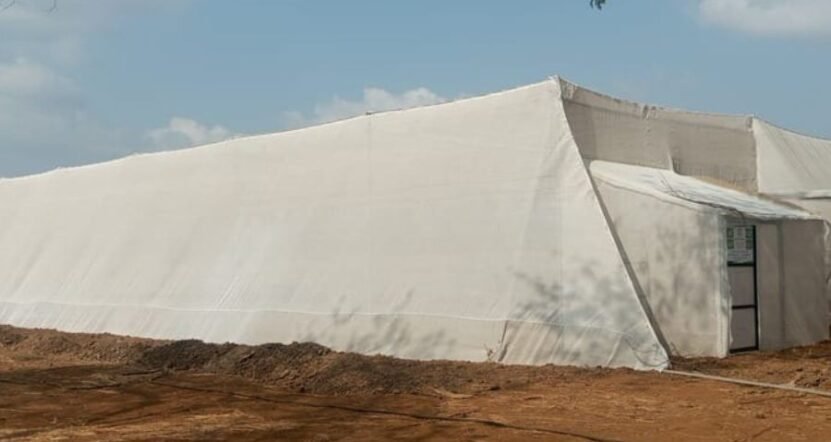

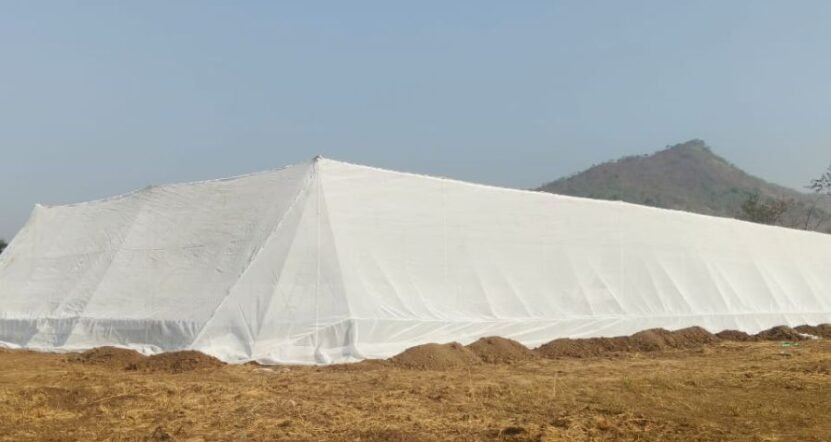

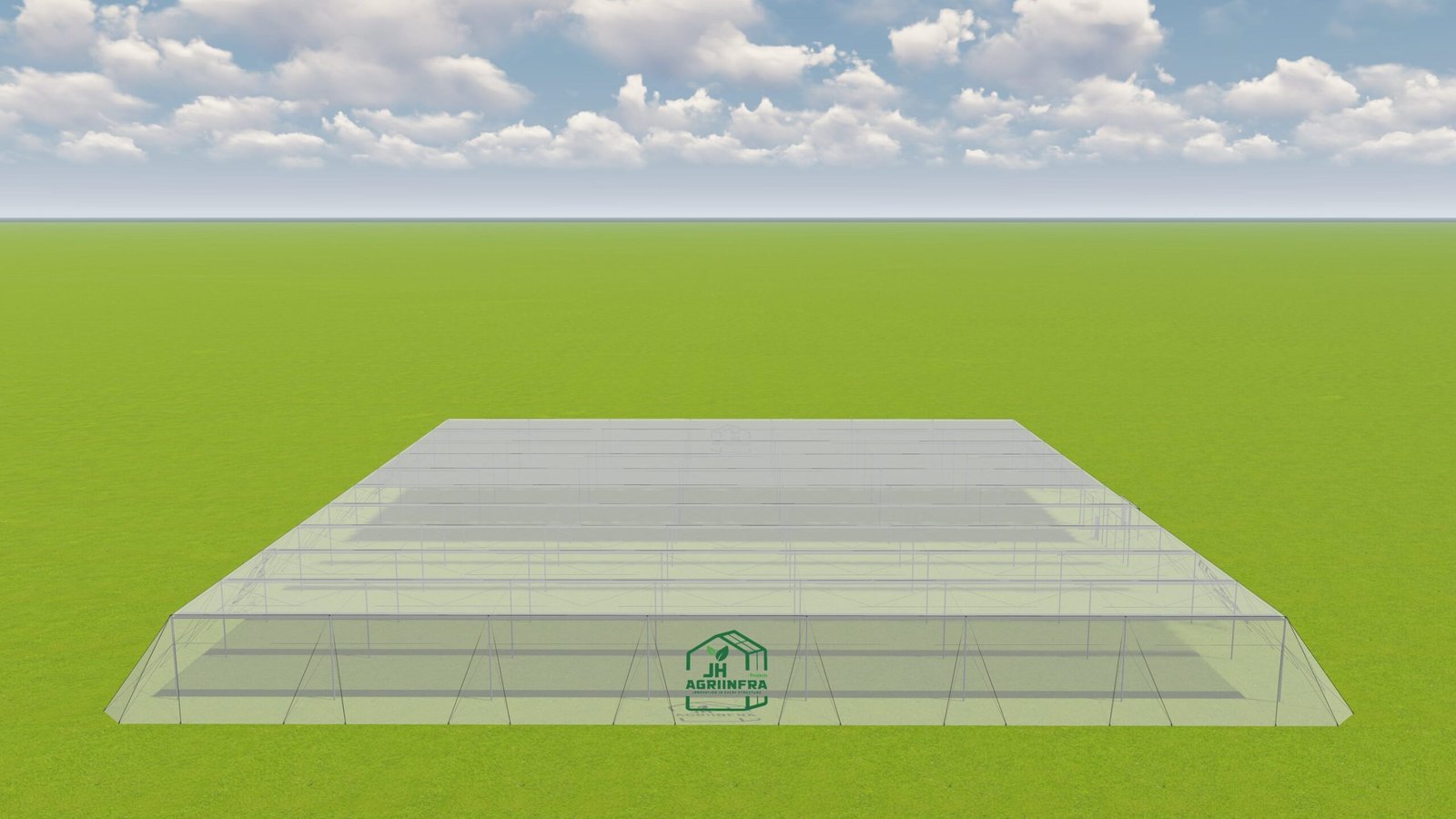

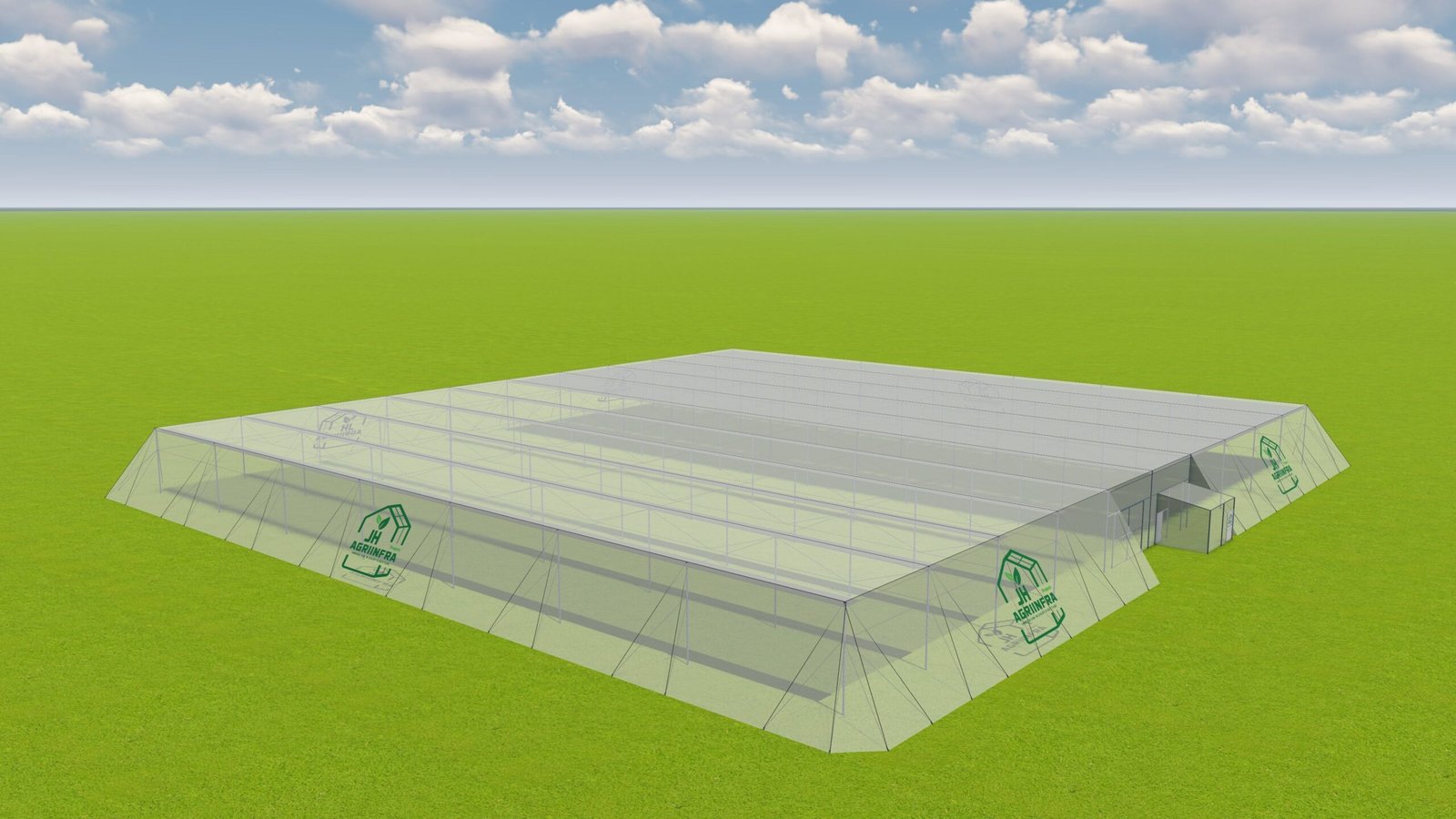

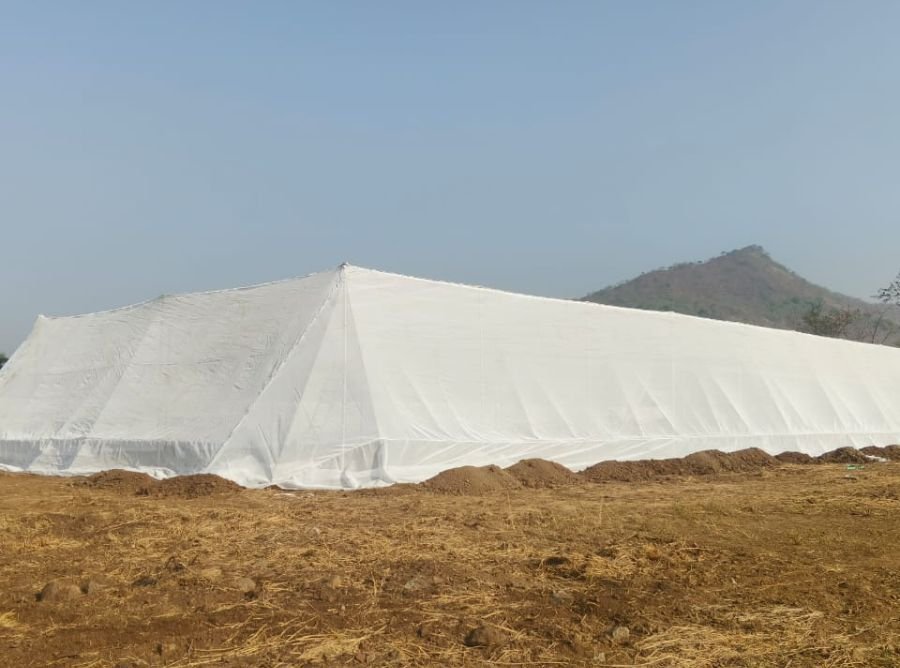

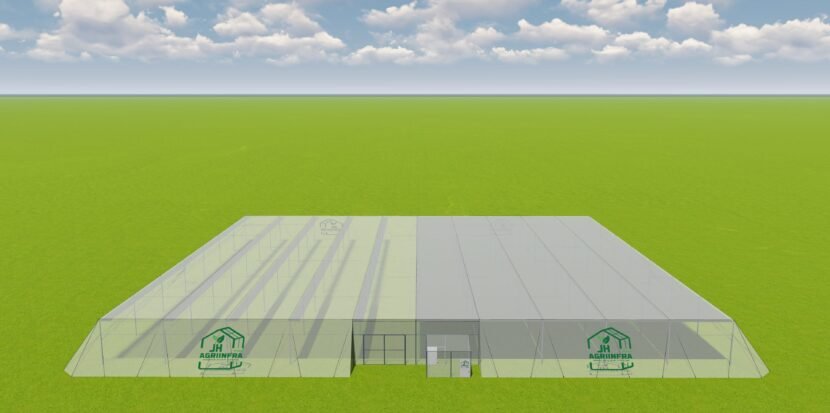

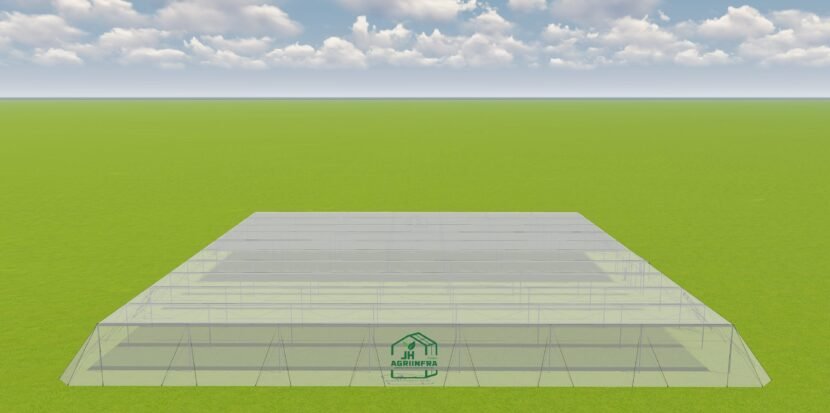

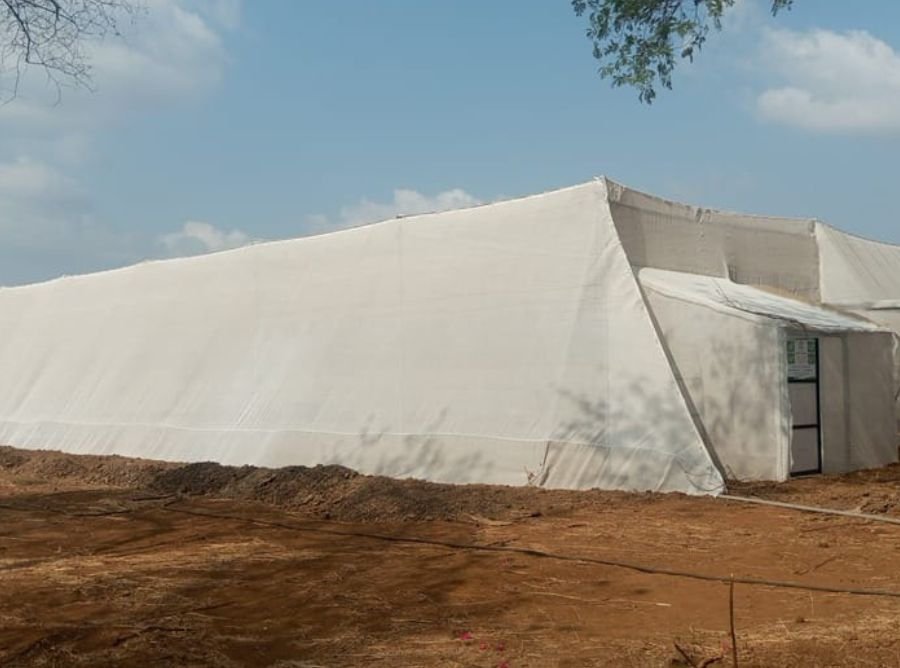

Wire Rope Flat Roof Shade Net House

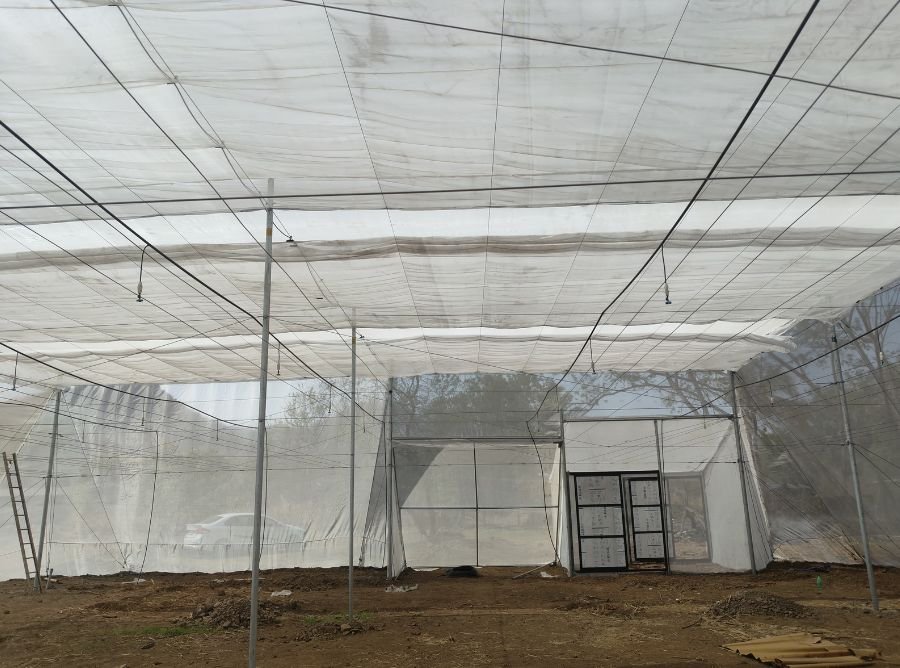

A wire rope net house is a protective agricultural structure made using a framework of wire ropes and poles, covered with shade nets or insect-proof nets. The wire ropes provide robust support for the netting, making the structure durable and resistant to harsh weather conditions. This net house is designed to reduce sunlight intensity, regulate temperature, enhance air circulation, and protect crops from pests, birds, and hail. It is widely used for cultivating vegetables, fruits, flowers, and nursery plants, offering a controlled environment that promotes healthy crop growth.

Top & Side Covering

Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected

Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected

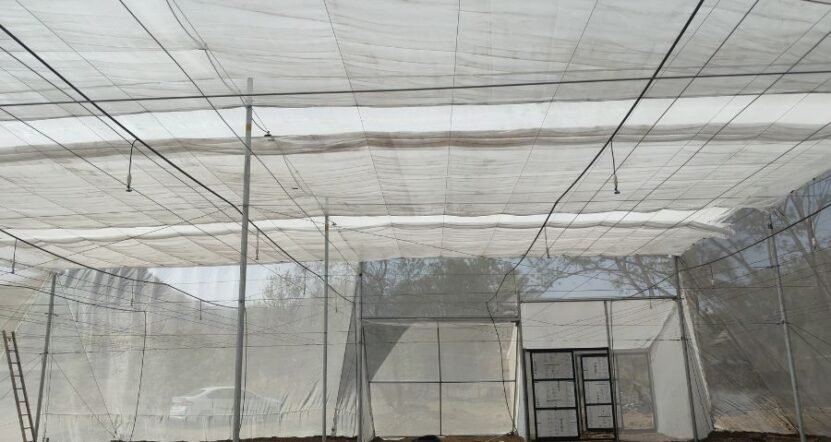

Shade Net Options (Sliding Layer)

Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected

Technical Specifications

Structure Frame	250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) & Wire Rope 1 x 19
Thickness of GI Pipe/s (mm)	2.00, 2.90, 4.30
Span (m) x Bay (m)	8.00 x 6.00, 8.00 x 4.00 , 9.60 x 4.00 or customized
Height (m)	3.00 to 6.00 or customized
Trellising System Capacity (kg)	25.00 kg/m²

Innovation and customization are possible per client requirements.

Get Customized Quotation

Sections

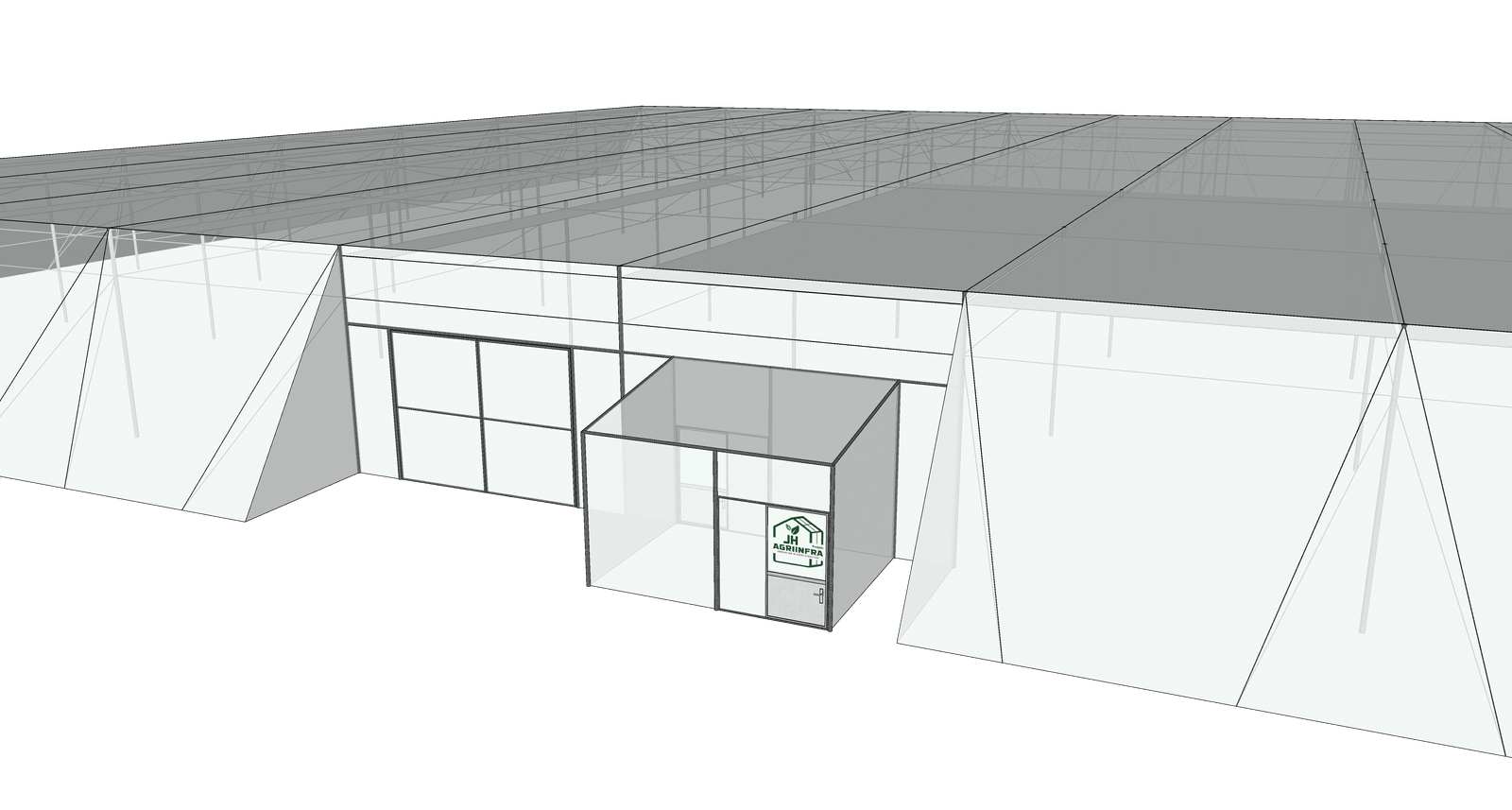

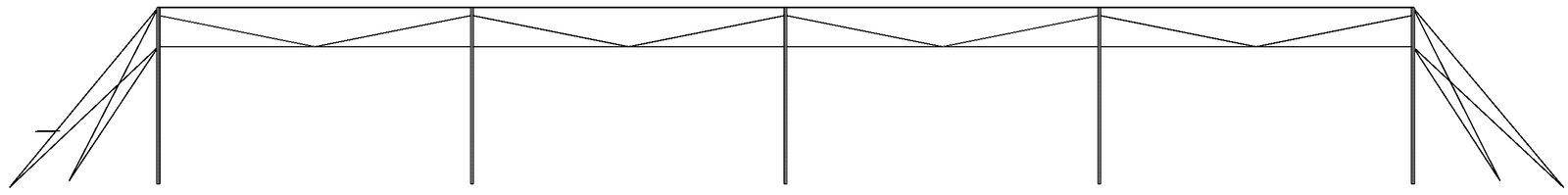

Inner Section

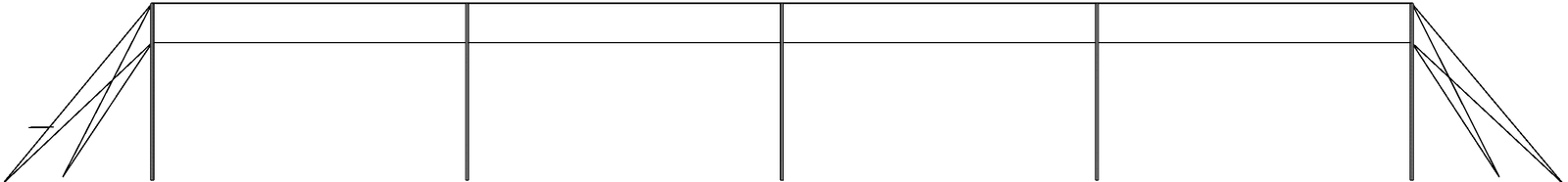

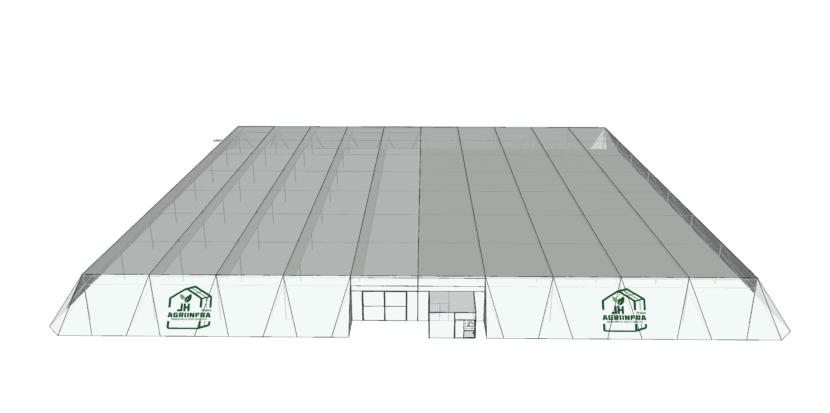

Outer Section

FAQ

Is the structure resistant to harsh weather conditions?

Yes, the wire rope framework adds stability, making it resistant to strong winds, hail, and heavy rainfall.

What shading percentage is suitable for different crops?

For most vegetables, 35-50% shade is ideal, while ornamental plants and flowers may require 50-75% shade.

What are the benefits of using wire rope net houses?

They are durable, offer better stability against strong winds, provide shade, protect crops from pests and weather extremes, and reduce water evaporation.

Does a shade net house require irrigation systems?

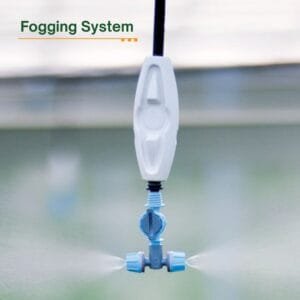

Yes, drip irrigation or sprinkler systems are often used to ensure efficient water usage and uniform watering.
