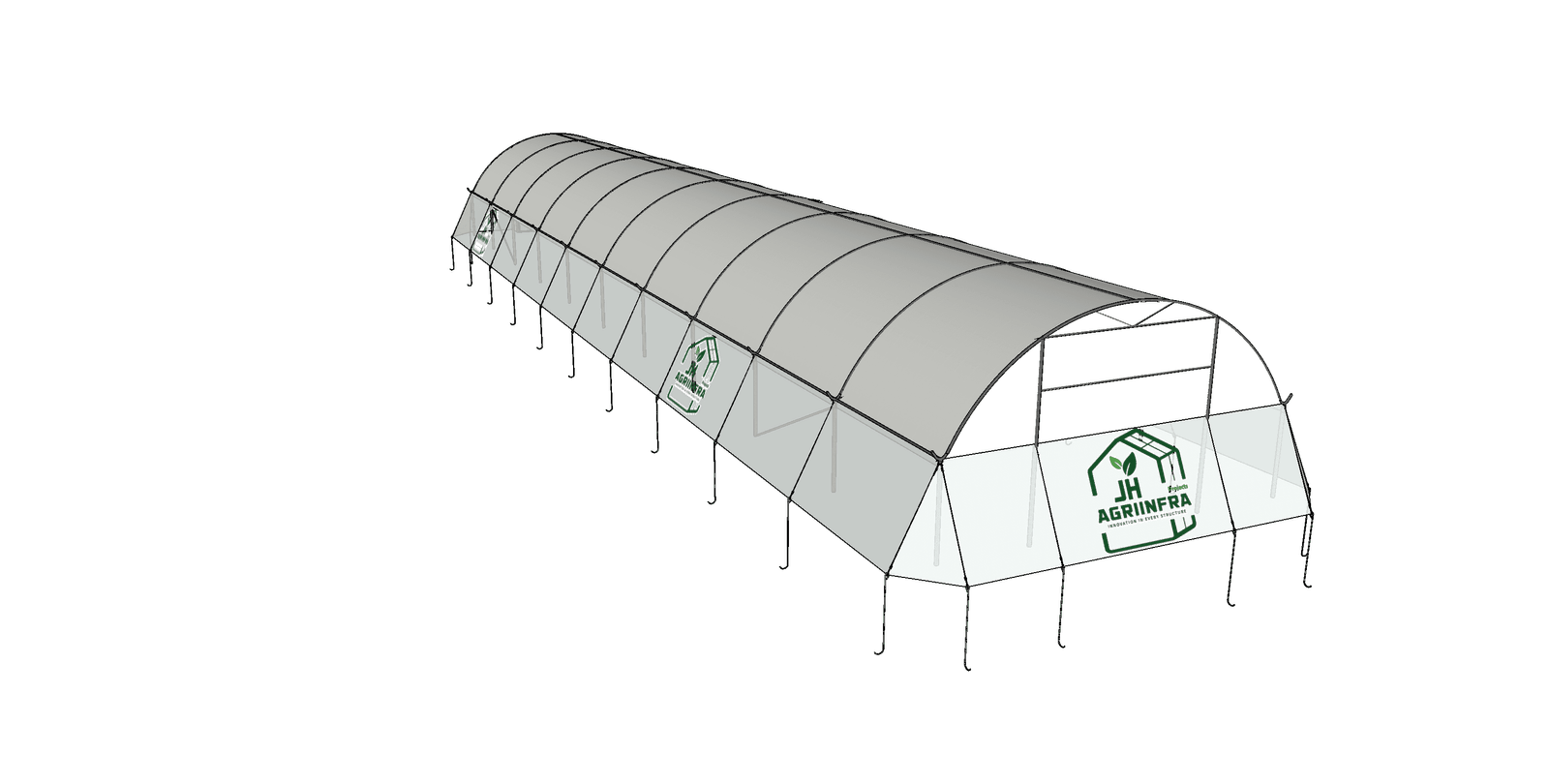

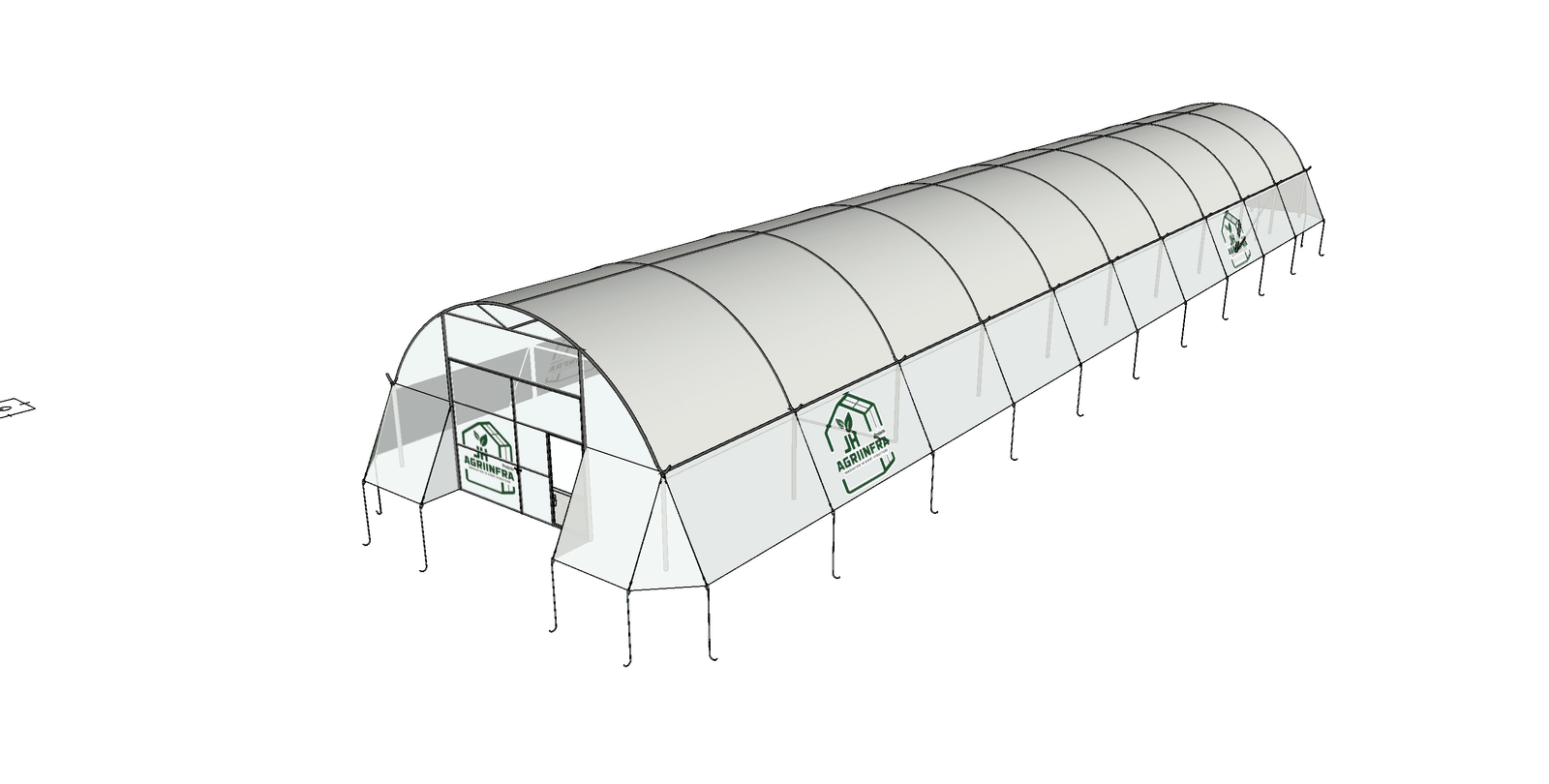

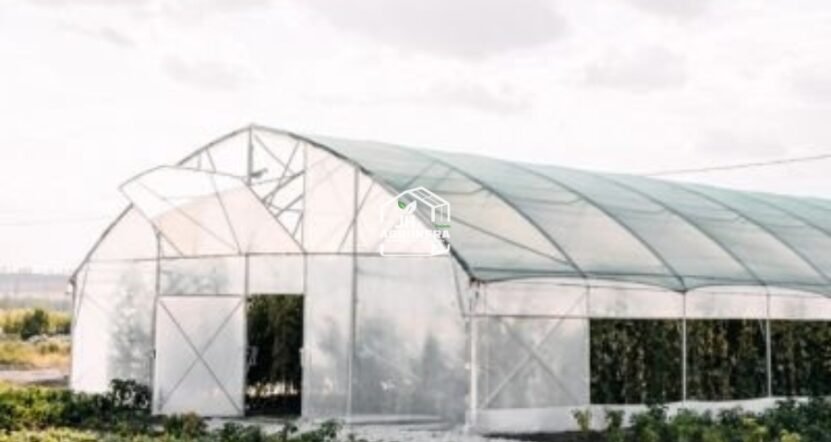

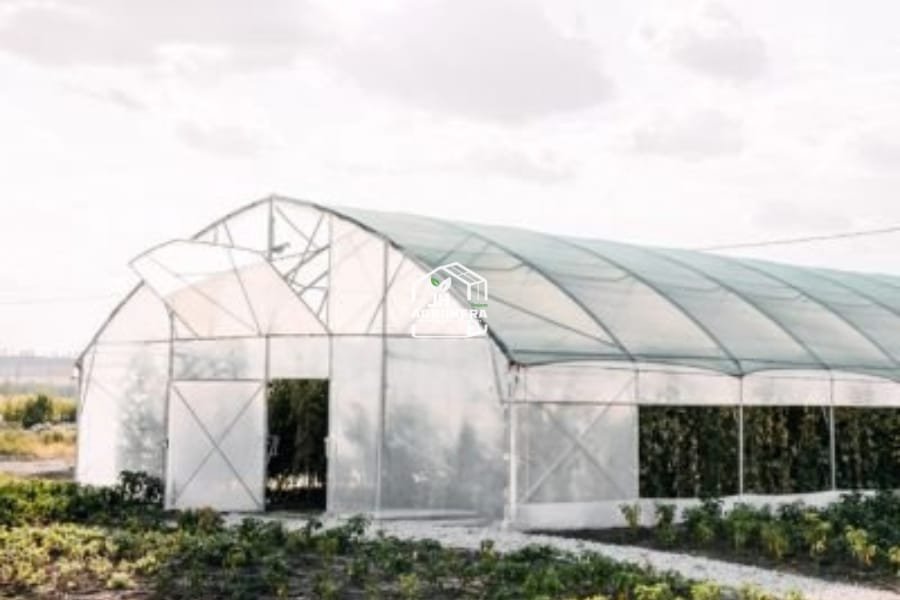

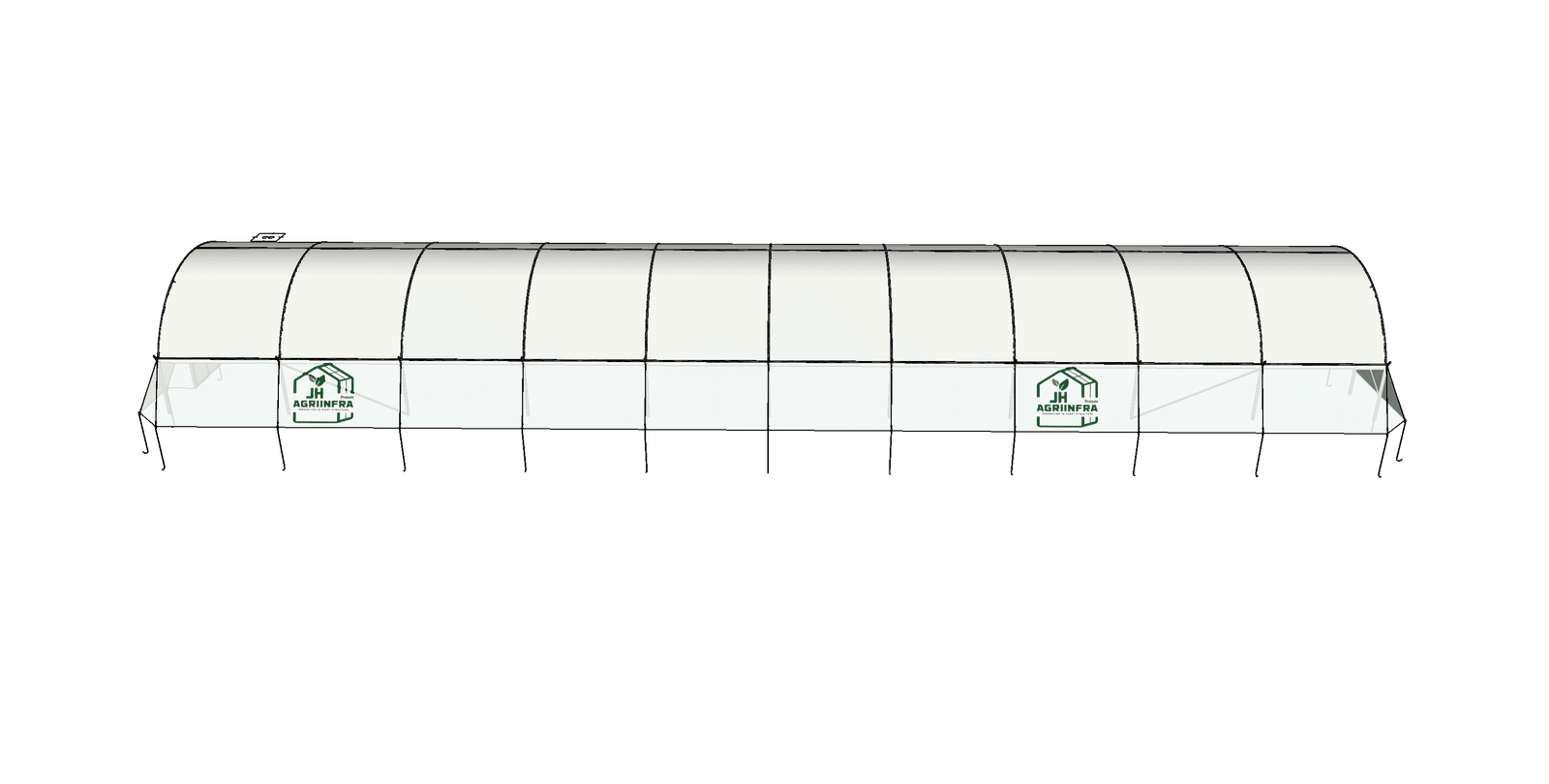

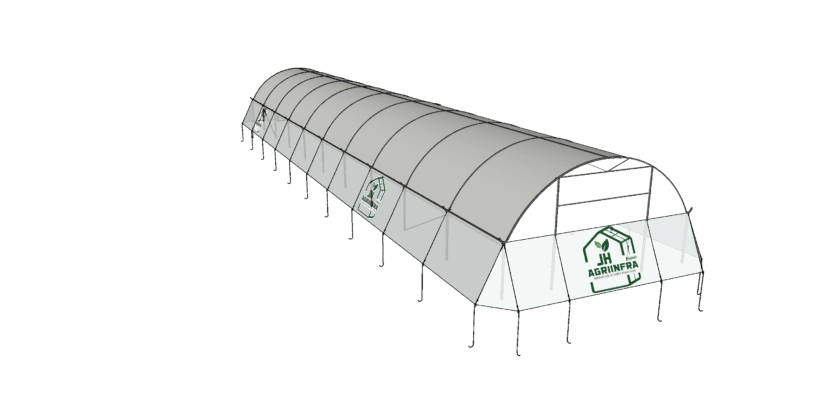

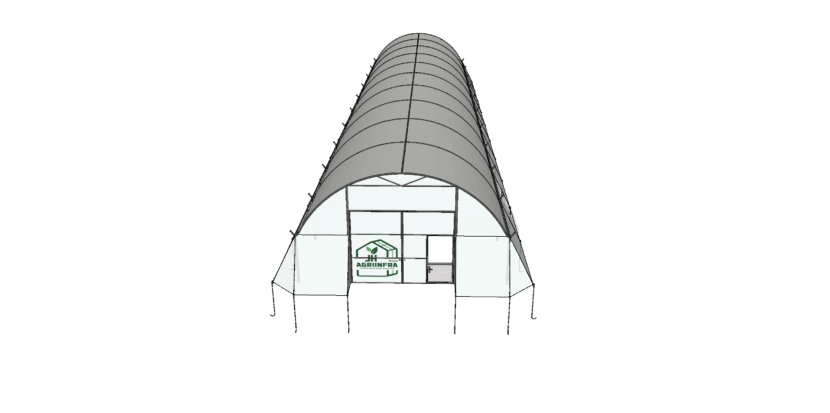

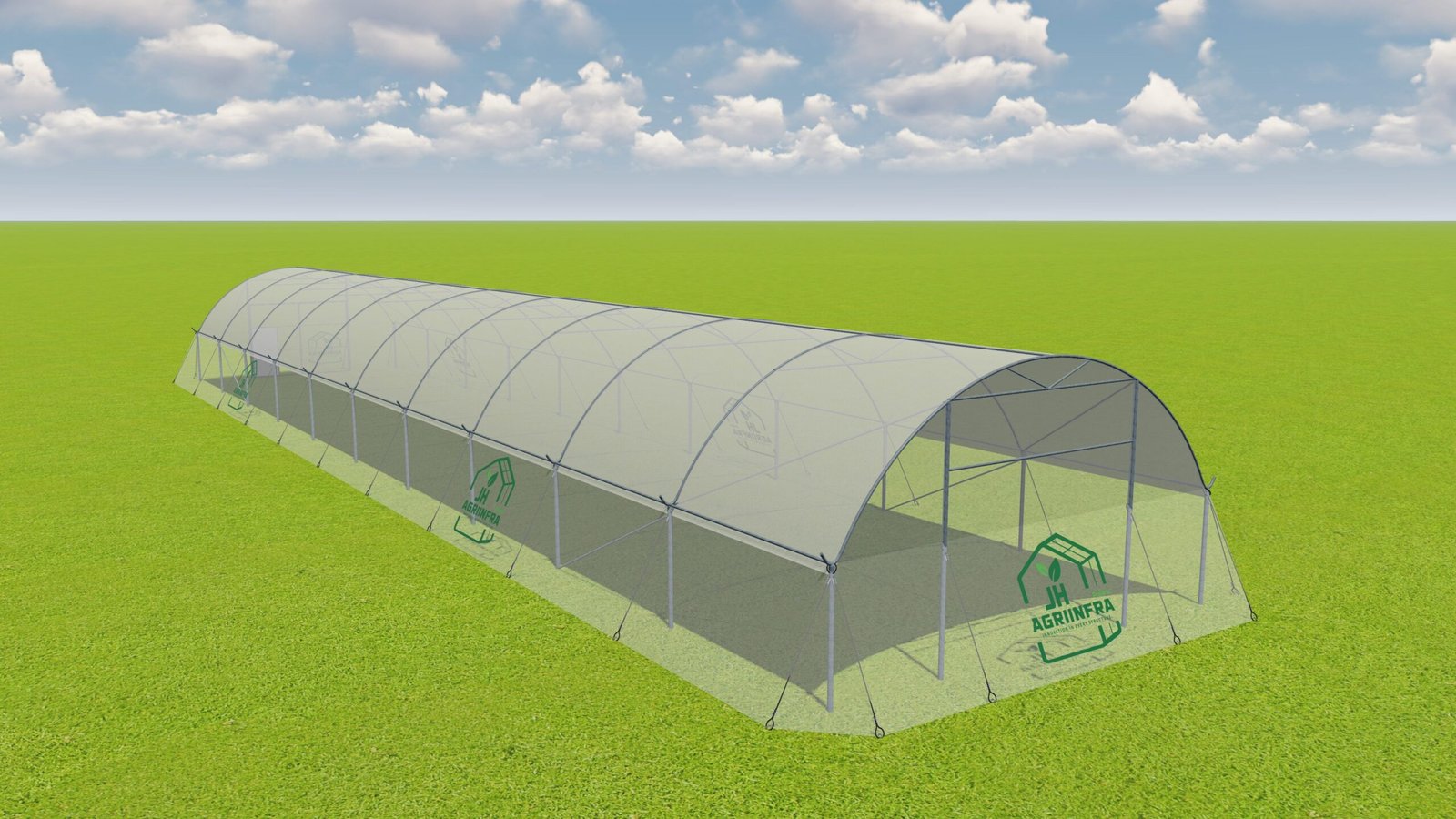

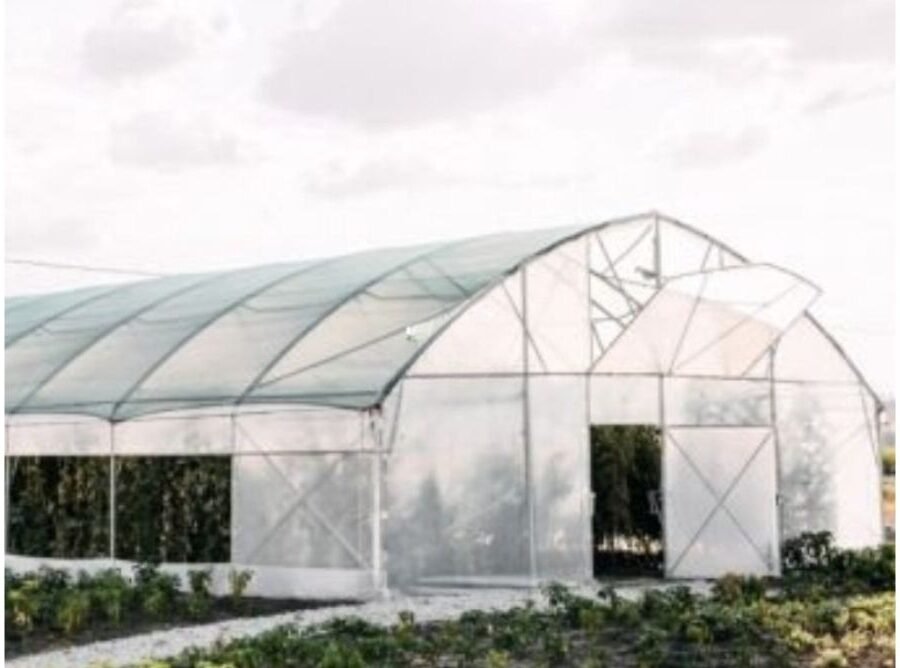

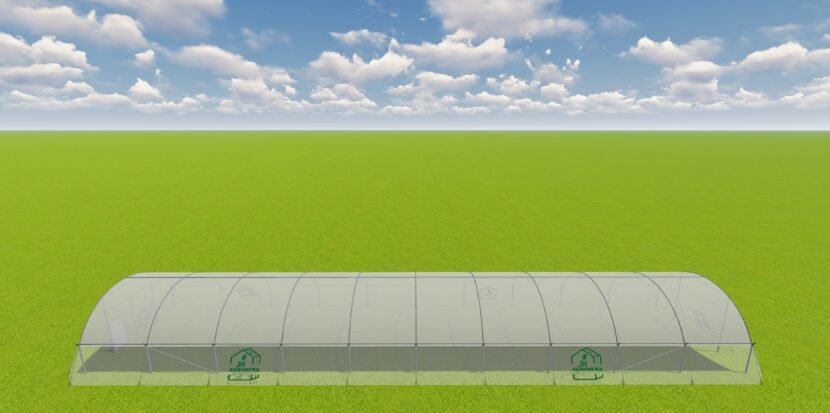

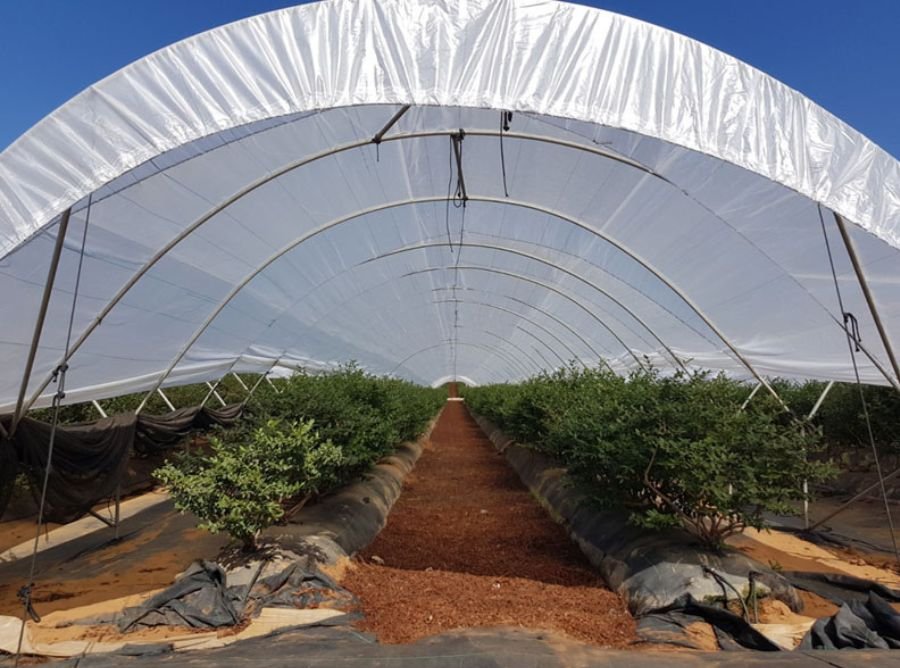

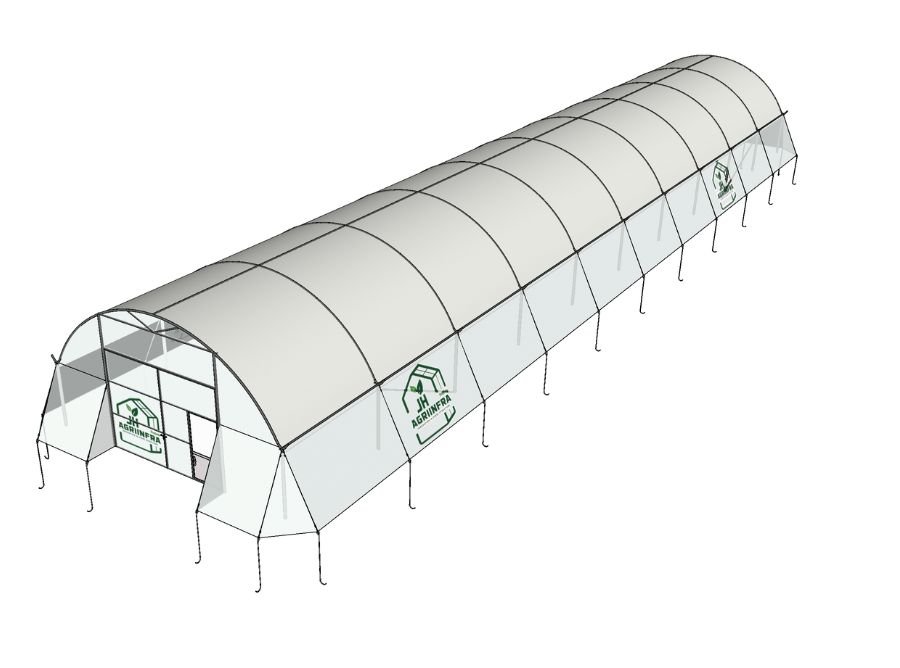

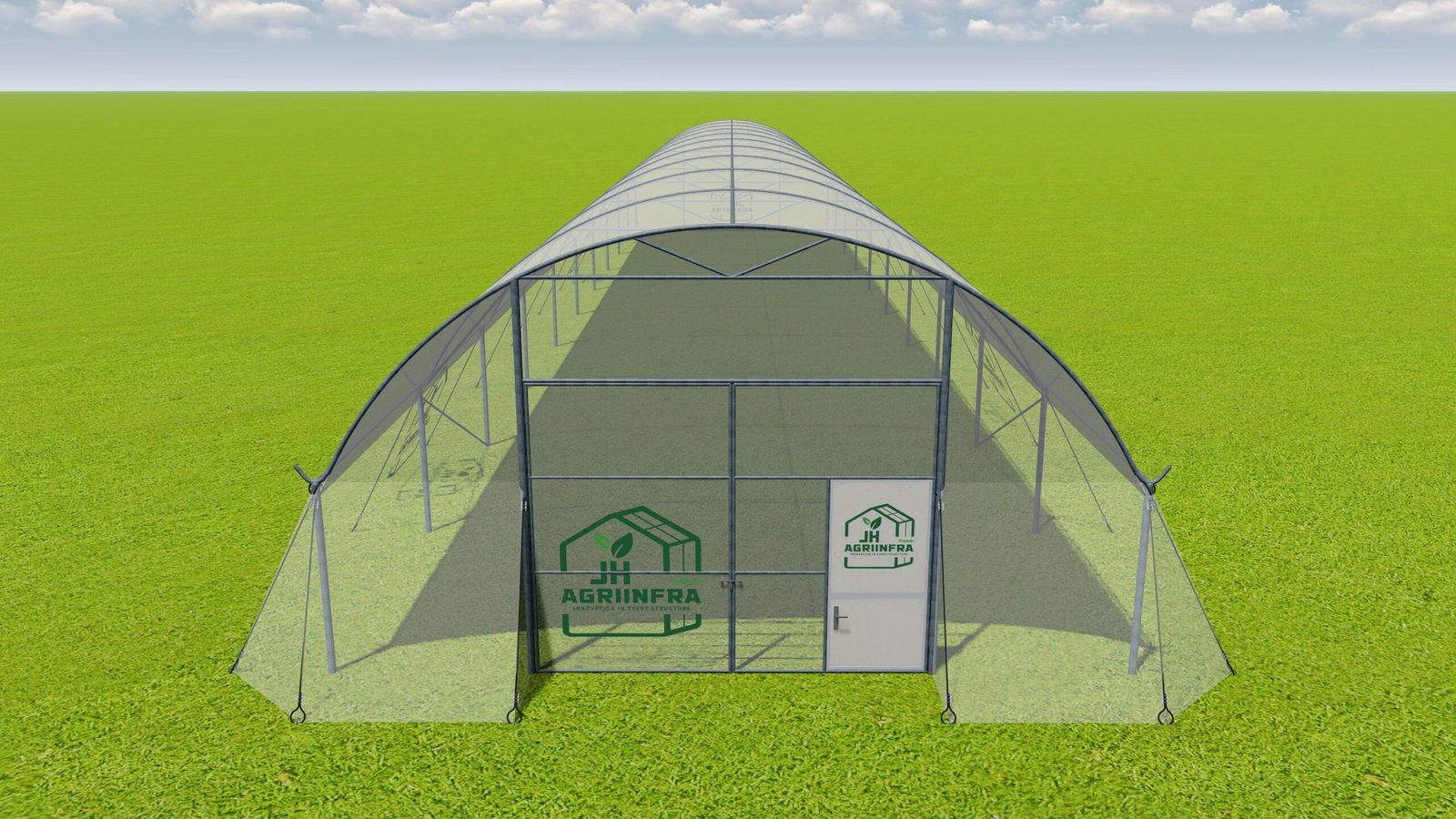

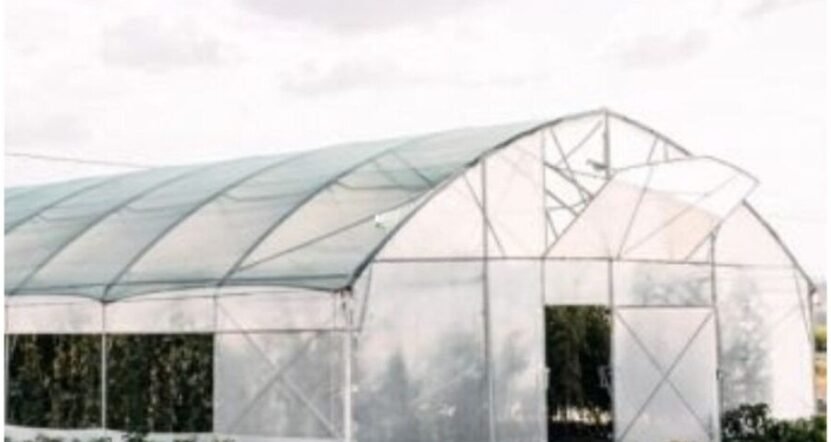

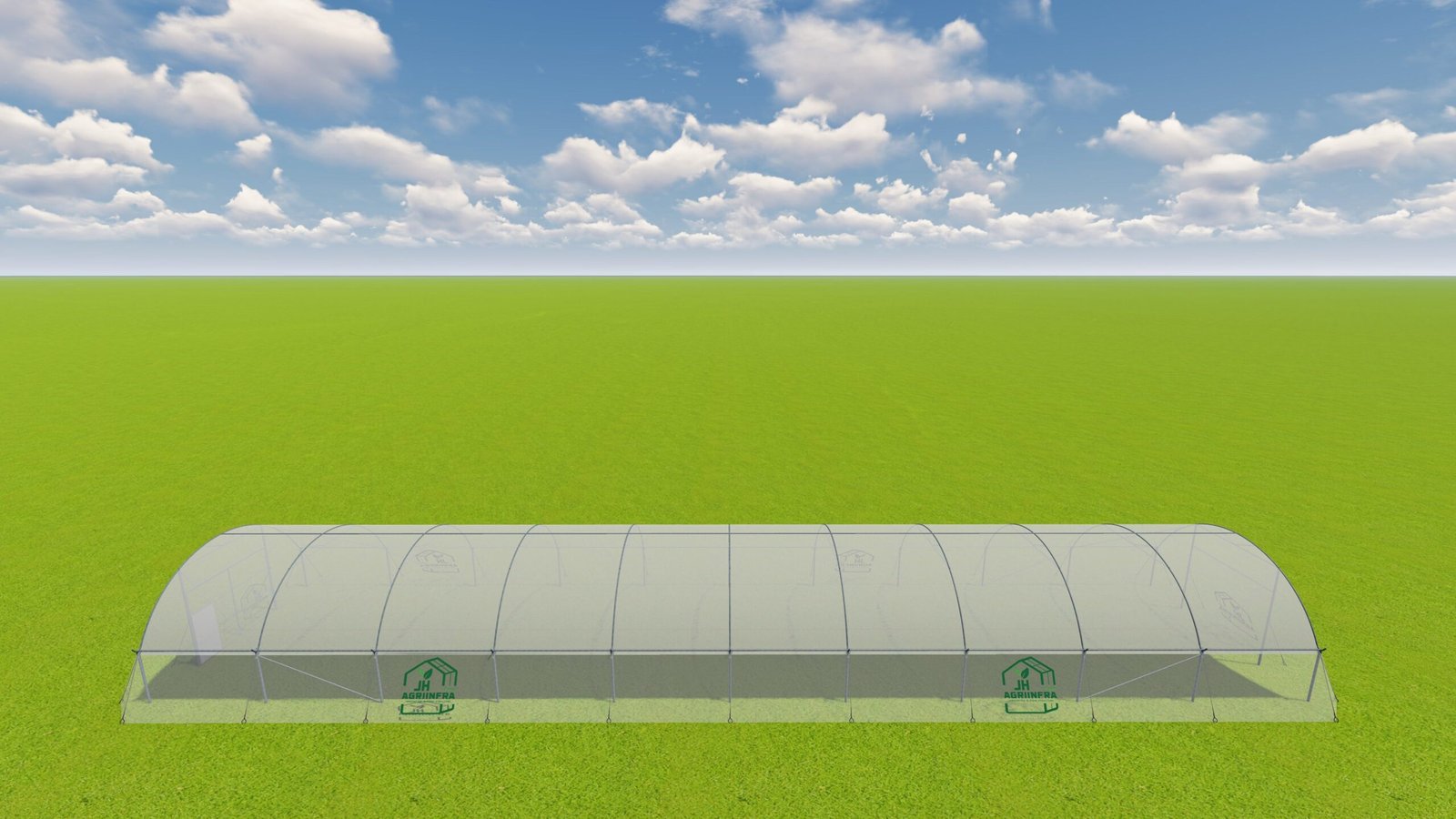

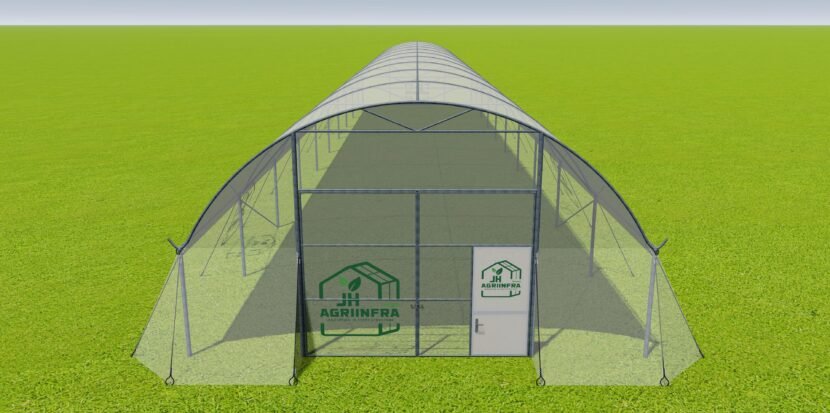

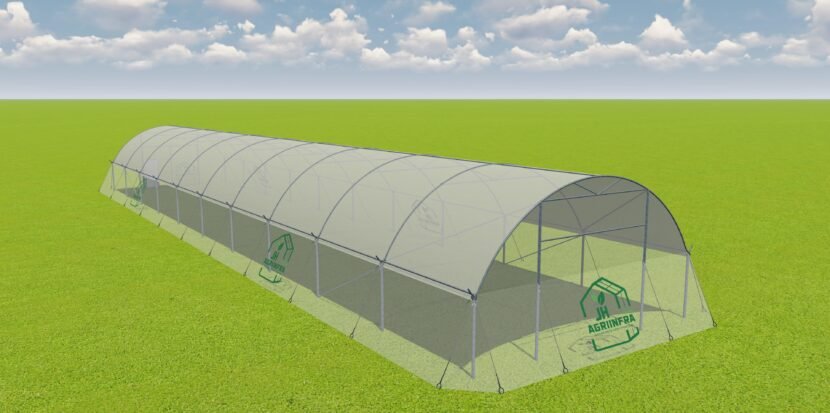

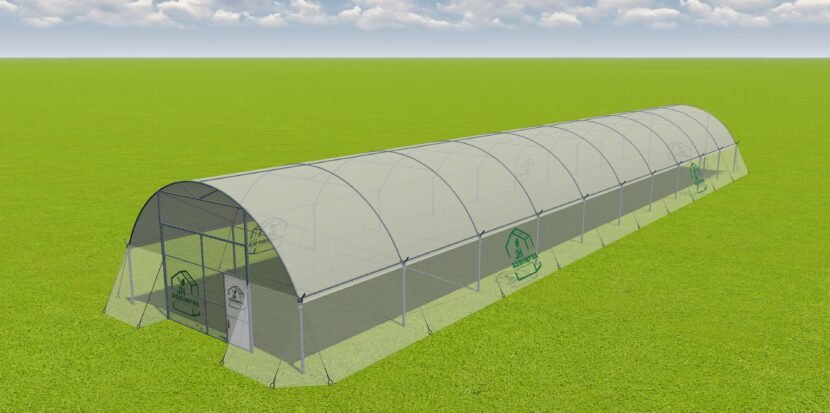

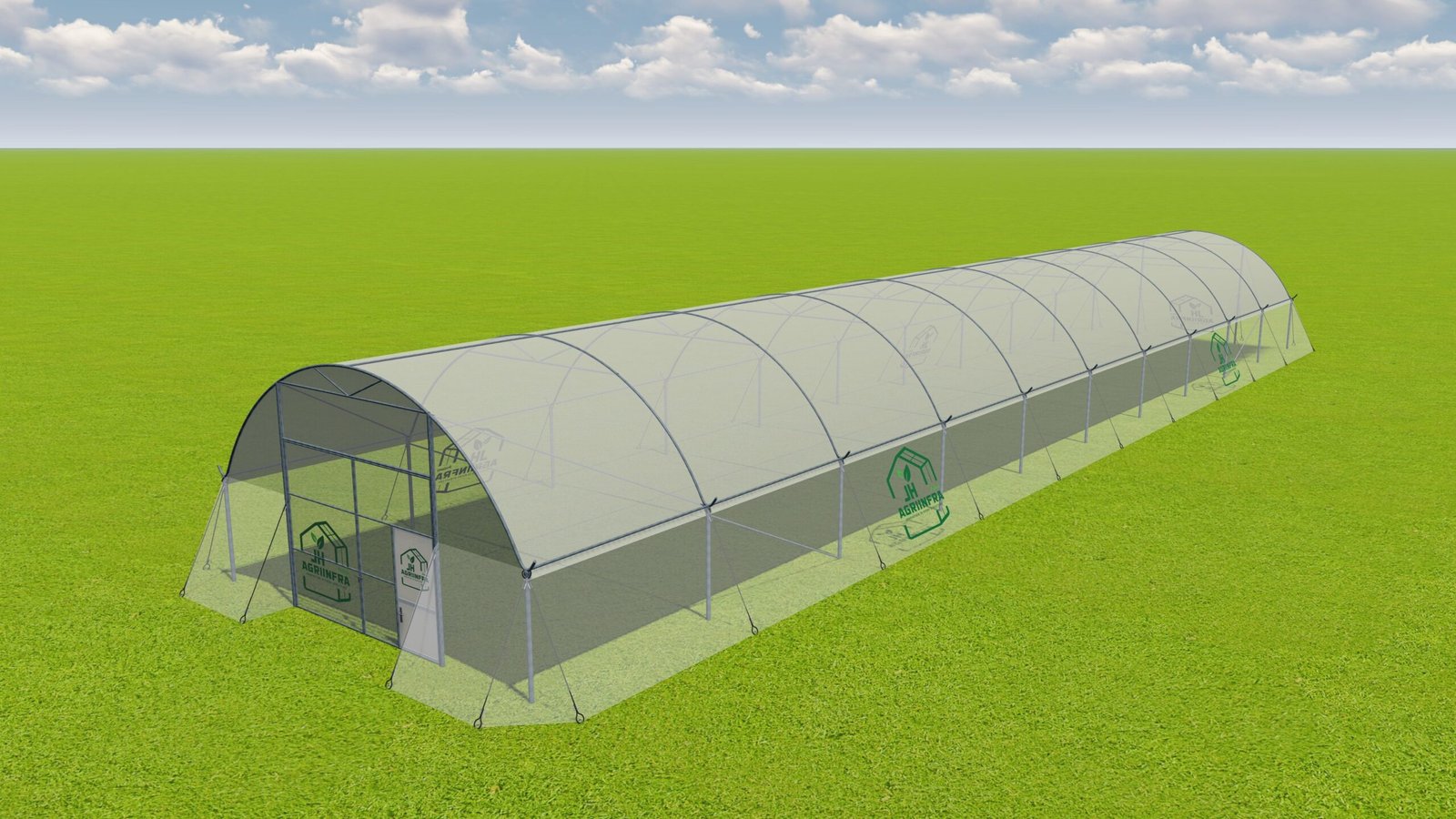

Single Span Poly Tunnel

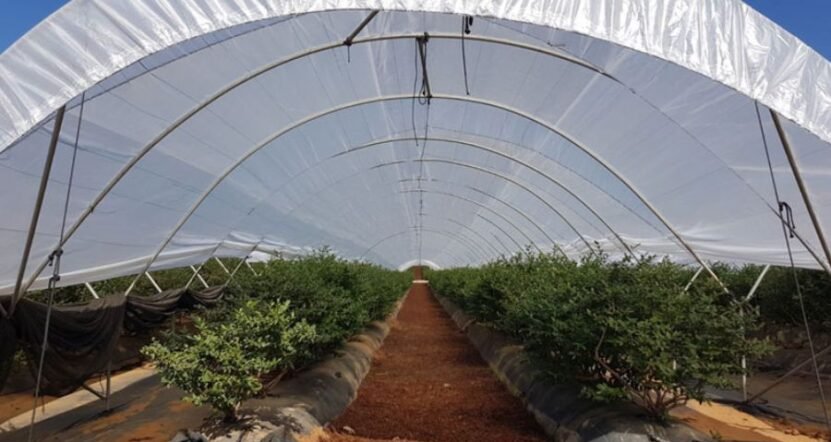

A single-span poly tunnel is a type of greenhouse structure with a single curved or arched span covered by polyethylene or similar materials. These tunnels are designed to create an optimal growing environment for plants by protecting them from adverse weather conditions, pests, and diseases. They are widely used in agriculture for producing vegetables, fruits, flowers, and nursery plants.
Top & Side Covering
Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected
Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected
Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected
Shade Net Options (Sliding Layer)
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected
Technical Specifications
| Structure Frame | 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) |
| Thickness of GI Pipe/s (mm) | 2.00, 2.90 |
| Span (m) x Bay (m) | 8.00 x 4.00, 8.00 x 2.00, 8.00 x 3.00, 9.60 x 4.00 or customized |
| Hockey Corridoor (m) | 2.00 to 3.00 or customized |
| Centre (Top) Height (m) | 3.00 to 6.00 or customized |
| Side (Gutter) Height (m) | 2.00 to 4.00 or customized | Trellising System Capacity (kg) | 25.00 kg/m2 |
| Rainwater Harvesting Feature | Yes |
Innovation and customization are possible per client requirements.
