Saw-Tooth Naturally Ventilated Poly House

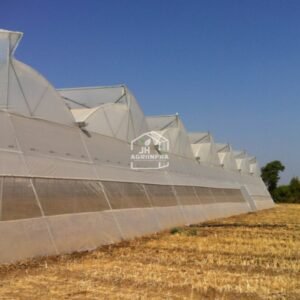

A Saw Tooth Naturally Ventilated Polyhouse (NVPH) is a specialized greenhouse structure designed with a roof configuration resembling the shape of saw teeth. This unique design incorporates alternating ridges and slopes, which optimize natural ventilation by enabling warm air to rise and escape through the elevated ridges while allowing cooler air to flow in through the lower sections. The sawtooth roof design is particularly effective in maintaining a stable microclimate within the polyhouse, ensuring proper air circulation, temperature control, and humidity regulation. This structure is widely used in agriculture for enhancing crop productivity while reducing energy consumption by eliminating the need for mechanical ventilation systems.

Top & Side Covering

200 micron UV stabilized poly film installed on a greenhouse structure, providing durable crop protection and enhanced light diffusion for modern farming and horticulture

Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected

UV and agro chemical protected apron skirting laminated fabric in white and transparent colors, used for greenhouse base covering and structure protection.

Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected

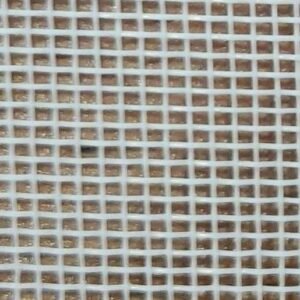

Protective insect netting for greenhouse and Shede Net House

Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected

Shade Net Options (Sliding Layer)

White and green Mono x Mono shade net for controlled sunlight exposure and crop protection

Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

White and green Mono x Tape shade net for agricultural and greenhouse shading

Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Tape x Tape Shade Net – 50% Shading – UV & Agro Chemical Resistant – 100 GSM

Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Aluminate Thermal Shade Net – 50% Shading – UV & Agro Chemical Resistant

Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected

We offer one of the best Saw Tooth Naturally Ventilated Grenhouse (STNVPH) with highest Top Vent.

Technical Specifications

Structure Frame 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron)
Thickness of GI Pipe/s (mm) 2.00, 2.90
Span (m) x Bay (m) 6.40 x 4.00 or customized
Hockey Bay (m) (Side) 2.00 to 2.50 or customized
Centre (Top) Height (m) 6.00 to 7.00 or customized
Side (Gutter) Height (m) 3.00 to 5.00 or customized
Top Vent Opening (m) 2.00 or customized
Side Vent Opening (m) 2.00 to 4.00 or customized
Trellising System Capacity (kg) 25.00 kg/m2
Rainwater Harvesting Feature Yes

Innovation and customization are possible per client requirements.

Sections

Saw-Tooth Naturally Ventilated Greenhouse Inner Section

Inner Section

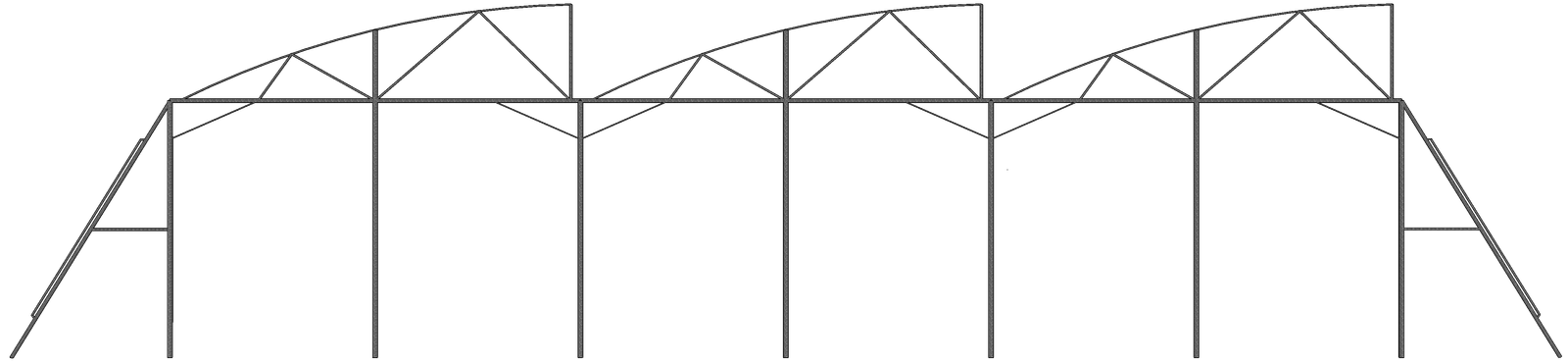

Outer Section

FAQ

It is commonly used in tropical and subtropical regions where natural ventilation is crucial for maintaining optimal growing conditions.
Yes, it is designed to withstand wind, rain, and moderate snowfall, but the structural strength should be tailored to local weather conditions.
It is ideal for vegetables, flowers, and high-value crops such as tomatoes, capsicum, cucumbers, and roses.
NVPH has a simple sloped or curved roof, while STNVPH features a saw-tooth roof design with alternating ridges and slopes for better ventilation. STNVPH offers superior natural ventilation due to its unique roof design, which promotes efficient airflow.

Brochure Download

Please download our Brochure to see specific data of the service and how we work.

We are here for you. Get in Touch!

For Indian Farmers

Get Government Subsidies & Low-Interest Funds for Your Agricultural Projects!

 50% Subsidy from the National Horticulture Board &  3% Interest Rate under the Agriinfra Funds Scheme
