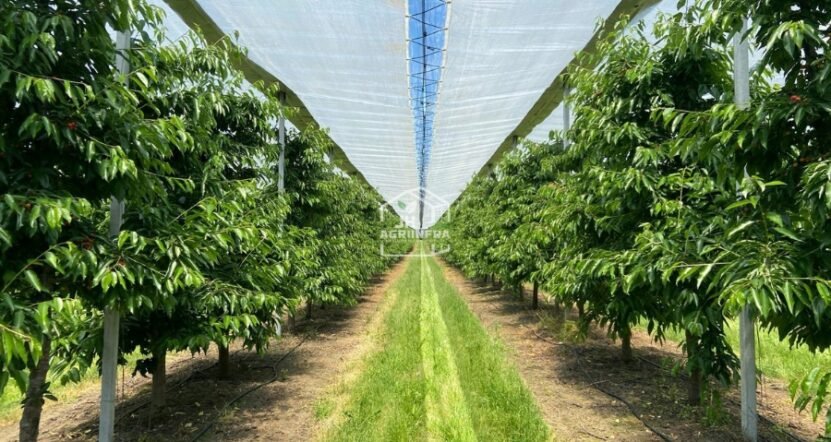

Rain Protection System for Cherry

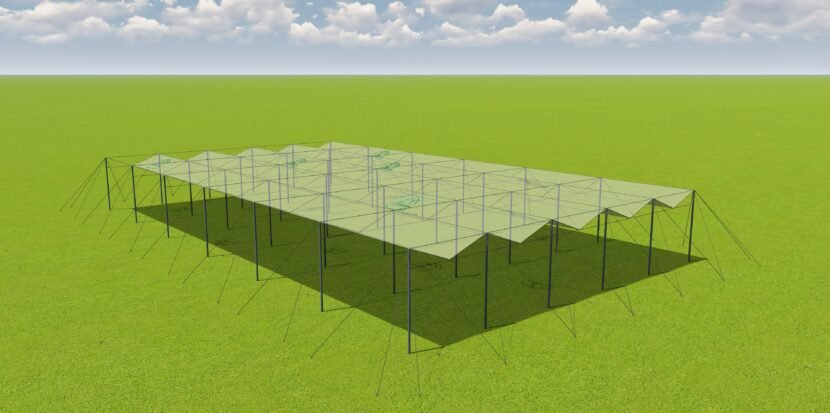

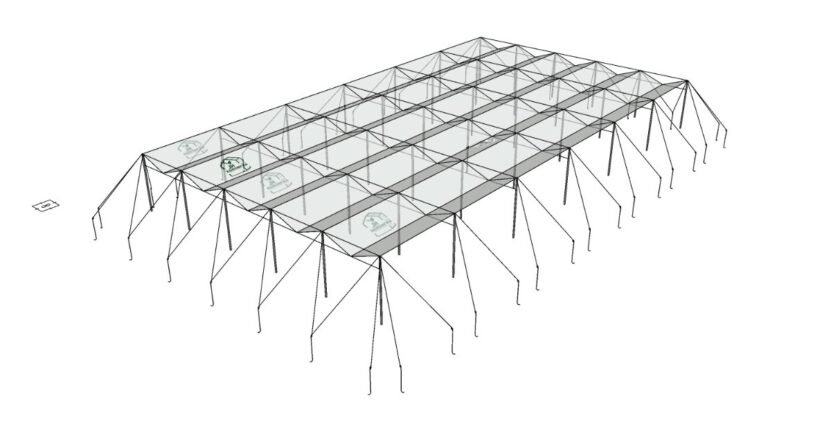

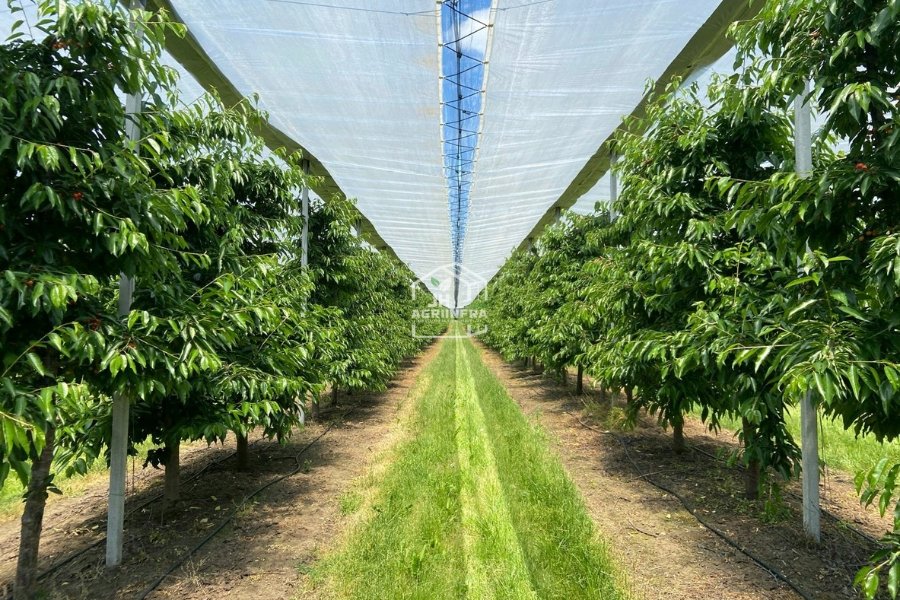

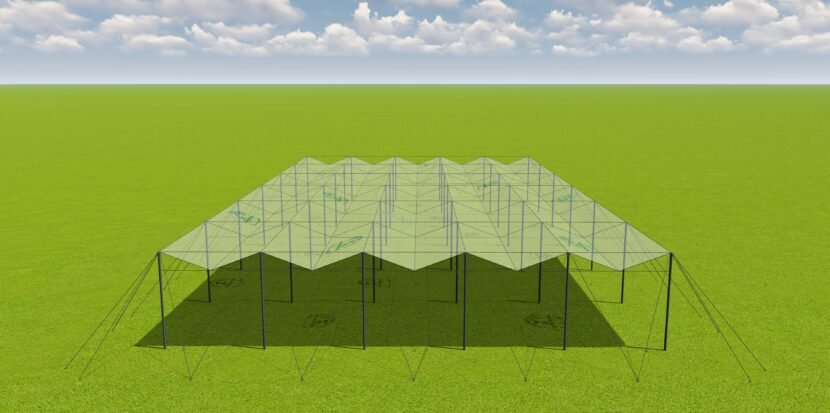

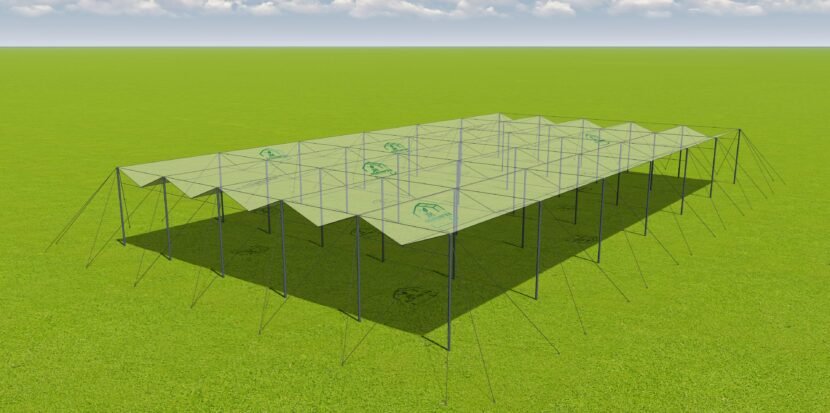

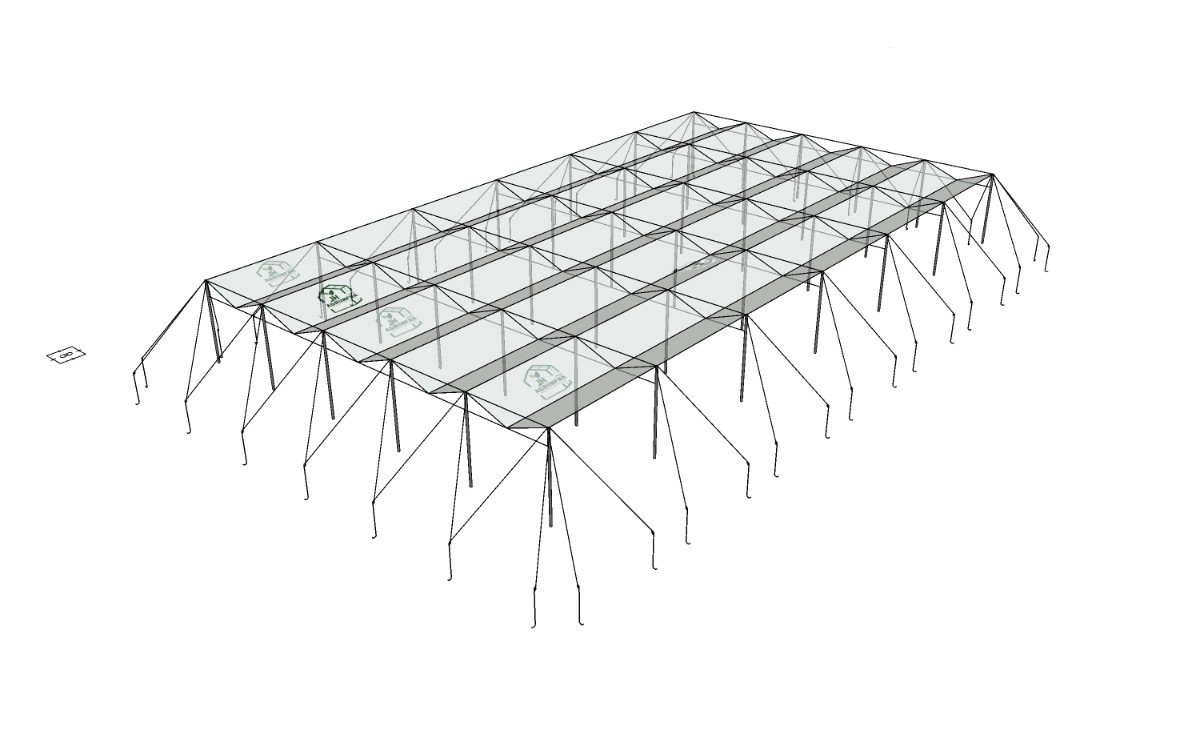

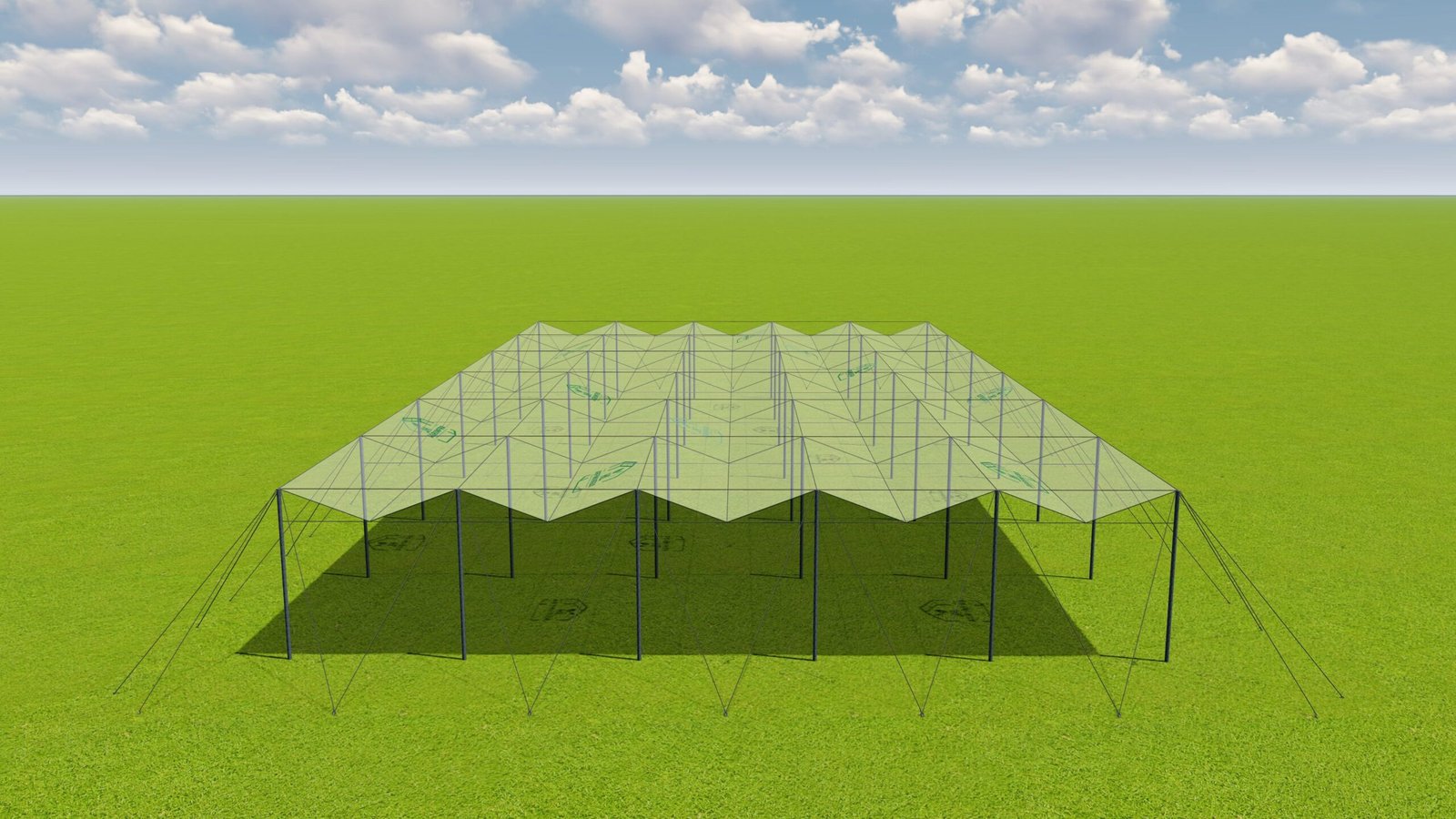

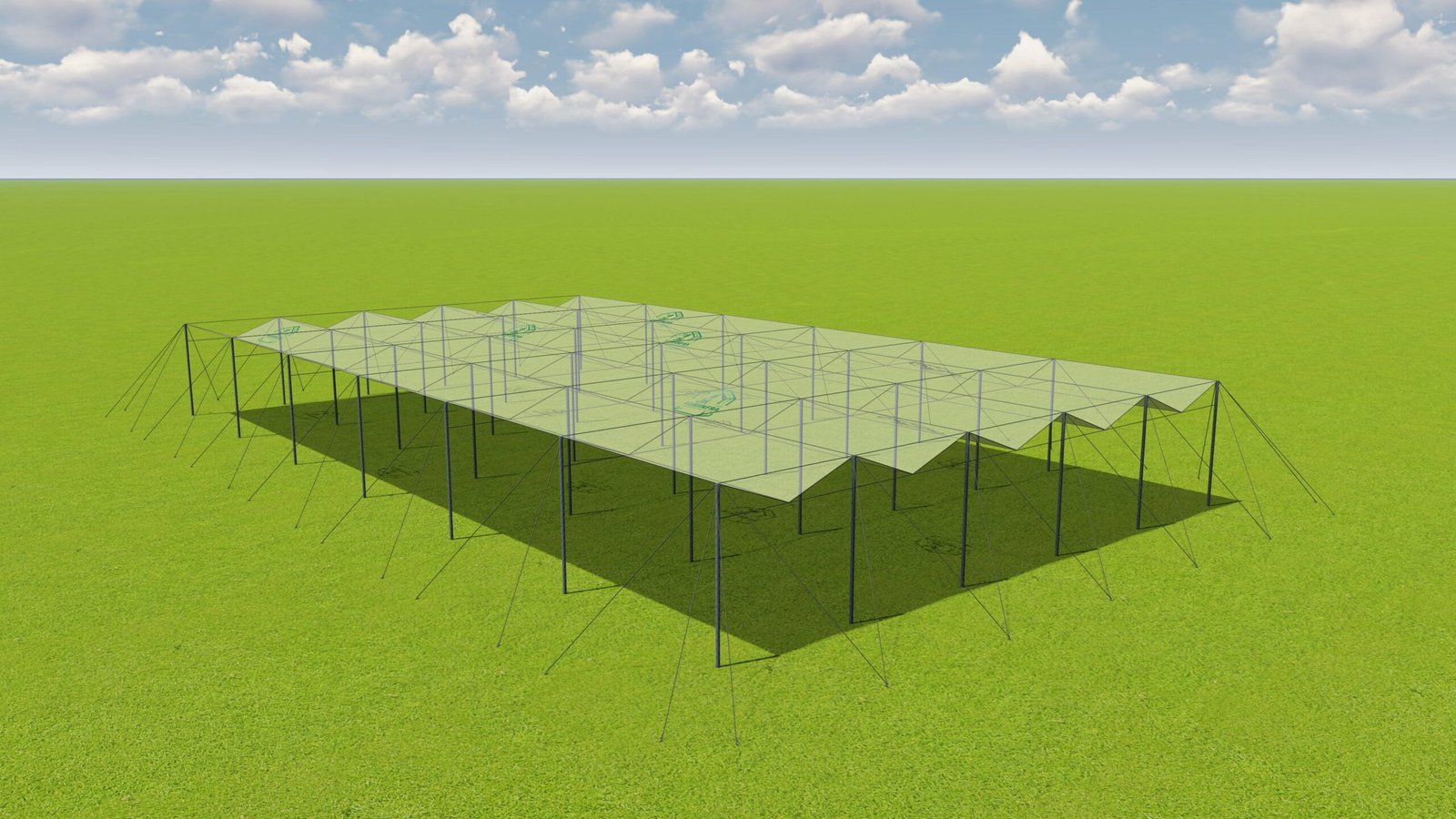

An “A” Roof Shade Net House (Anti-Rain) is a protective structure designed with an A-shaped roof covered with specialized netting and anti-rain film to shield grape and cherry crops from excessive rain, harsh sunlight, and pests. This structure ensures controlled environmental conditions, reducing the risk of fungal diseases, fruit cracking, and sunburn while promoting optimal growth and yield. It provides enhanced air circulation, maintains adequate humidity, and supports sustainable farming practices for high-quality grape and cherry production

Covering Options

Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected

Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Technical Specifications

Structure Frame	250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) & Wire Rope 1 x 19
Thickness of GI Pipe/s (mm)	2.00, 2.90, 4.30
Span (m) x Bay (m)	7.00 x 6.00 or customized
Height (m)	3.00 to 4.00 or customized
Trellising System Capacity (kg)	Customized²

Innovation and customization are possible per client requirements.

Get Customized Quotation

FAQ

What is an "A" roof shade net house?

It is a shade net house with a triangular or sloped roof structure resembling the letter "A." The design helps in efficient water runoff and minimizes the accumulation of debris or rainwater on the roof.

Why is the anti-rain feature important for grape and cherry cultivation?

Rainwater can cause fungal diseases, cracking of fruits, and reduced fruit quality in crops like grapes and cherries. The anti-rain feature provides protection from such issues.

What type of materials are used for the anti-rain covering?

Materials like UV-stabilized plastic sheets, polycarbonate sheets, or specialized waterproof shade nets are used to provide the anti-rain effect.

How does the "A" roof design benefit grape and cherry farming?

The sloped design ensures quick drainage of rainwater, prevents waterlogging, and provides better sunlight penetration and airflow, crucial for these crops.
