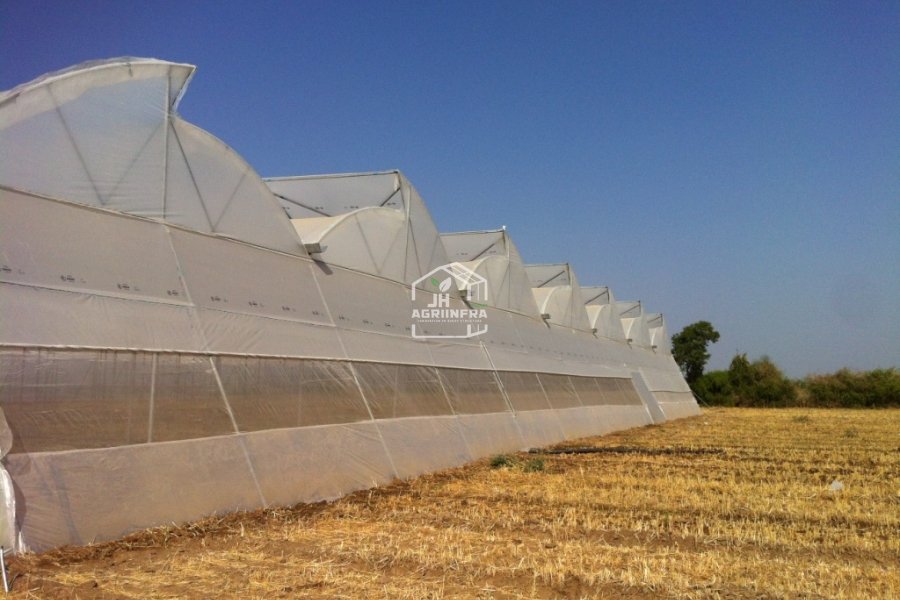

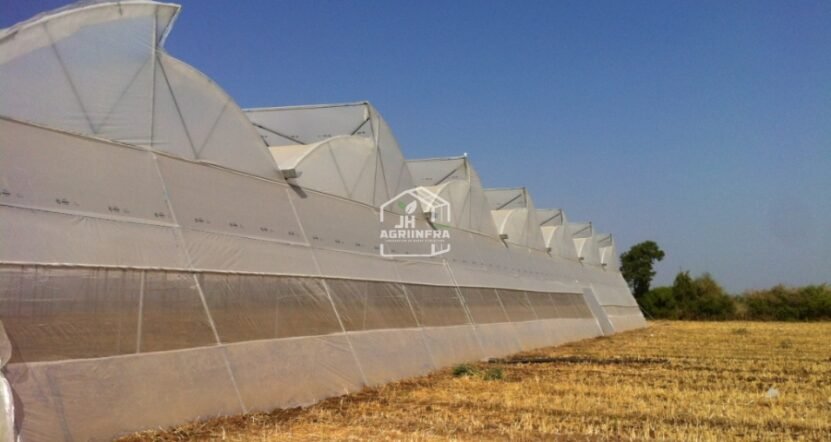

Naturally Ventilated Polyhouse

A Naturally Ventilated Polyhouse (NVPH) is a protected cultivation structure that relies on natural airflow to regulate the internal environment, creating optimal conditions for plant growth without artificial ventilation systems. It operates on ventilation principles like the stack effect, where warm air rises and exits through roof vents, and cross ventilation, where side vents allow cool air to enter. It is widely used in vegetable cultivation and floriculture for efficient, sustainable, and cost-effective farming.

Top & Side Covering

Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected

Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected

Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected

Shade Net Options (Sliding Layer)

Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected

We offer one of the best Naturally Ventilated Polyhouses (NVPH) in India, available with government subsidy support

Technical Specifications

Structure Frame	250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron)
Thickness of GI Pipe/s (mm)	2.00, 2.90
Span (m) x Bay (m)	8.00 x 4.00, 9.60 x 4.00 or customized
Hockey Bay (m)	2.00 to 2.50 or customized
Centre (Top) Height (m)	6.00 to 7.00 or customized
Side (Gutter) Height (m)	3.00 to 5.00 or customized
Top Vent Opening (m)	0.90 to 1.50 or customized
Side Vent Opening (m)	2.50 to 4.00 or customized
Trellising System Capacity (kg)	25.00 kg/m²
Rainwater Harvesting Feature	Yes

Innovation and customization are possible per client requirements.

Get Customized Quotation

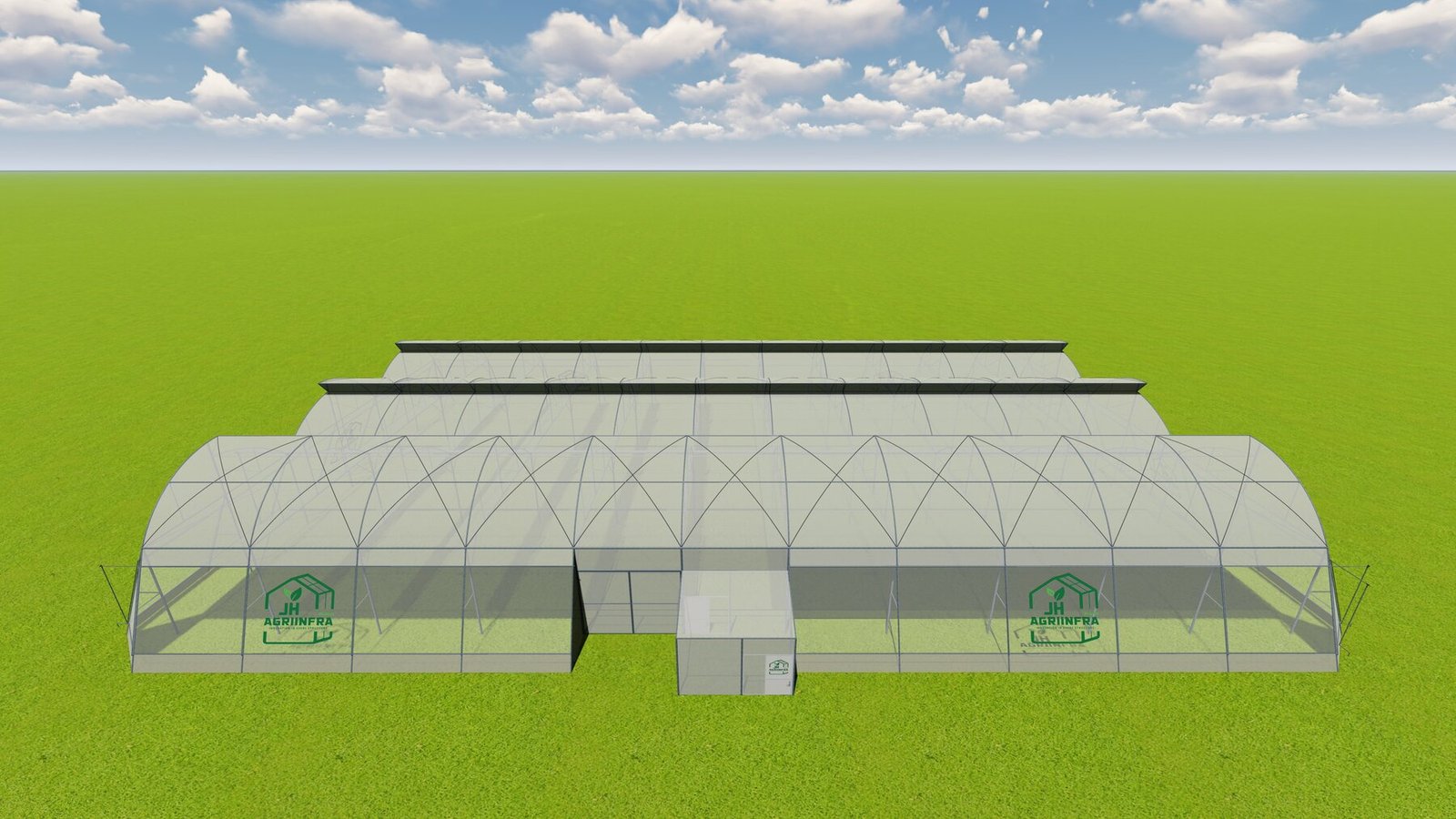

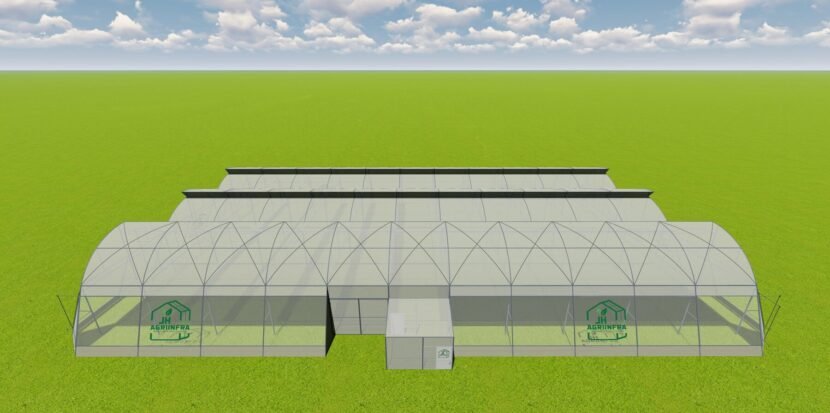

: Looking for the best naturally ventilated polyhouse in Gujarat? 🌿☀️ From high temperatures to heavy monsoon, this model is built for Gujarat’s climate — no fans, no cooling pads, just smart airflow and higher yield. Ideal for vegetables, floriculture, and exotic crops — all while reducing input cost and disease pressure.” 👉 Contact us to know which polyhouse model suits your land and budget!

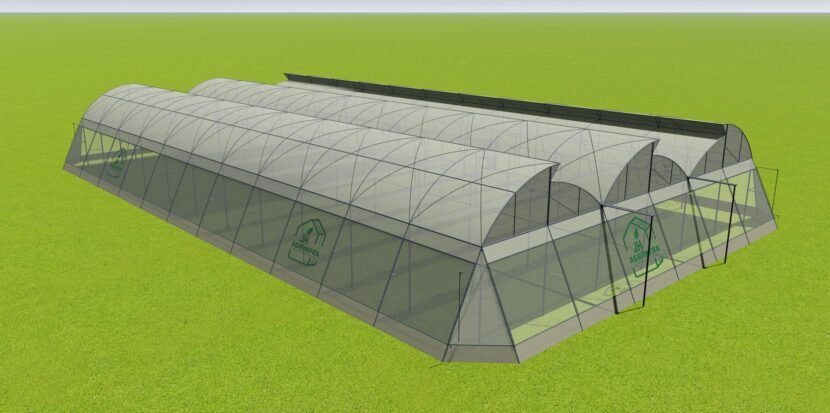

: Best Naturally Ventilated Polyhouse in India

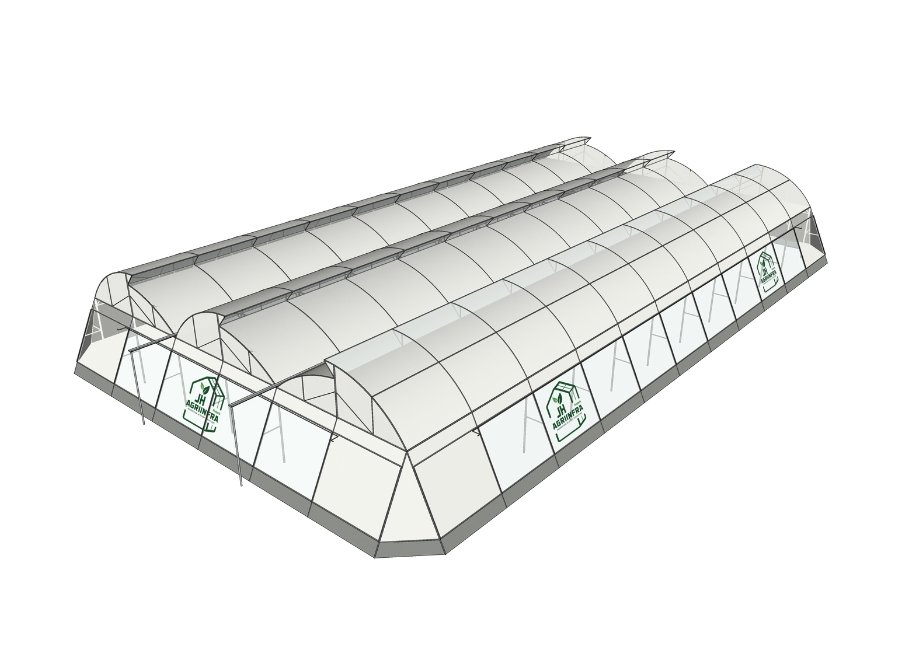

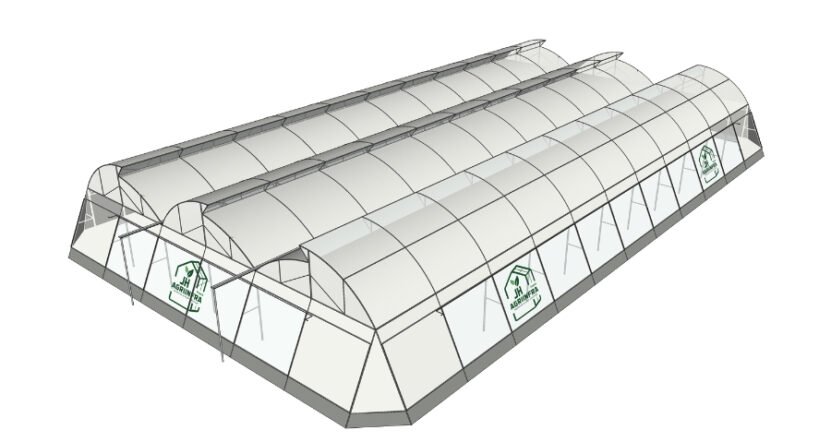

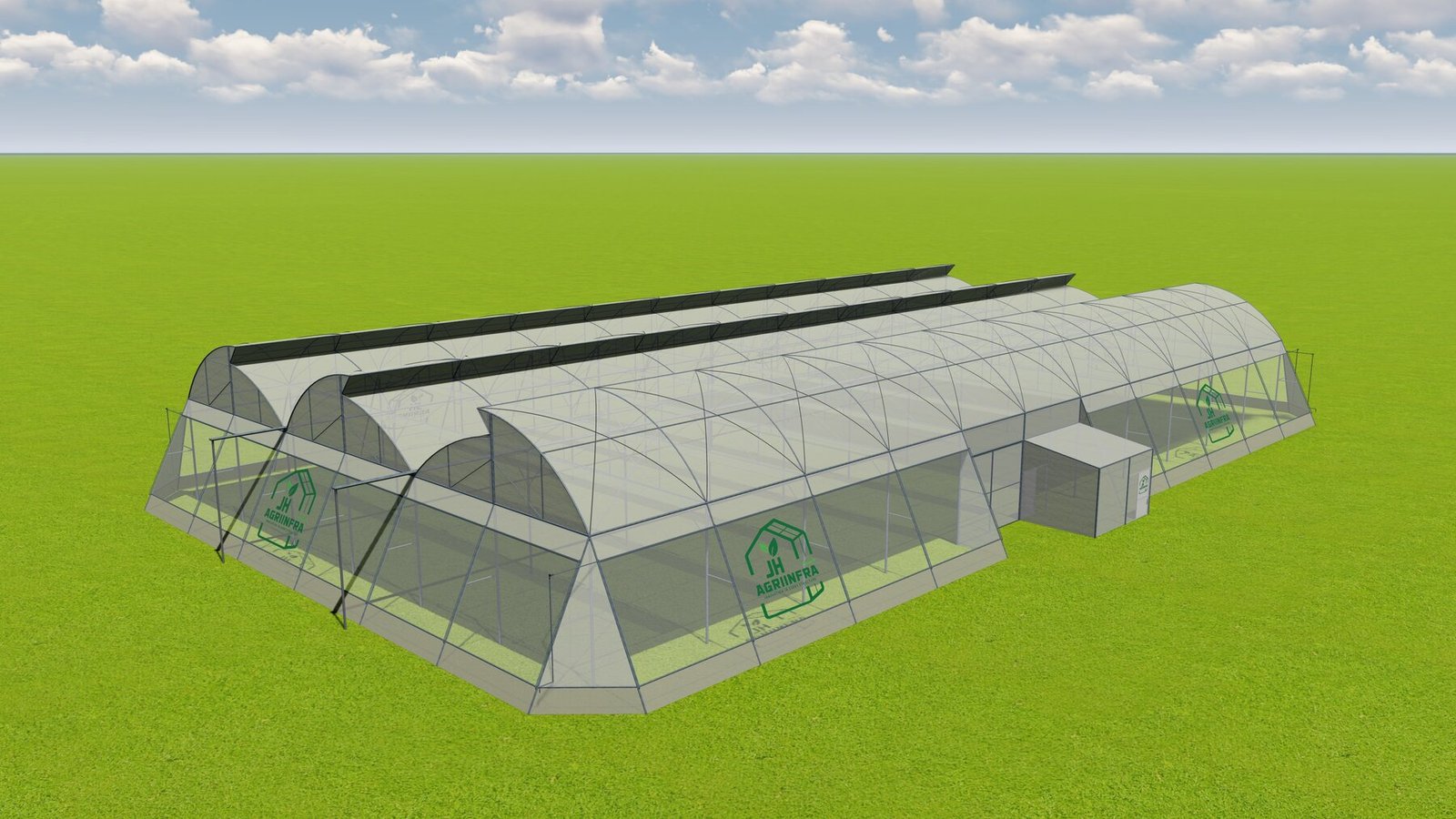

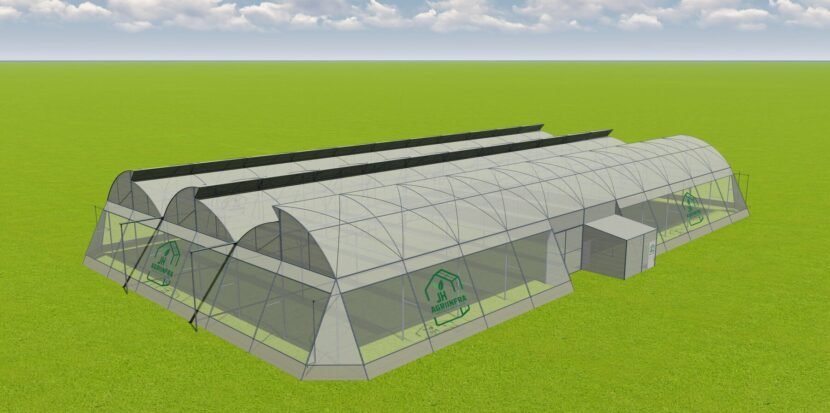

: Polyhouse Farming with Government Subsidy in India

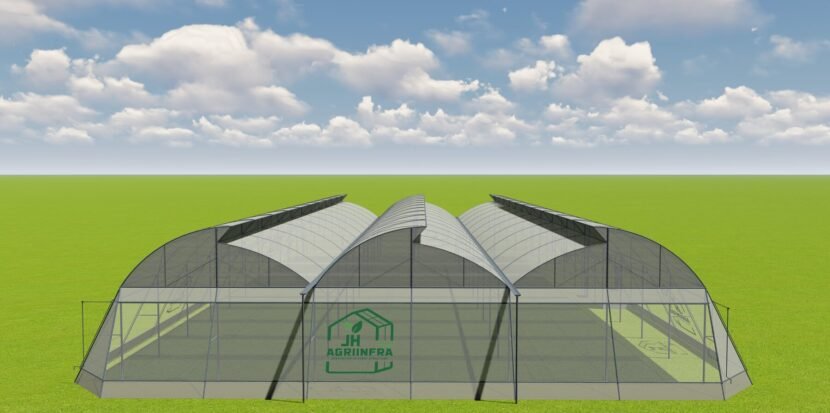

: Advanced Top Vent Greenhouse Structure – Global Standard

Sections

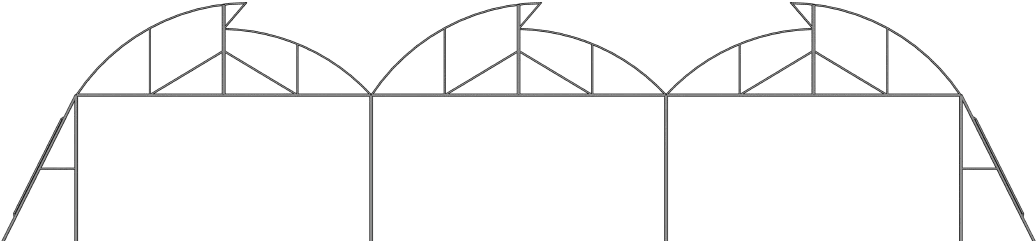

Inner Section

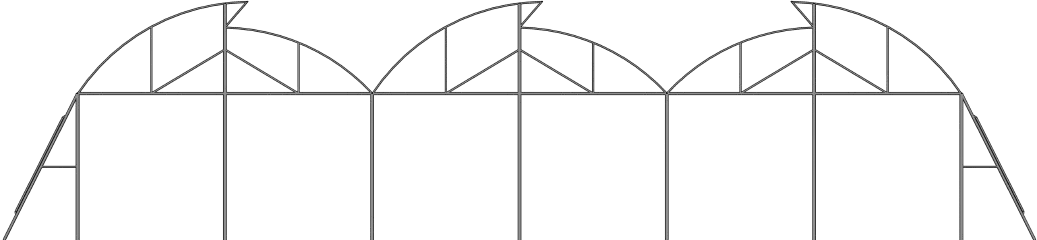

Outer Section

Looking for a Naturally Ventilated Polyhouse (NVPH) in India? We provide top solutions with government subsidy benefits.

FAQ

How does ventilation work in an NVPH?

Ventilation is achieved through roof vents and side vents. The stack effect allows warm air to rise and exit through the roof vents, while cooler air enters through the side vents, ensuring continuous airflow.

What crops can be grown in an NVPH?

NVPH is suitable for a variety of crops, including vegetables, flowers, herbs, and exotic plants that require a controlled and sustainable environment for optimal growth.

What are the benefits of using an NVPH?

NVPHs reduce energy costs, improve microclimate control, protect crops from harsh weather, and minimize pest infestations, making them efficient and sustainable for horticulture and floriculture.

What factors affect the performance of an NVPH?

The performance depends on the polyhouse orientation, vent design, local climate, and the use of insect-proof screens, all of which influence airflow, temperature regulation, and crop health.
