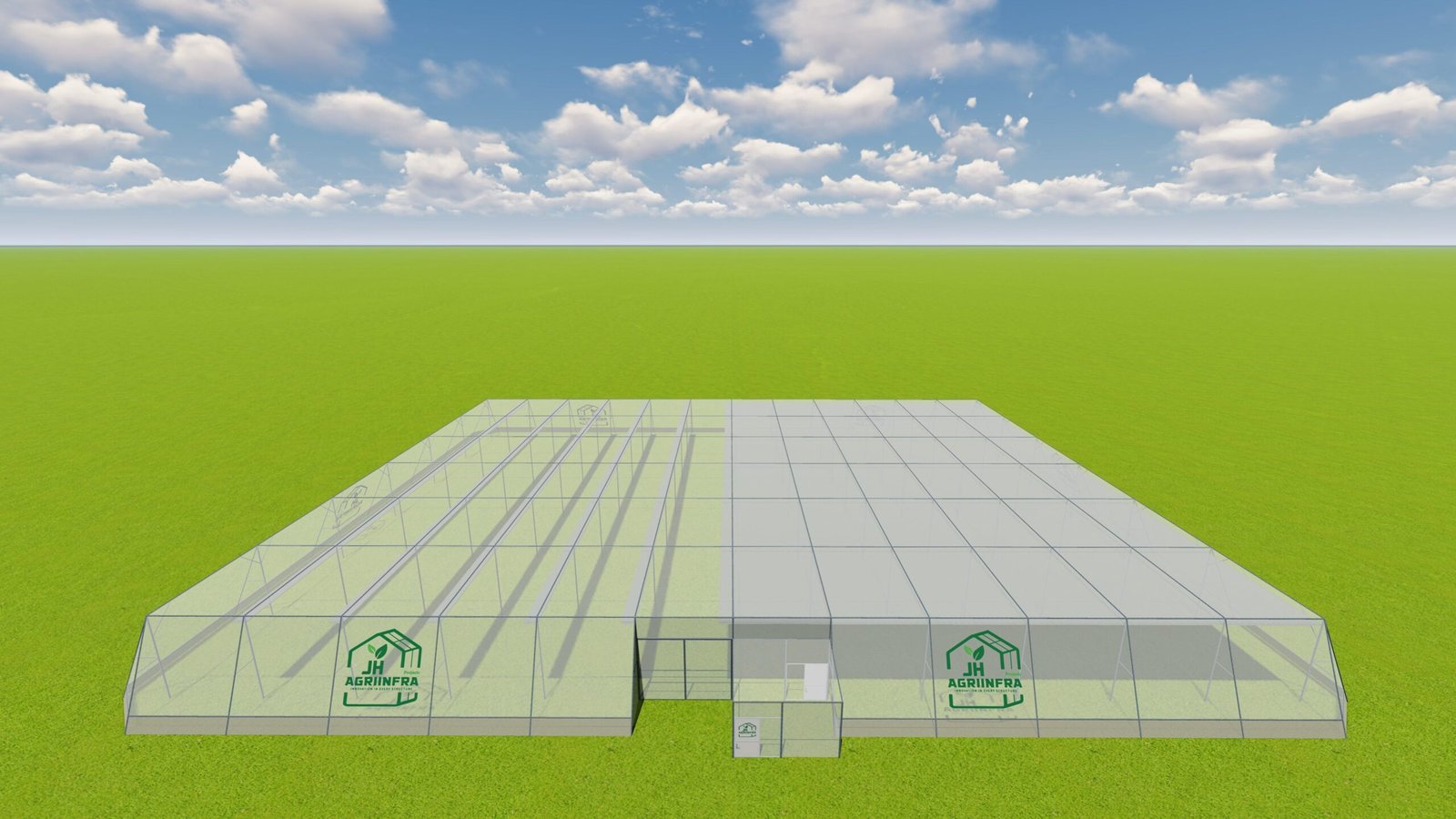

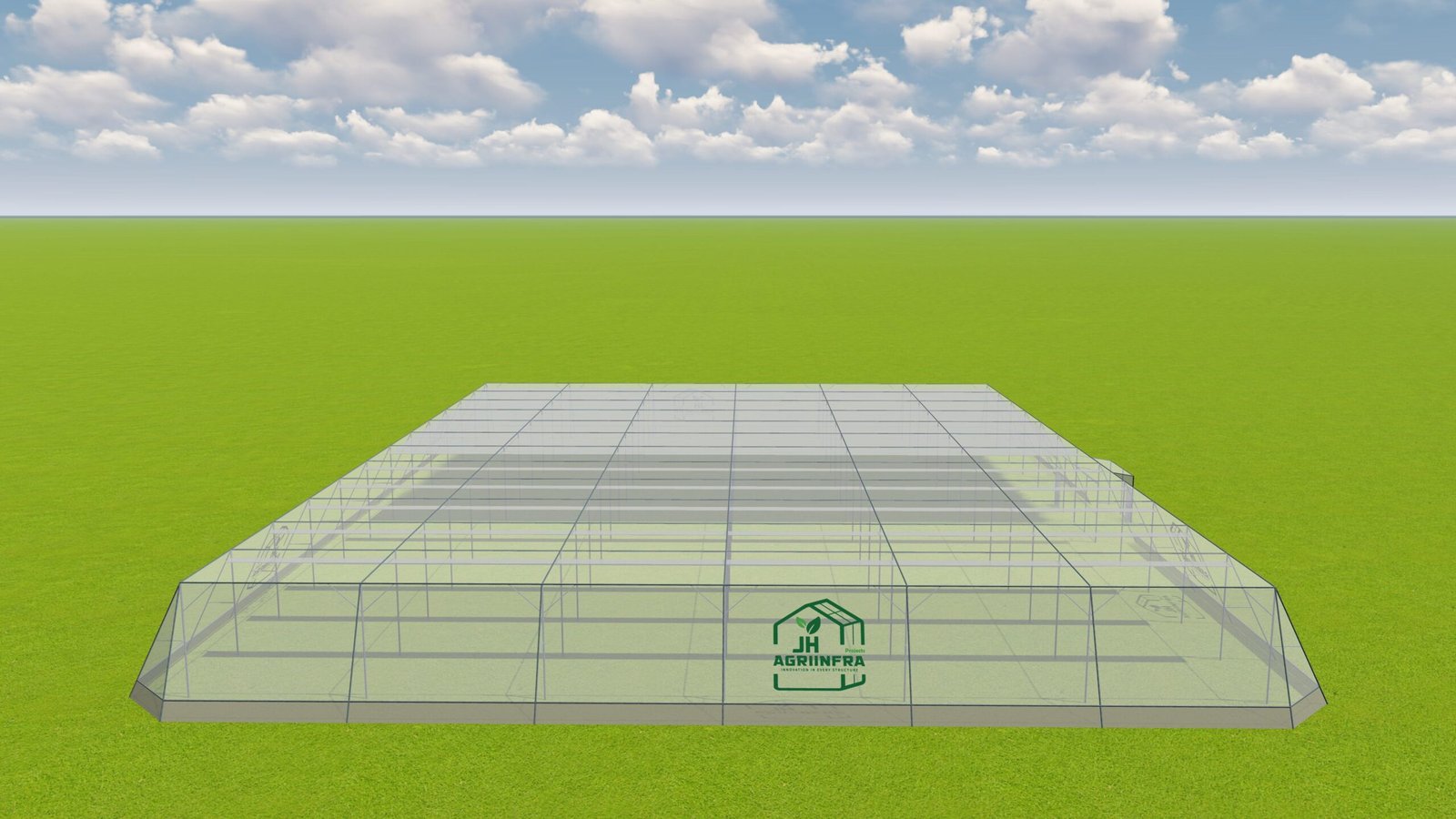

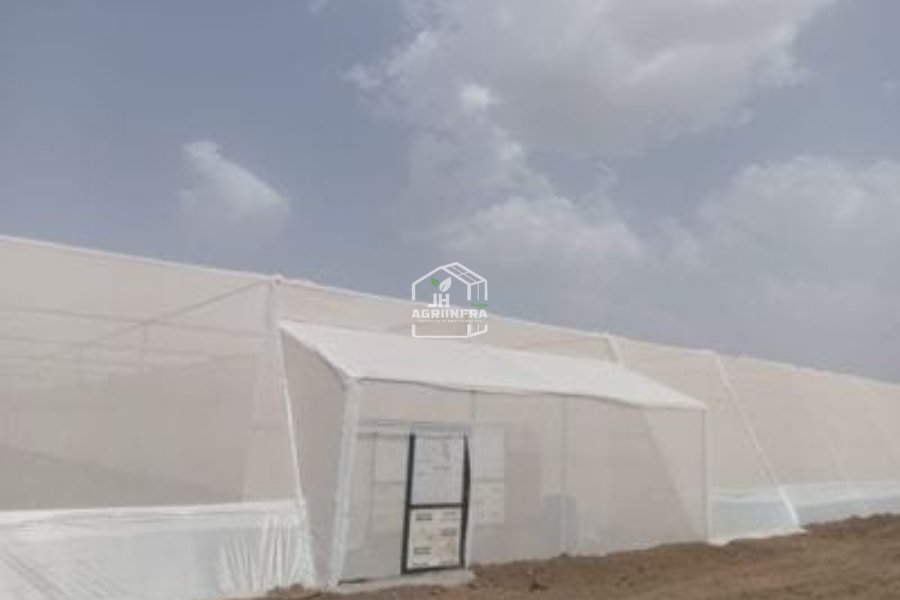

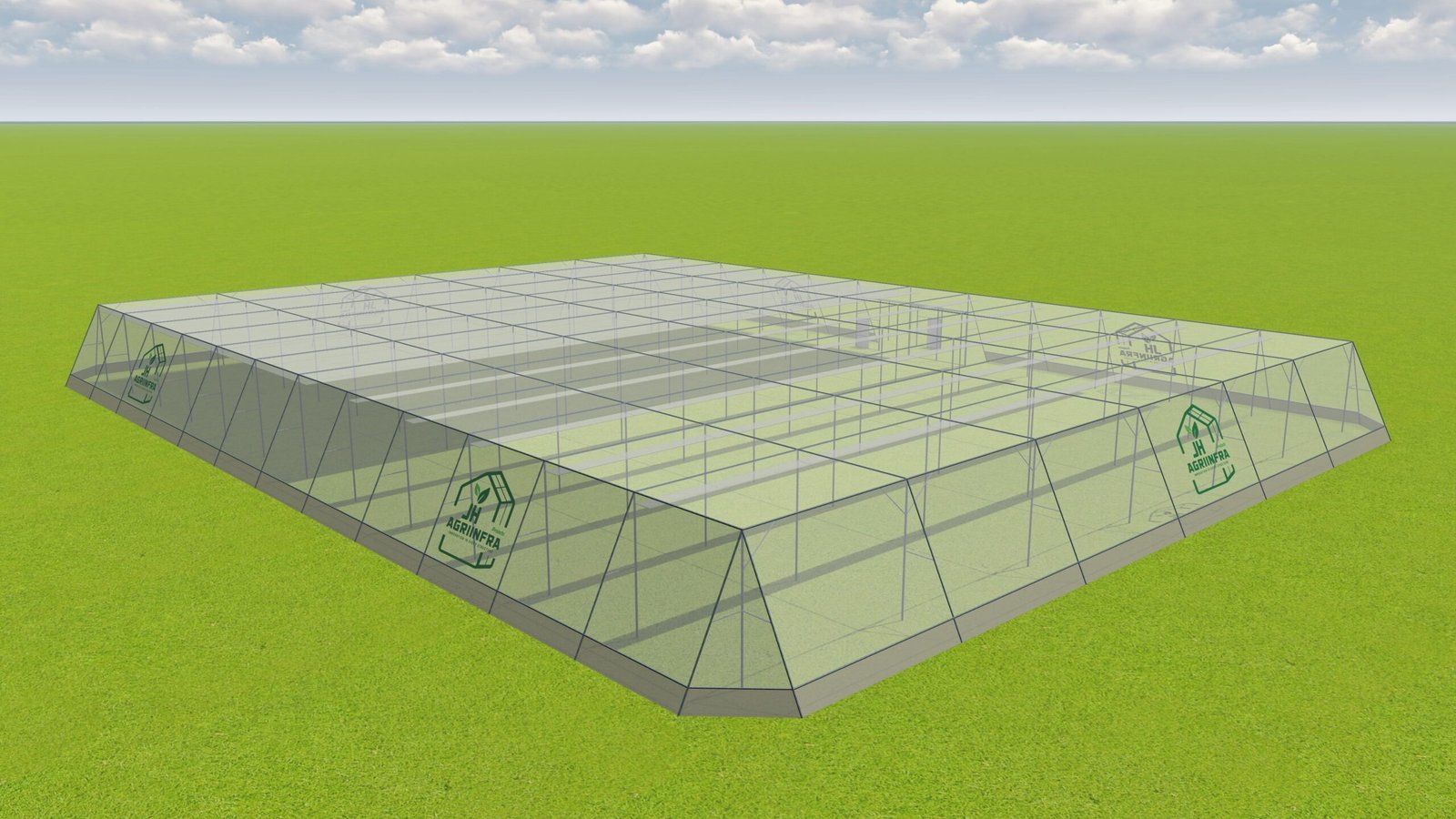

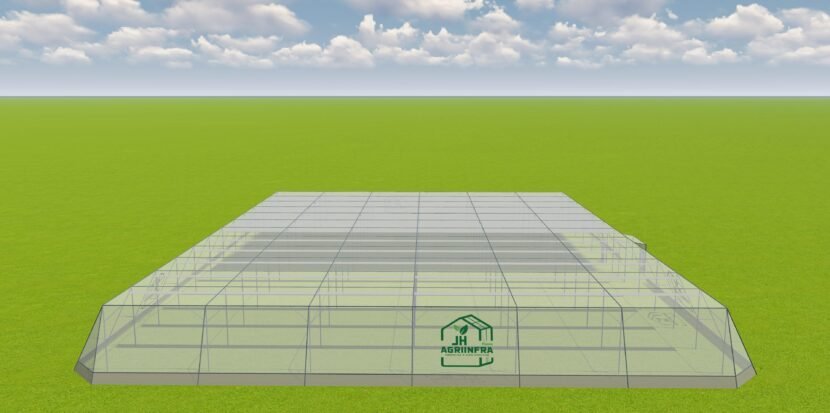

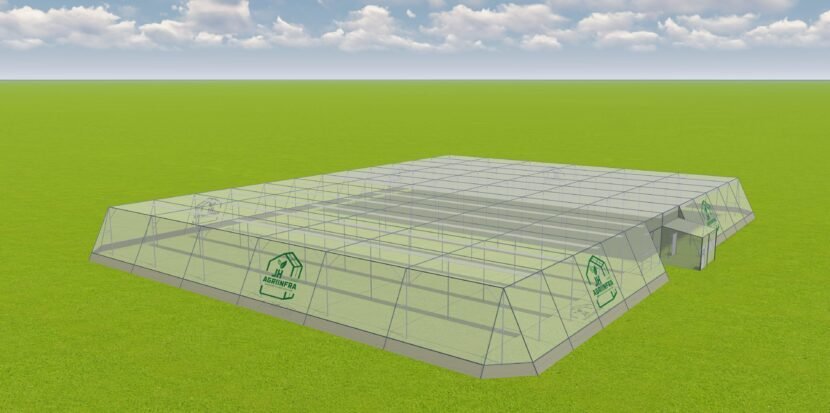

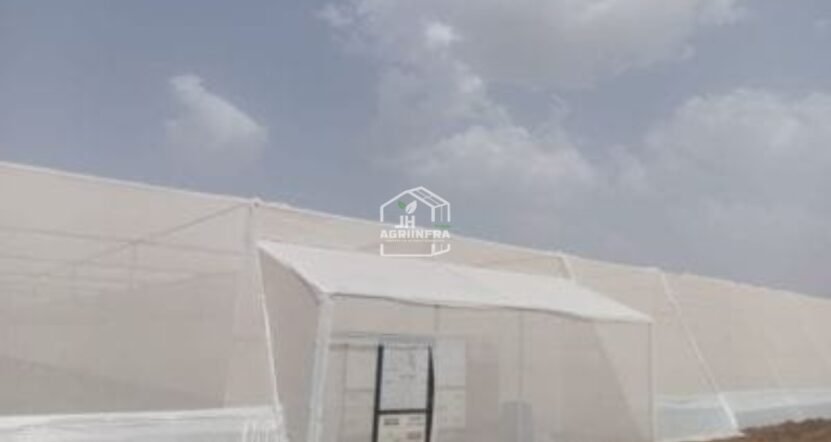

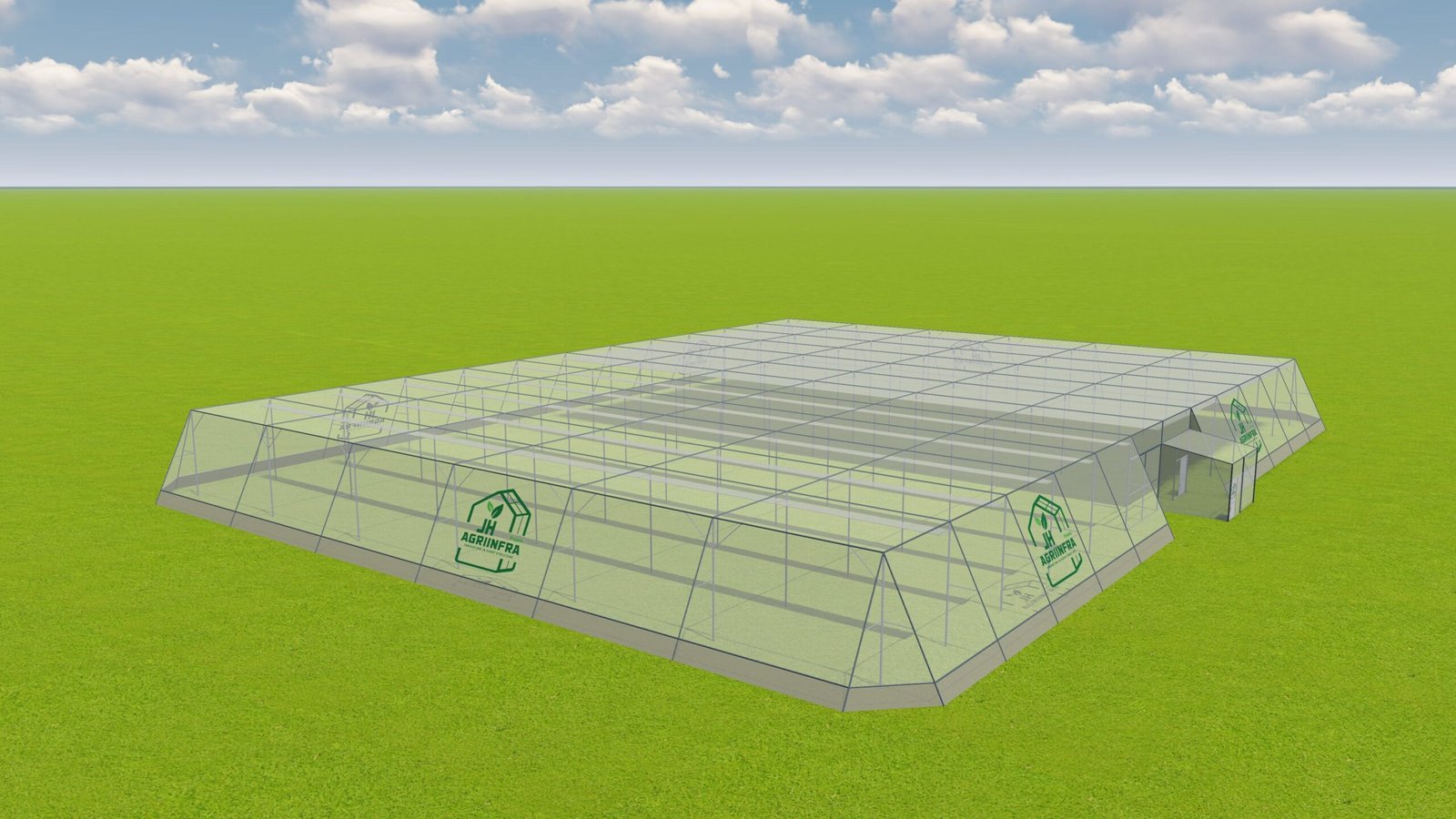

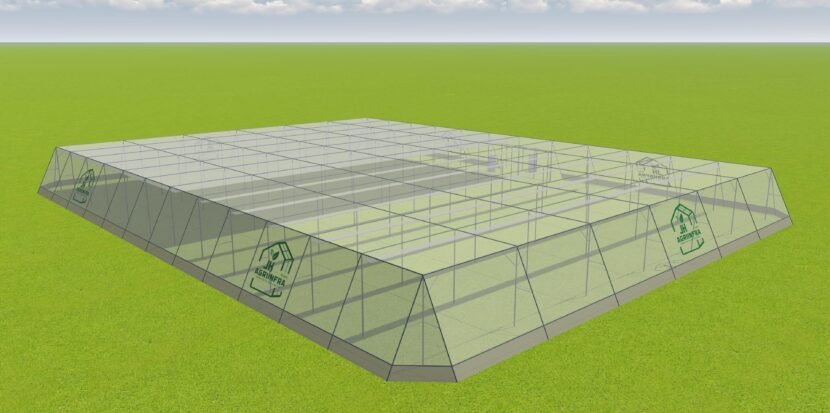

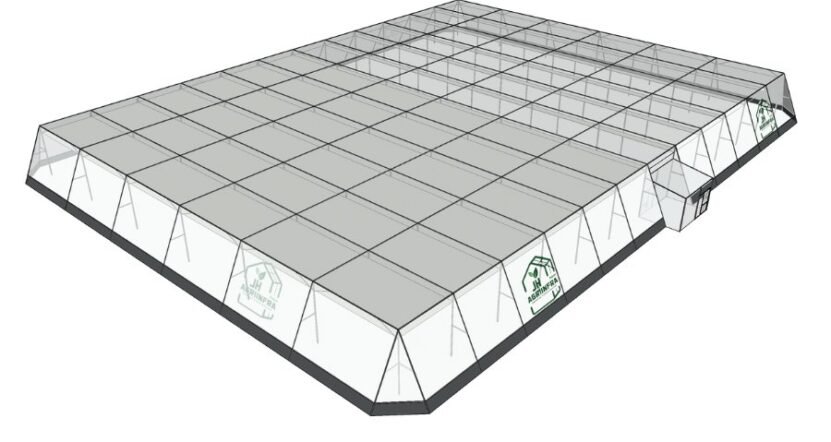

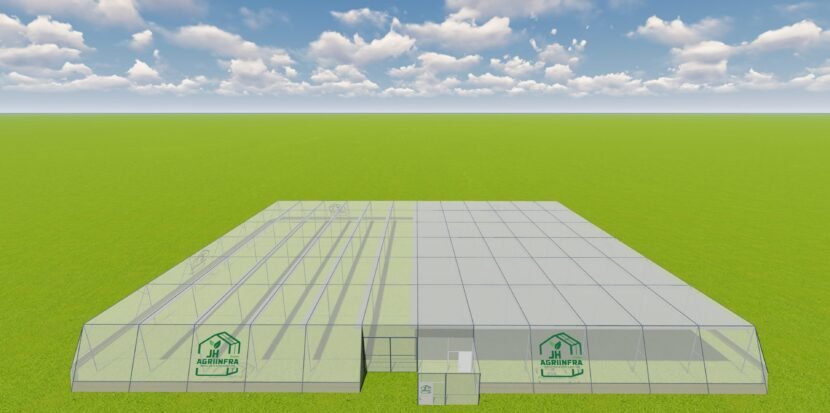

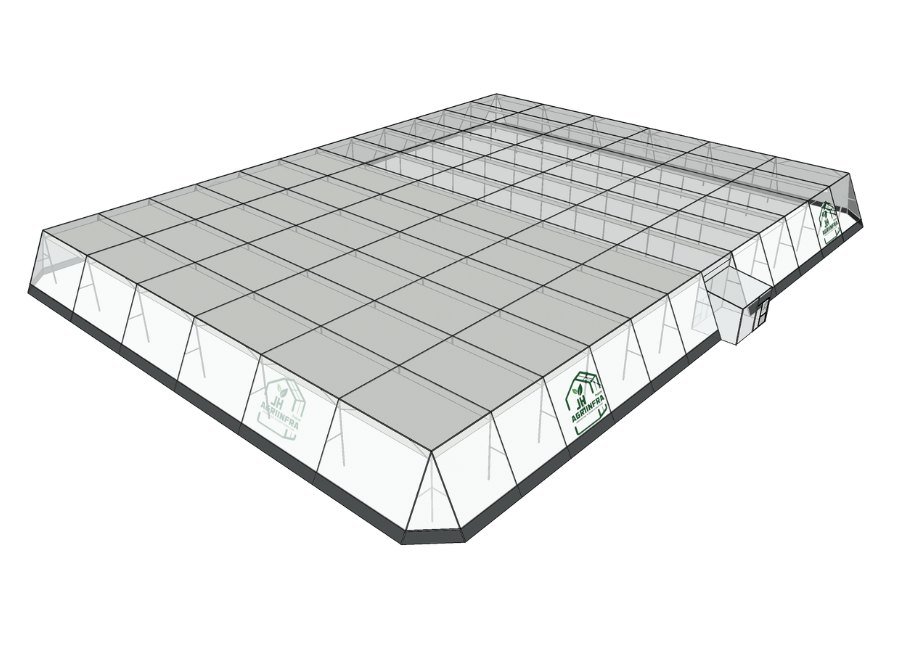

Flat Roof Shade Net House
A flat roof shade net house is a protective structure featuring a flat-roofed frame covered with a shade net, designed to reduce the intensity of sunlight, regulate temperature, and enhance air circulation for better plant growth. It provides an ideal environment for cultivating a variety of crops, including vegetables, flowers, fruits, and medicinal plants, by protecting them from excessive heat, pests, strong winds, and hail. This structure supports the growth of normal crops while ensuring better ventilation, creating a balanced microclimate that minimizes plant stress and improves productivity.
Top & Side Covering
Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected
Shade Net Options (Sliding Layer)
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected
Technical Specifications
| Structure Frame | 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) |
| Thickness of GI Pipe/s (mm) | 2.00, 2.90 |
| Span (m) x Bay (m) | 6.00 x 4.00 or customized |
| Height (m) | 3.00 to 5.00 or customized |
| Trellising System Capacity (kg) | 25.00 kg/m2 |
| Rainwater Harvesting Feature | Yes |
Innovation and customization are possible per client requirements.
Sections

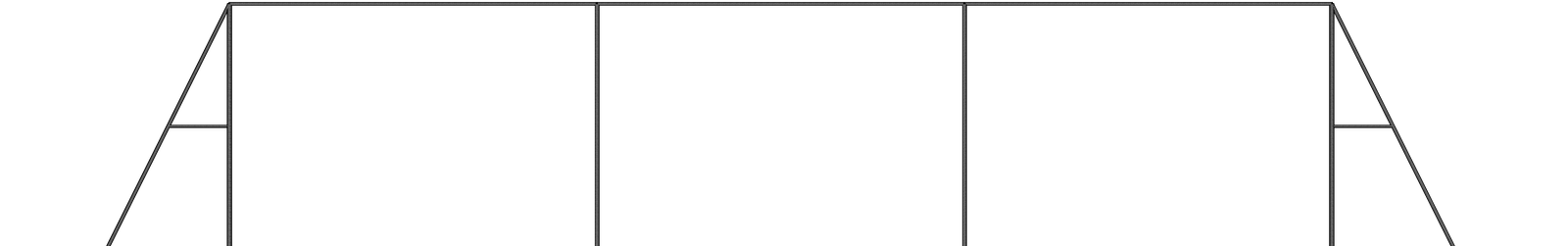

Inner Section
Outer Section
