Fan-Pad Cooling System Poly House
A fan-pad polyhouse is a controlled-environment greenhouse that uses an evaporative cooling system comprising exhaust fans and wet pads. The fans draw warm air out of the polyhouse, while the wet pads cool incoming air, creating a controlled temperature and humidity level ideal for crop growth. This system ensures uniform cooling throughout the structure and minimizes stress on plants caused by extreme heat, enhancing overall productivity. It is particularly effective in hot and dry climates, making it suitable for high-value crop cultivation.
Top & Side Covering

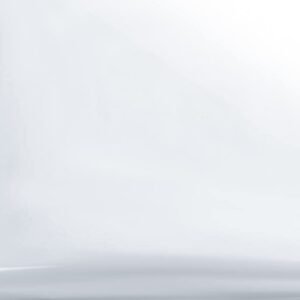

Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected
Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected

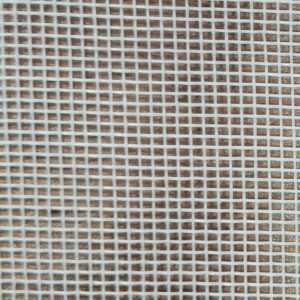

Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected
Shade Net Options (Sliding Layer)
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

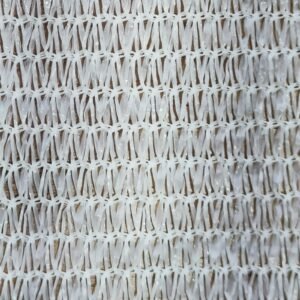

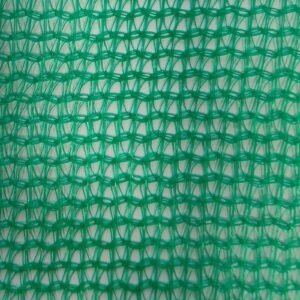

Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

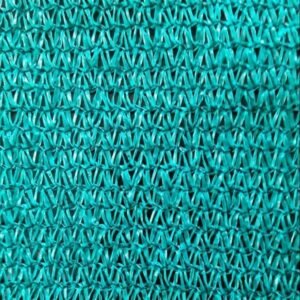

Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected
Get the Best Fan-Pad Polyhouse in India – Available with Government Subsidy Support
Technical Specifications
| Structure Frame | 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) |
| Thickness of GI Pipe/s (mm) | 2.00, 2.90 |
| Span (m) x Bay (m) | 8.00 x 4.00, 9.60 x 4.00 or customized |
| Hockey Corridor (m) | 2.00 or customized |
| Centre (Top) Height (m) | 6.00 to 7.00 or customized |
| Side (Gutter) Height (m) | 3.00 to 5.00 or customized |
| Exhaust fans (HP) | 1 to 1.50 or customized |
| Cooling Pads (Inch) | 4 to 6 or customized |
| Trellising System Capacity (kg) | 25.00 kg/m2 |
| Rainwater Harvesting Feature | Yes |
Innovation and customization are possible per client requirements.
-

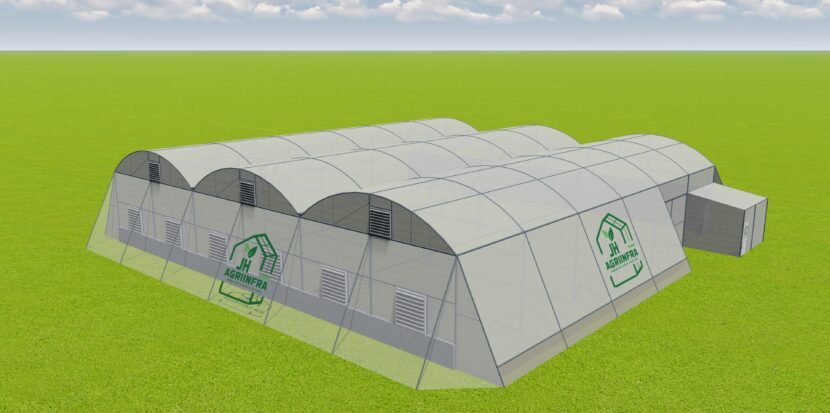

- Climate-Controlled Polyhouse by JH Agriinfra – Advanced Protected Farming Structure
-
- JH Agriinfra’s state-of-the-art forced ventilation polyhouse ensuring optimal climate control for high-value crop cultivation.
-

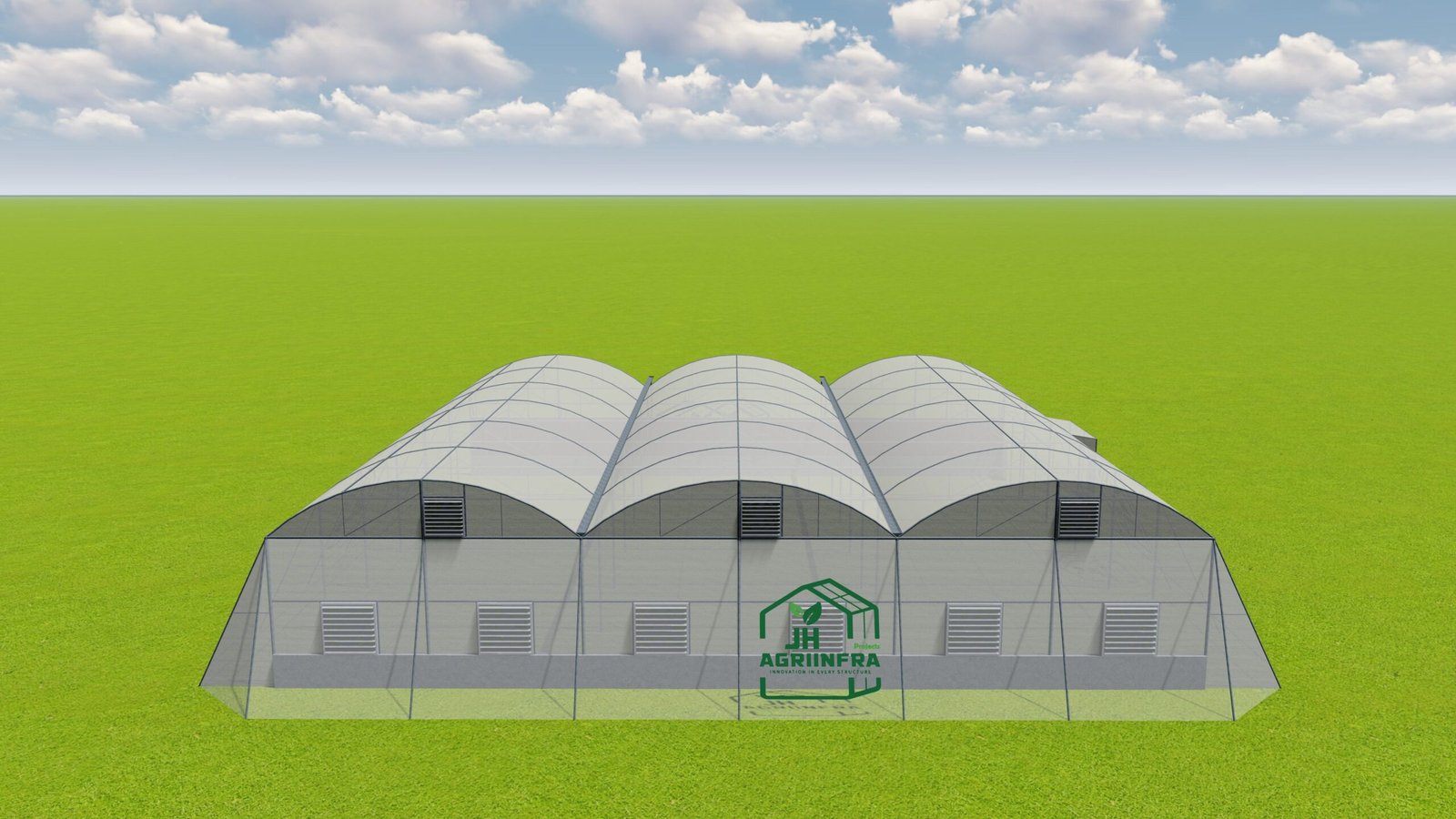

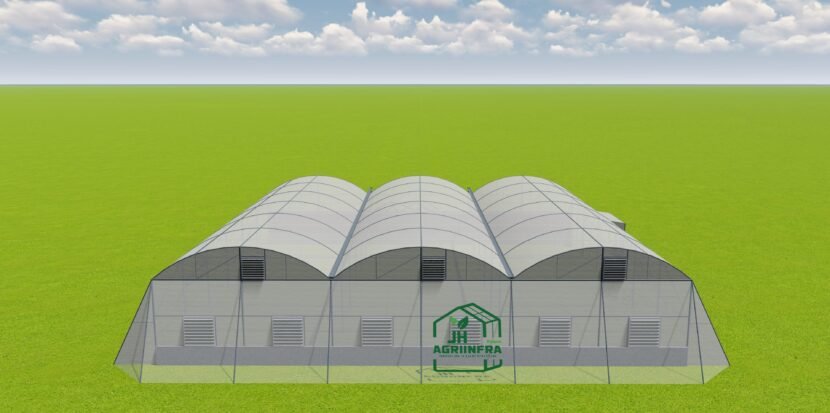

- Fan and Pad Polyhouse by JH Agriinfra featuring advanced climate control systems for year-round sustainable farming.
-

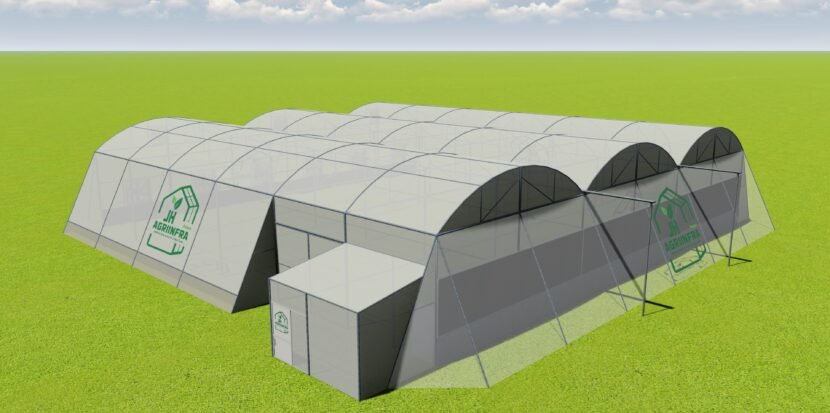

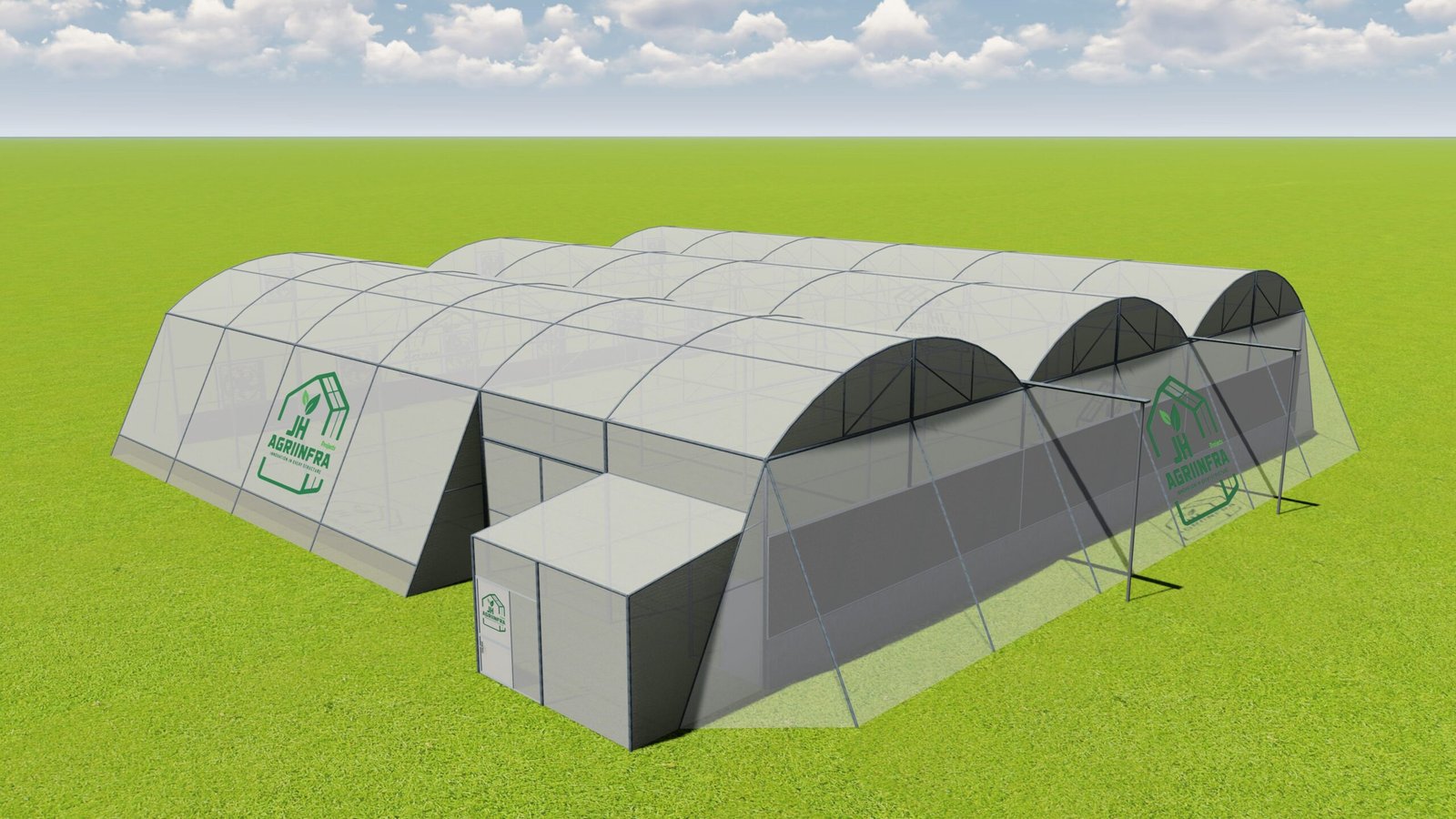

- Fan and Pad Controlled Polyhouse by JH Agriinfra
Sections

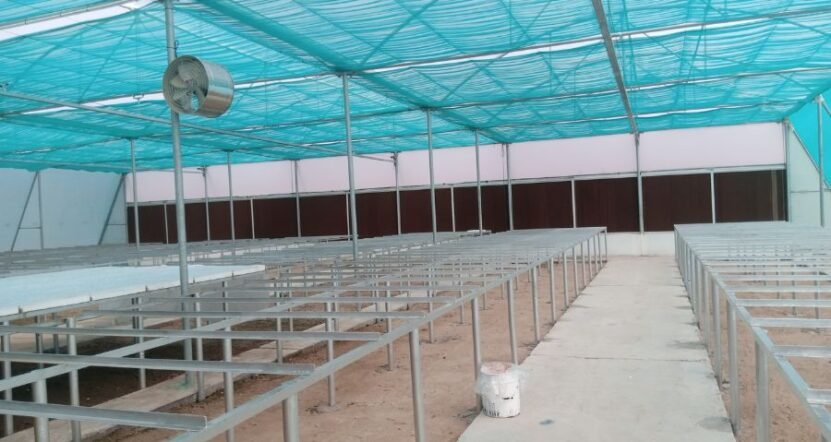

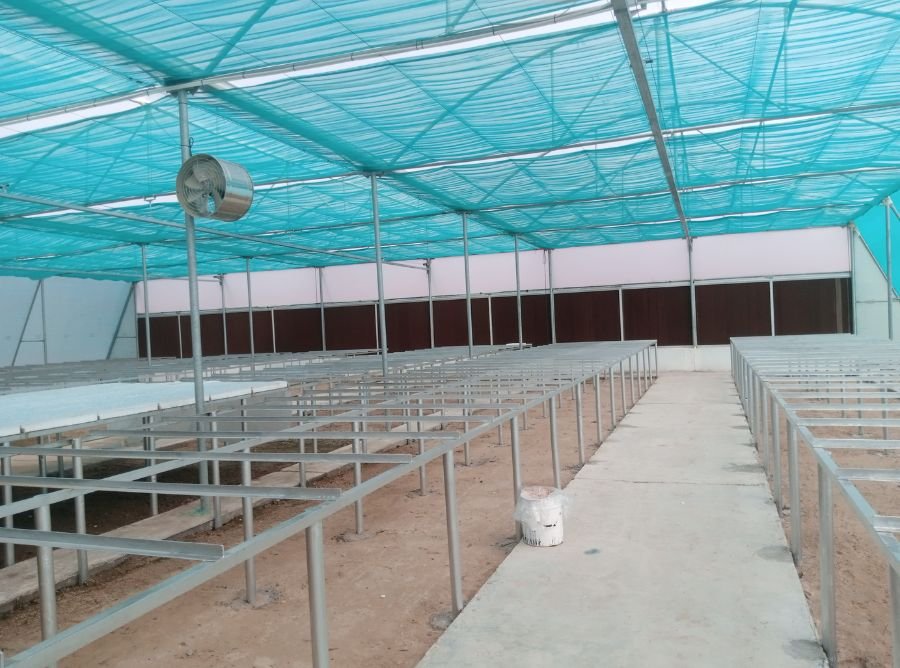

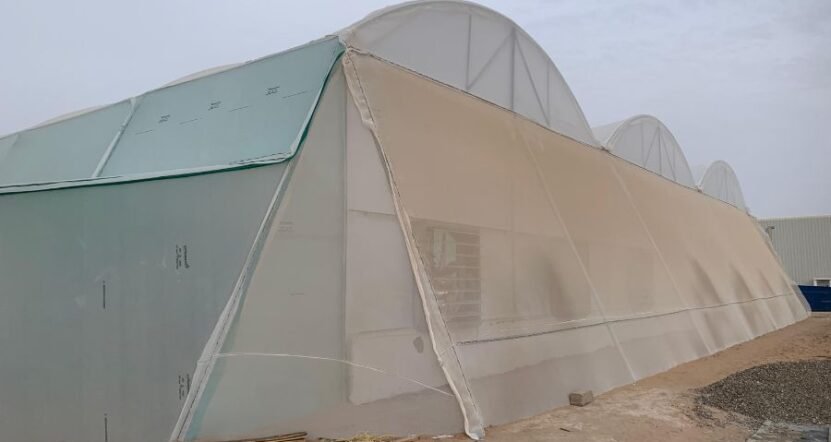

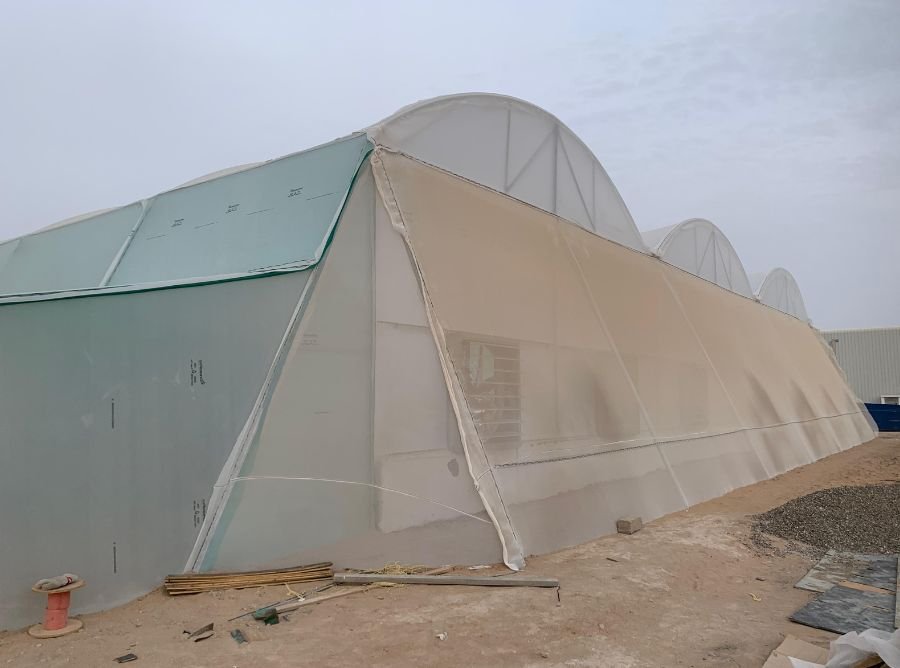

Cooling Pad Section

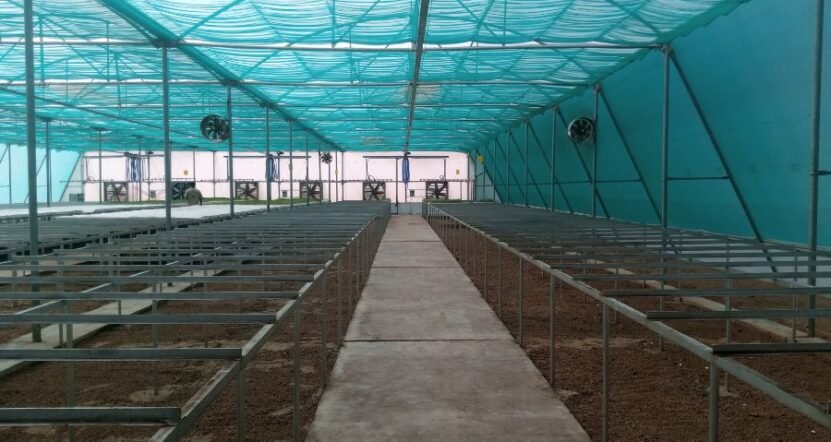

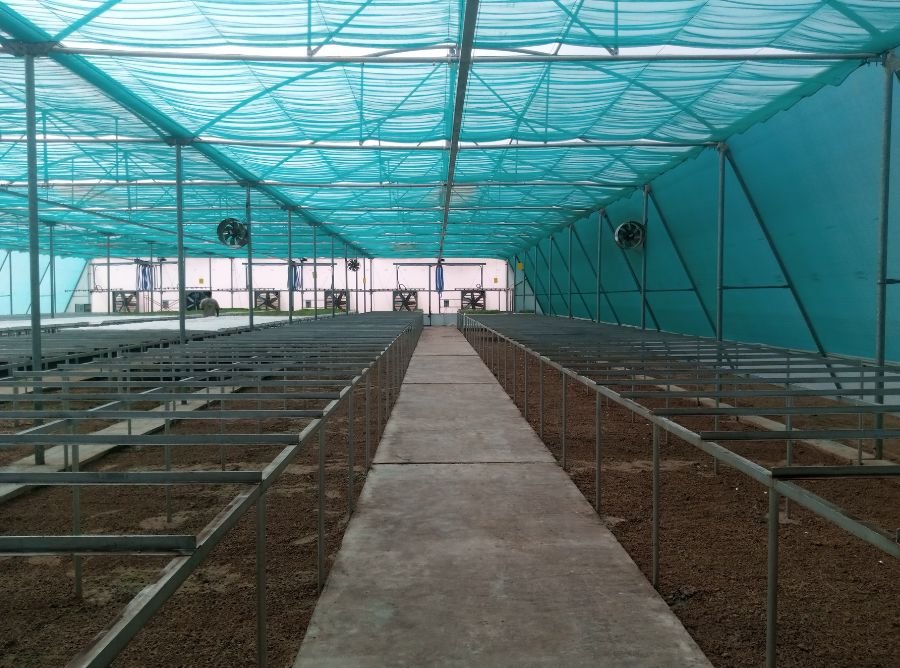

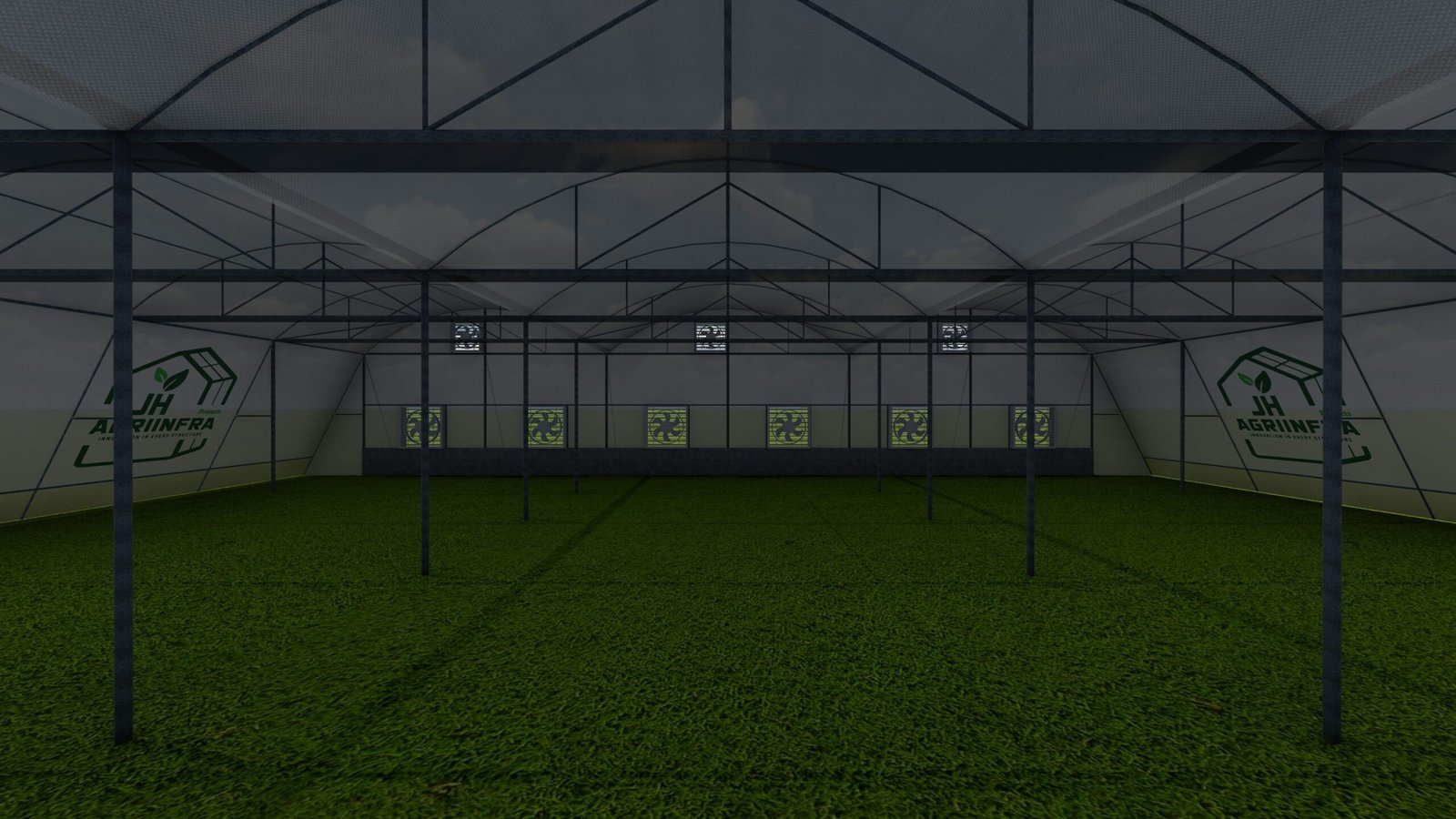

Inner Section

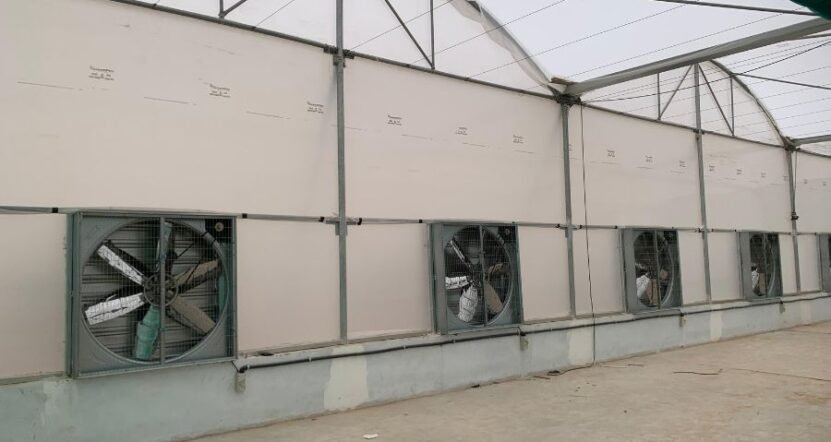

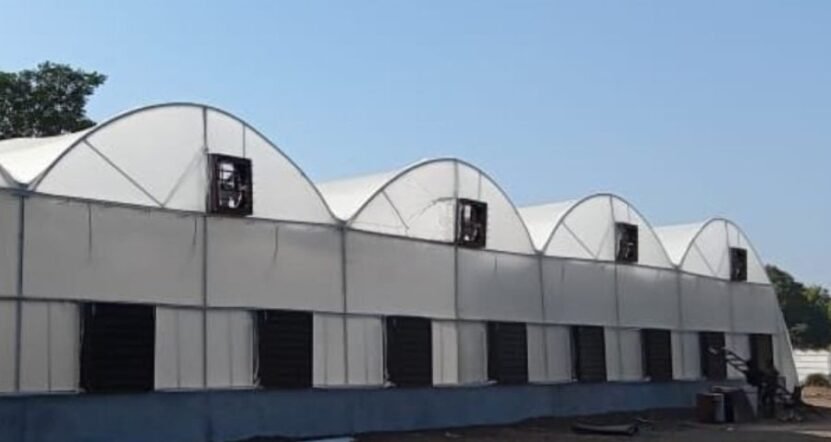

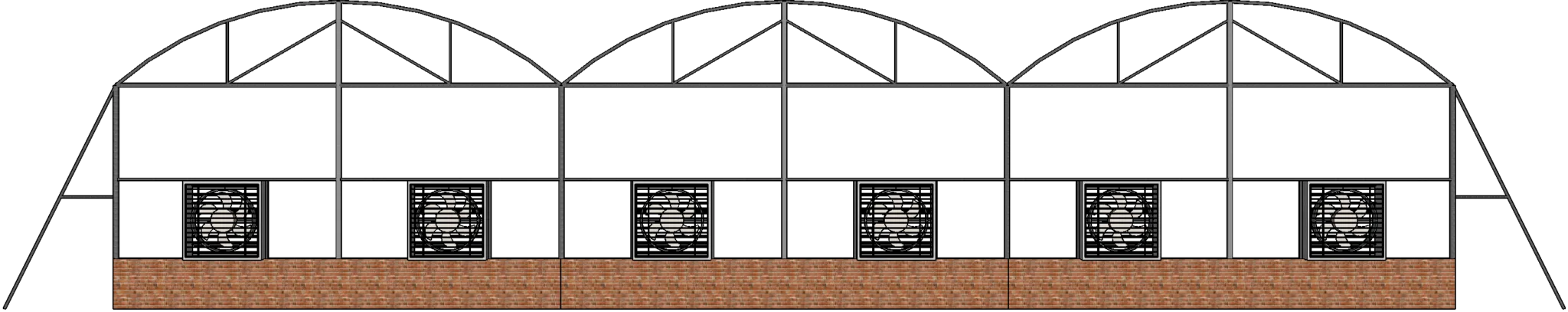

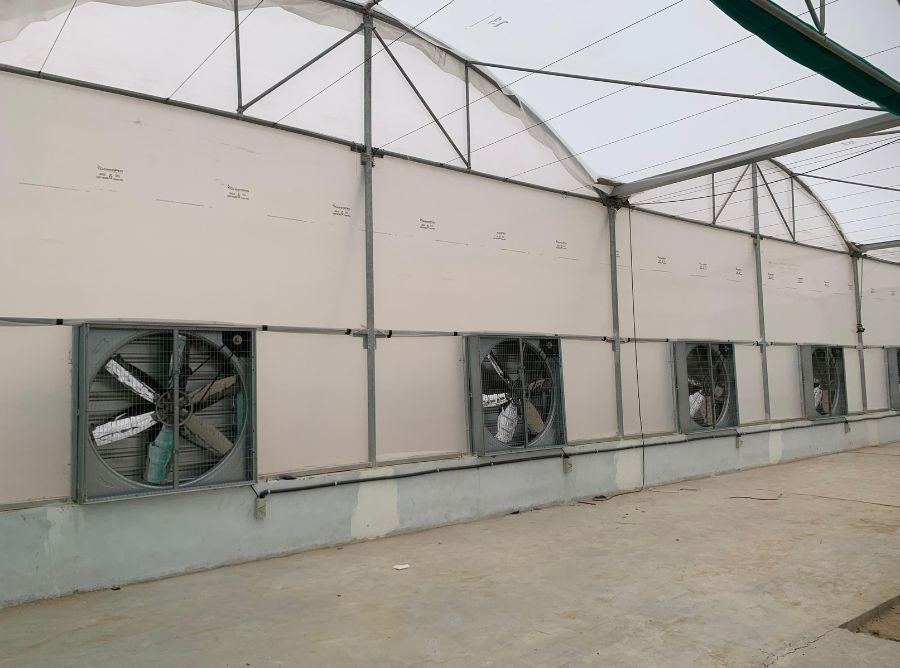

Exhaust Fan Section
