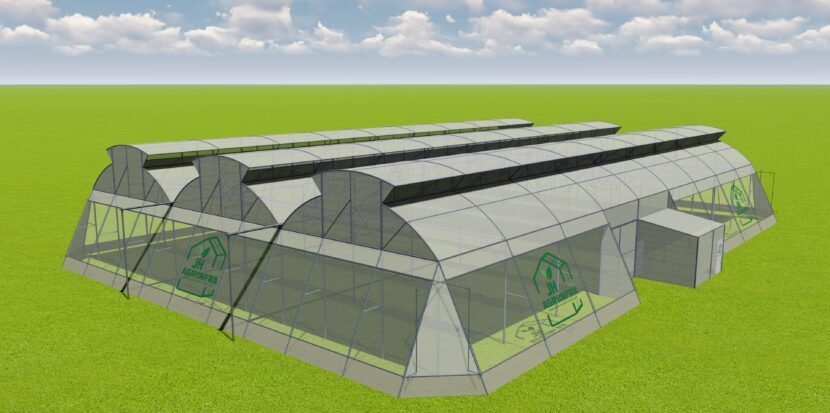

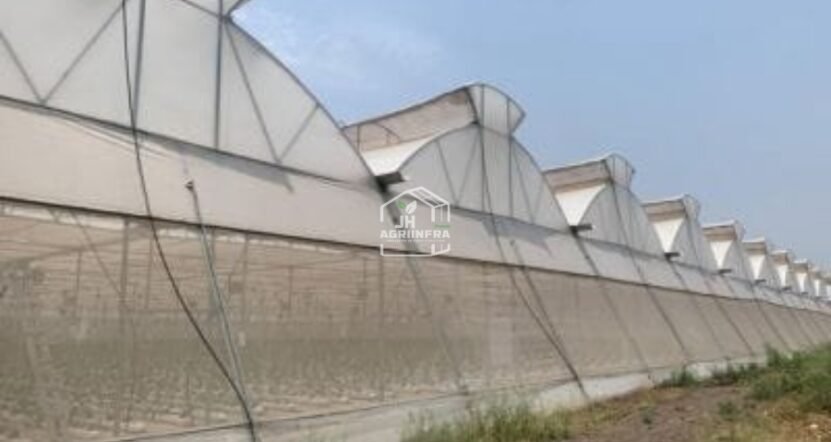

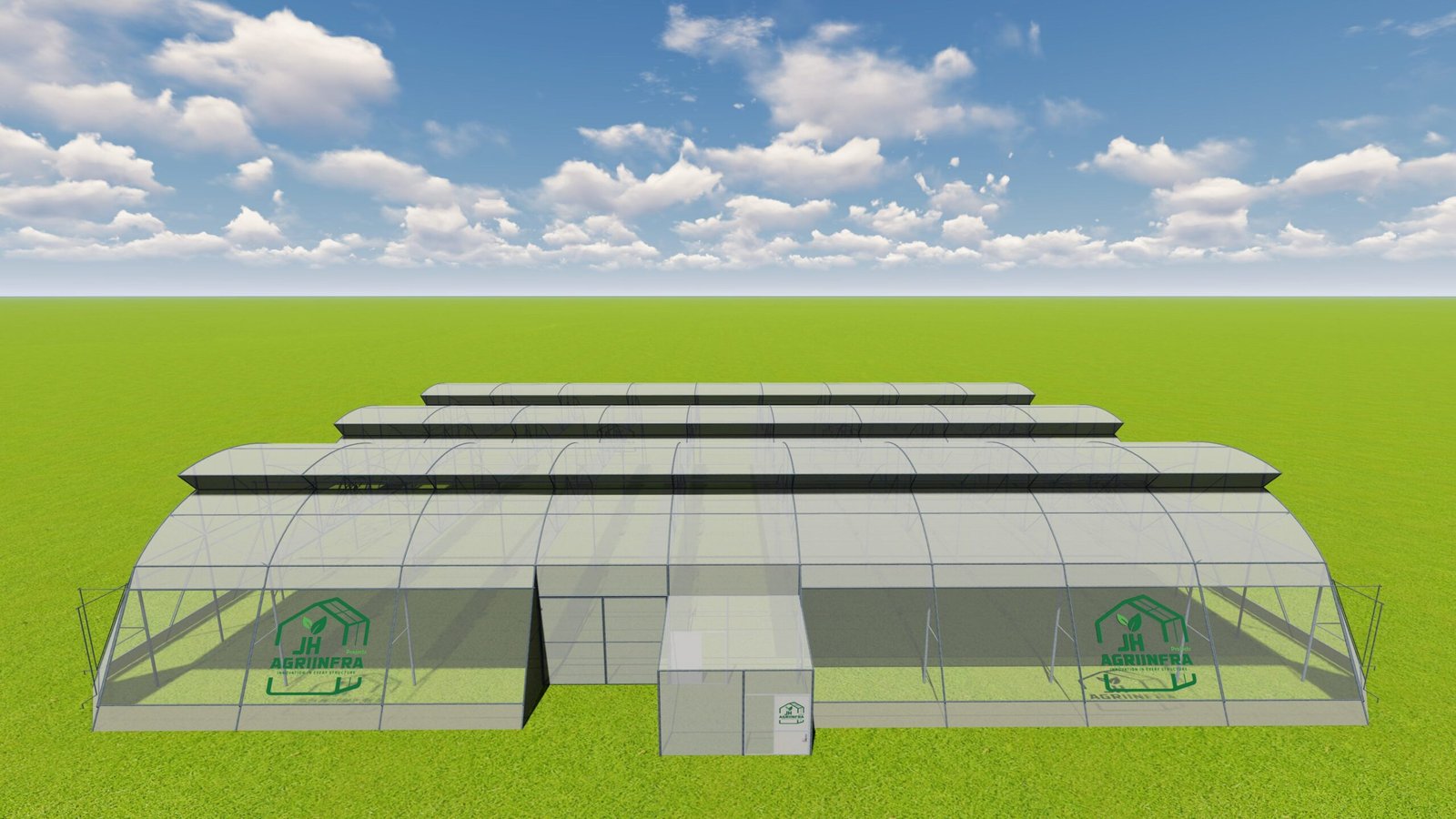

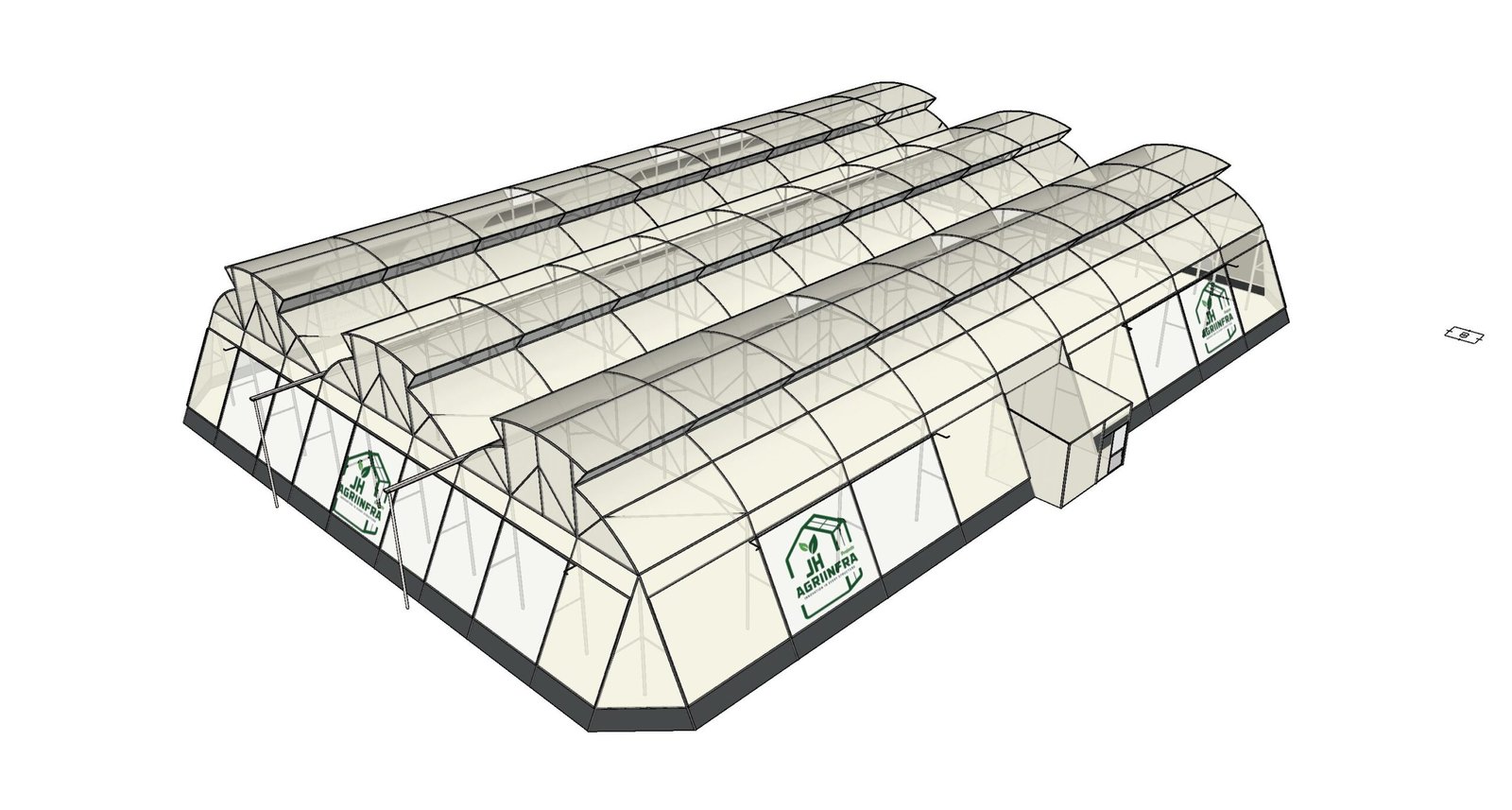

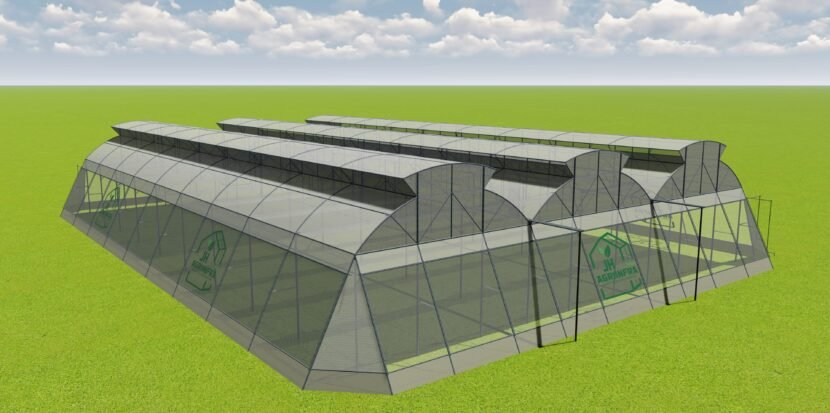

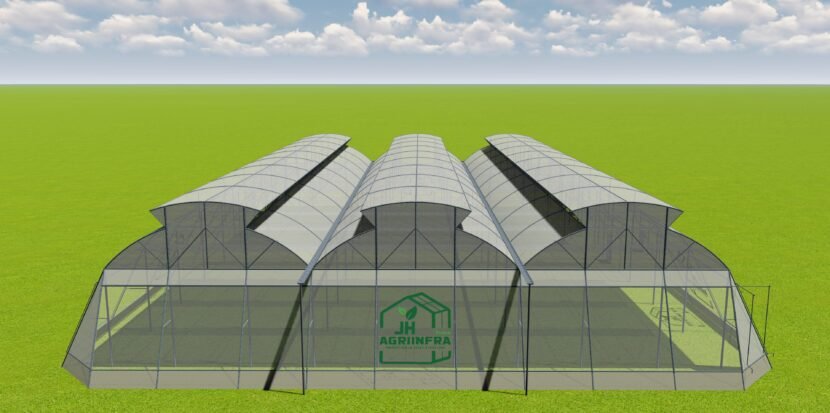

Double Vent Naturally Ventilated Poly House
A double-vent naturally ventilated polyhouse is a type of greenhouse structure designed with two ventilation systems, typically located on the sides and at the roof, to facilitate natural air circulation. These vents use the principles of wind and thermal buoyancy to regulate temperature, humidity, and airflow within the polyhouse. This design eliminates the need for mechanical ventilation, making it energy-efficient and ideal for growing crops in controlled environmental conditions.
Top & Side Covering
Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected
Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected
Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected
Shade Net Options (Sliding Layer)
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected
Technical Specifications
| Structure Frame | 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) |
| Thickness of GI Pipe/s (mm) | 2.00, 2.90 |
| Span (m) x Bay (m) | 8.00 x 4.00, 9.60 x 4.00 or customized |
| Centre (Top) Height (m) | 6.00 to 7.00 or customized |
| Side (Gutter) Height (m) | 3.00 to 5.00 or customized |
| Top Vent Opening (m) | 0.90 to 1.50 or customized |
| Side Vent Opening (m) | 2.50 to 4.00 or customized |
| Trellising System Capacity (kg) | 25.00 kg/m2 |
| Rainwater Harvesting Feature | Yes |
Innovation and customization are possible per client requirements.
