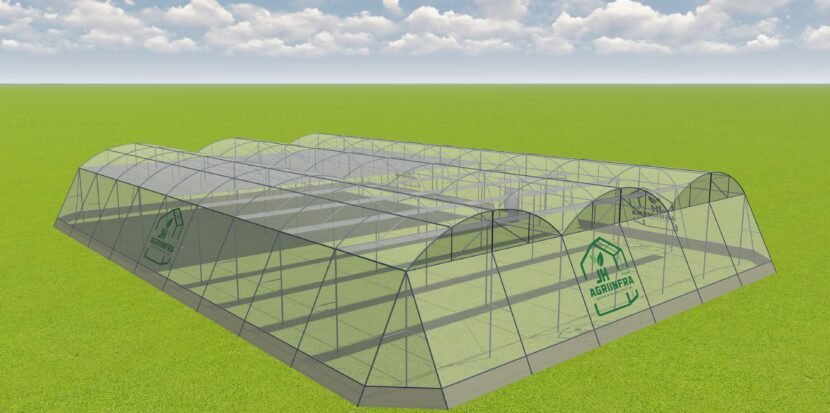

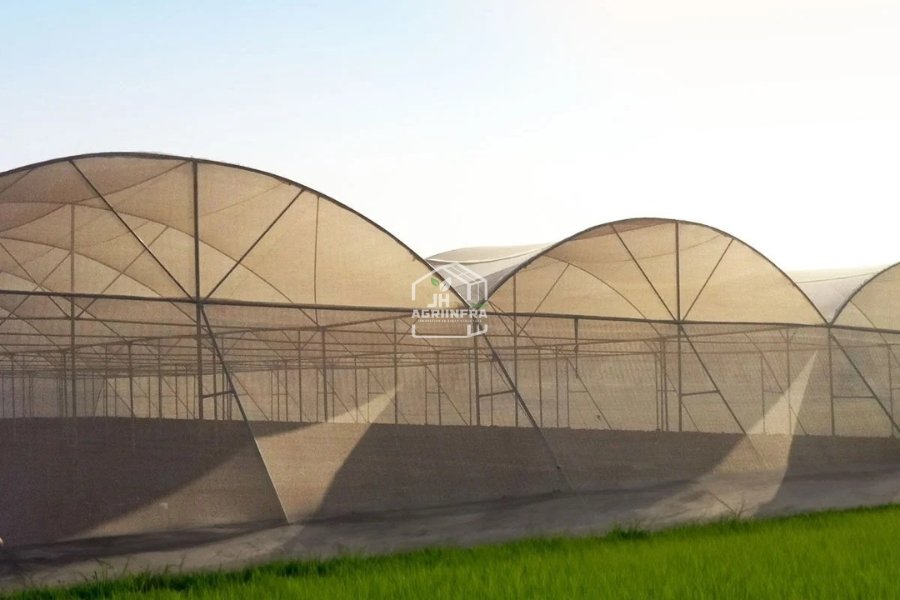

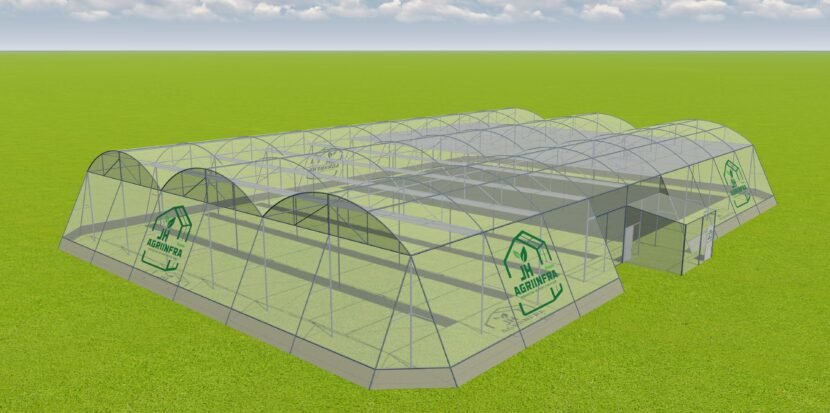

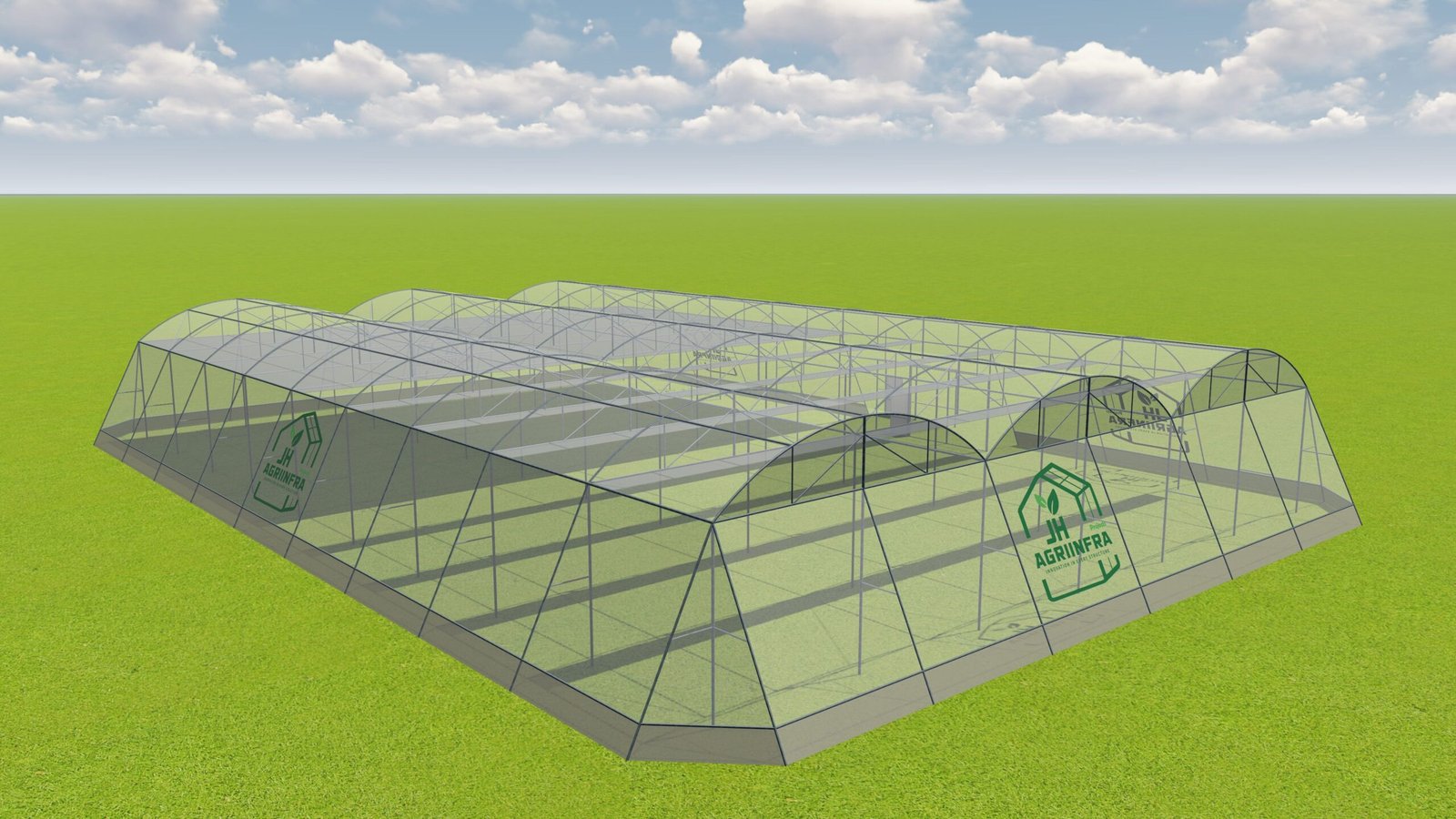

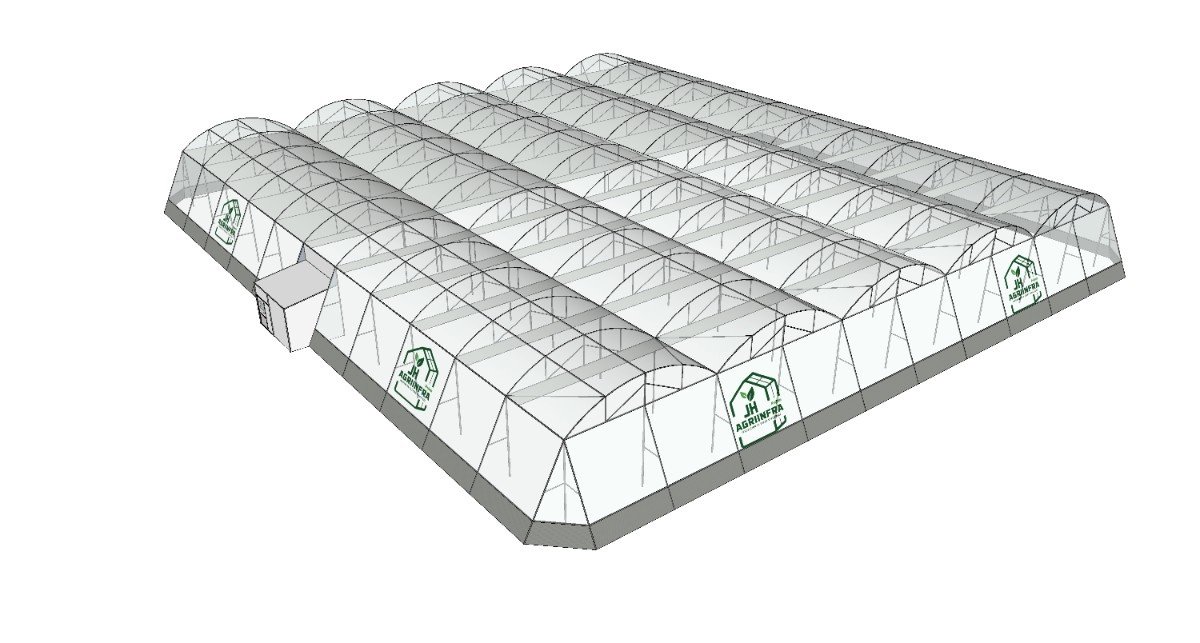

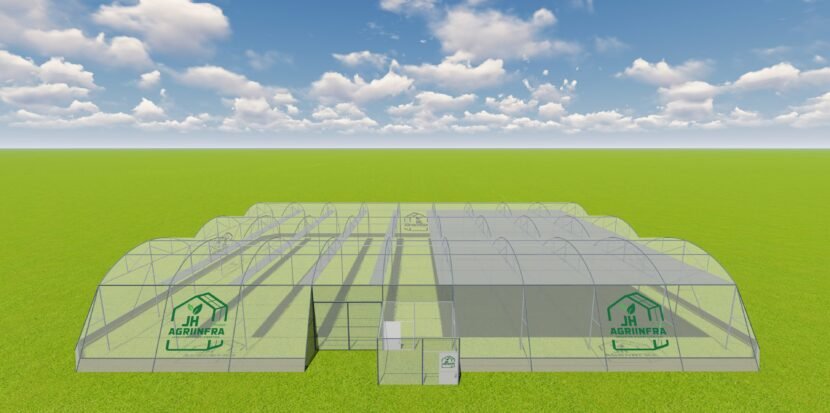

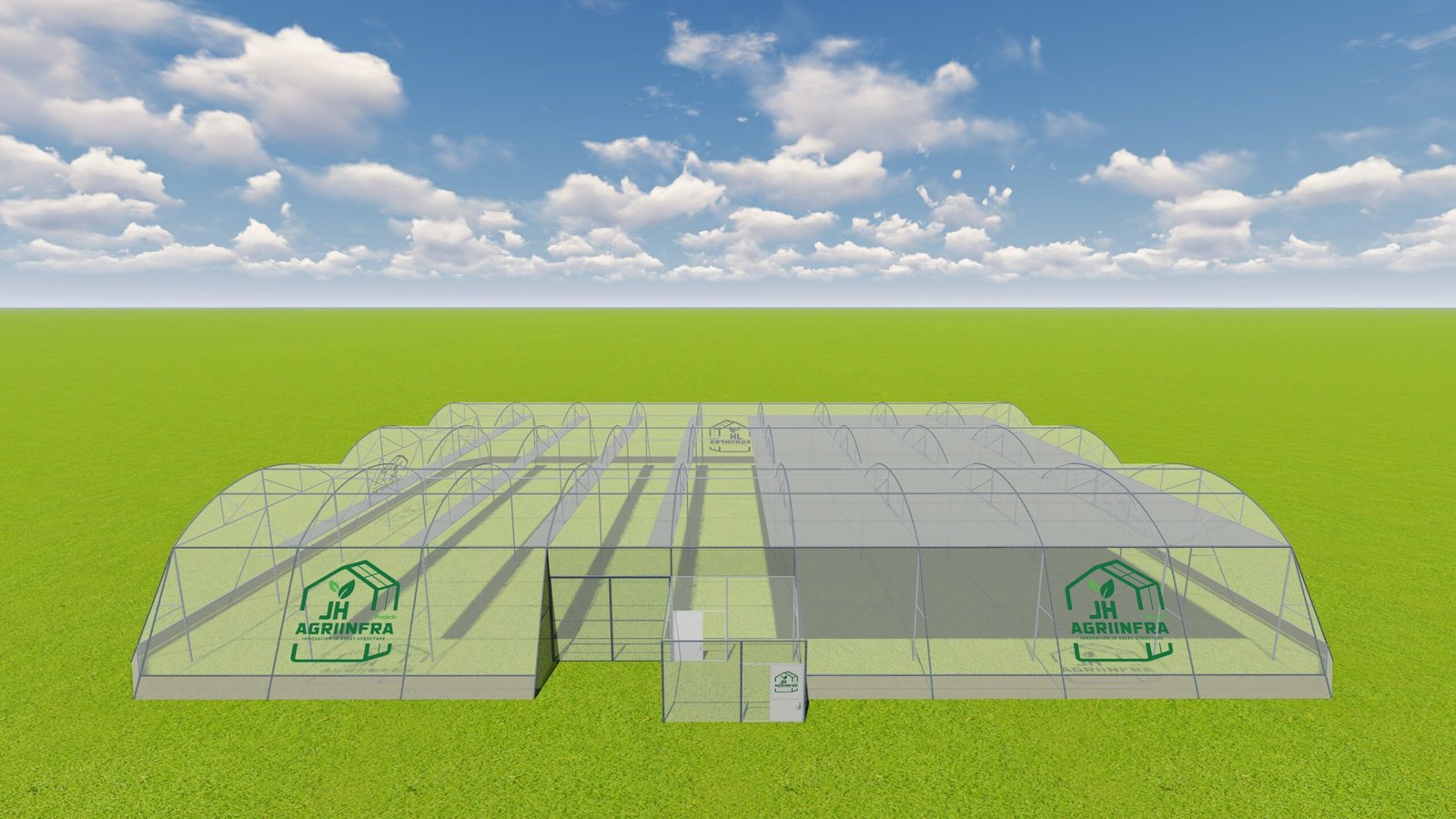

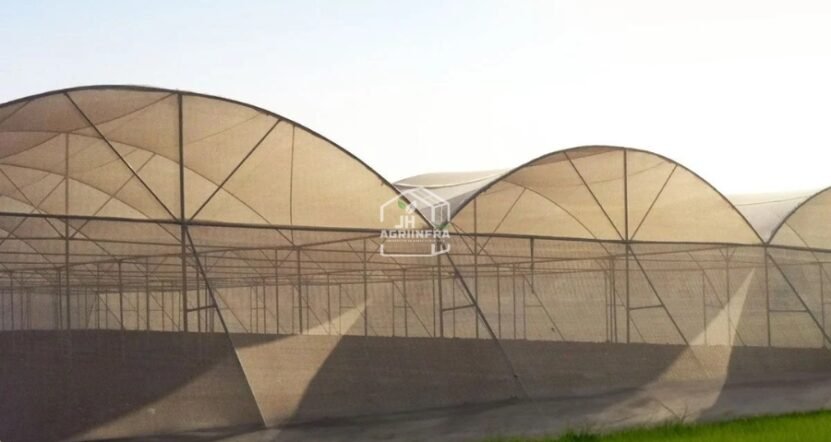

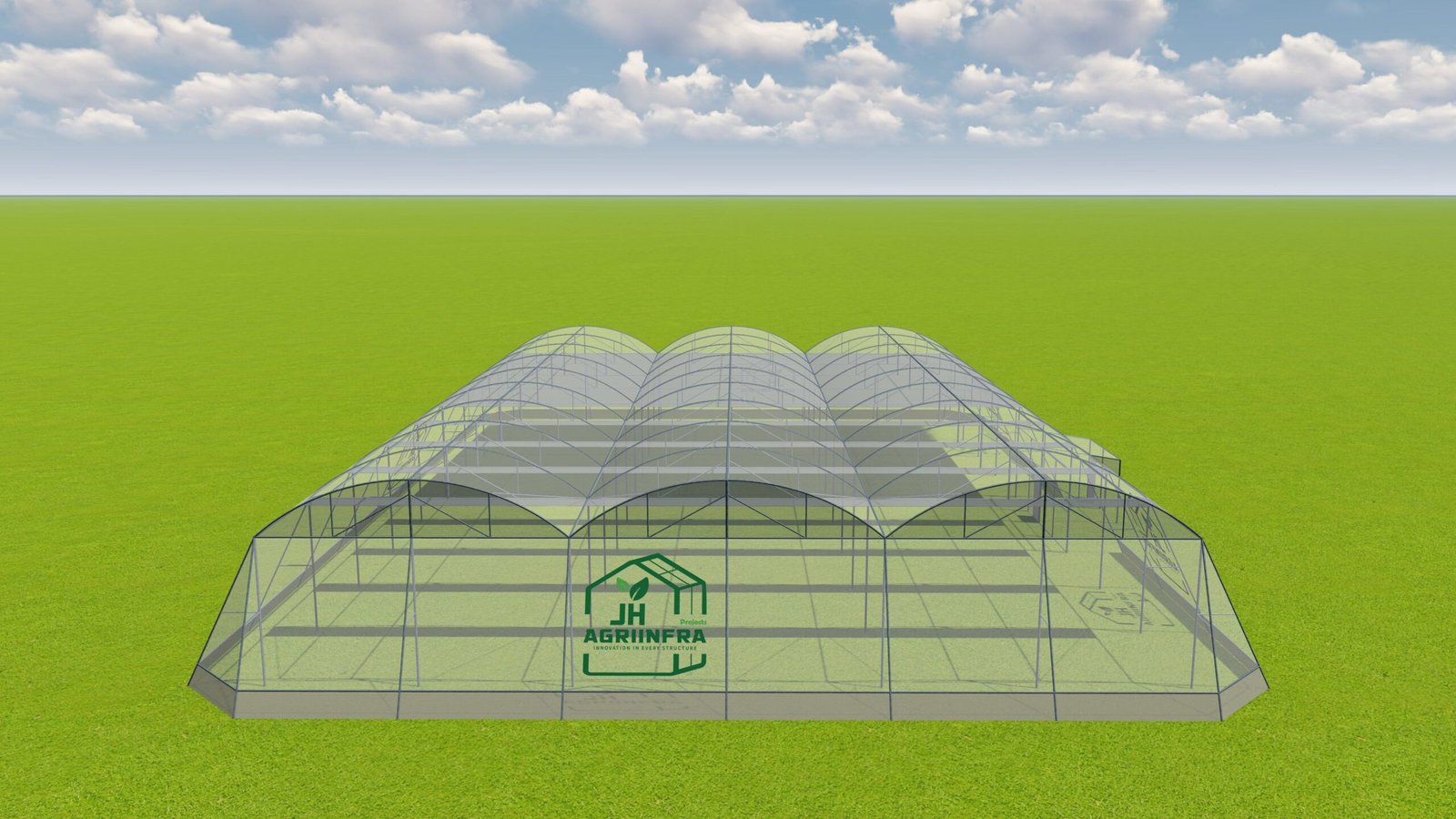

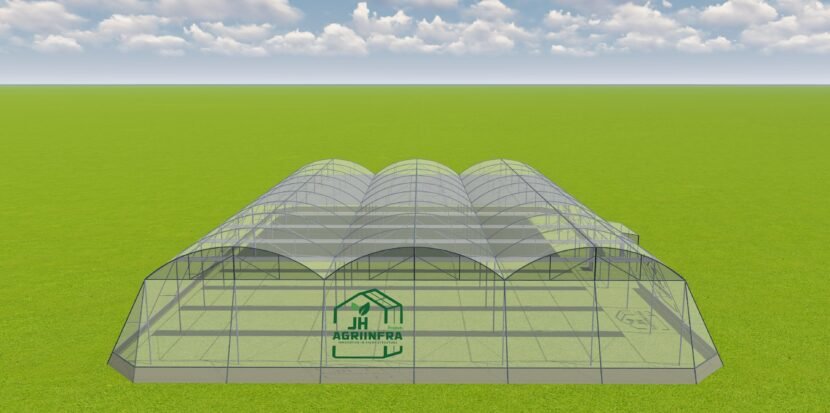

Dome Shaped Shade Net House

A dome shape shade net house is a protective agricultural structure with a dome-shaped roof covered by shade nets or insect-proof nets. This design allows for better wind resistance, efficient water runoff, and enhanced ventilation, creating an ideal microclimate for crop growth. It provides shade to reduce sunlight intensity, regulate temperature, and protect crops from pests, birds, and harsh weather conditions. The dome shape is particularly effective in areas with heavy rainfall and wind, ensuring durability and stability. It is widely used for cultivating vegetables, flowers, fruits, and nursery plants.

Top & Side Covering

Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected

Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected

Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected

Shade Net Options (Sliding Layer)

Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected

Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected

Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected

Technical Specifications

Structure Frame	250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron)
Thickness of GI Pipe/s (mm)	2.00, 2.90
Span (m) x Bay (m)	8.00 x 4.00, 9.60 x 4.00 or customized
Centre (Top) Height (m)	5.00 to 6.00 or customized
Side (Gutter) Height (m)	3.00 to 5.00 or customized
Trellising System Capacity (kg)	25.00 kg/m²

Innovation and customization are possible per client requirements.

Get Customized Quotation

Sections

Inner Section

Outer Section

FAQ

How does a dome shape improve ventilation?

The curved design enhances natural airflow, preventing heat buildup and maintaining a balanced temperature for crop growth.

Is a dome shape shade net house suitable for all climates?

Yes, it is especially effective in areas with high winds, heavy rainfall, and extreme sun exposure.

Does it require specialized irrigation systems?

Yes, drip irrigation or sprinklers are often integrated to ensure efficient water use and uniform crop watering.

What maintenance is required for a dome shape shade net house?

Regular cleaning of the shade nets, checking structural joints, inspecting for damage from weather or pests, and ensuring proper tension in the netting are essential for upkeep.
