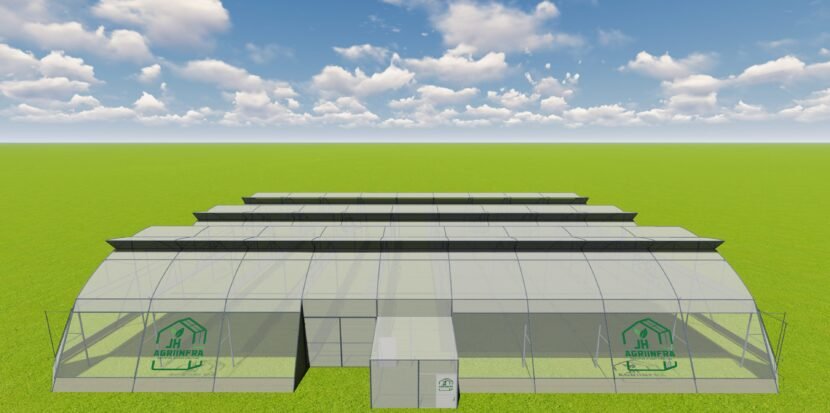

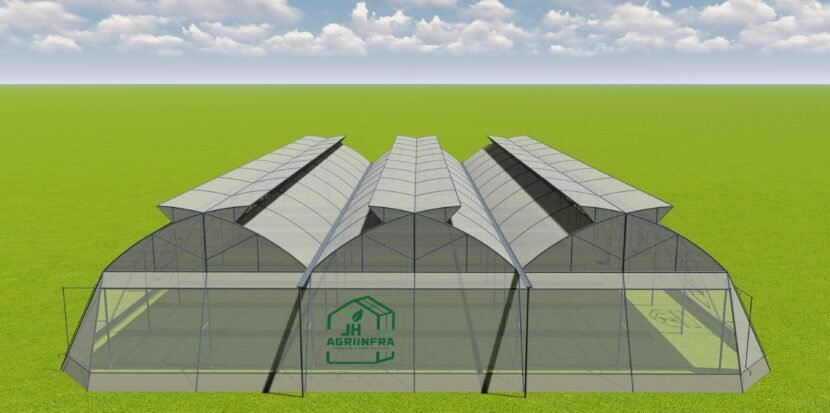

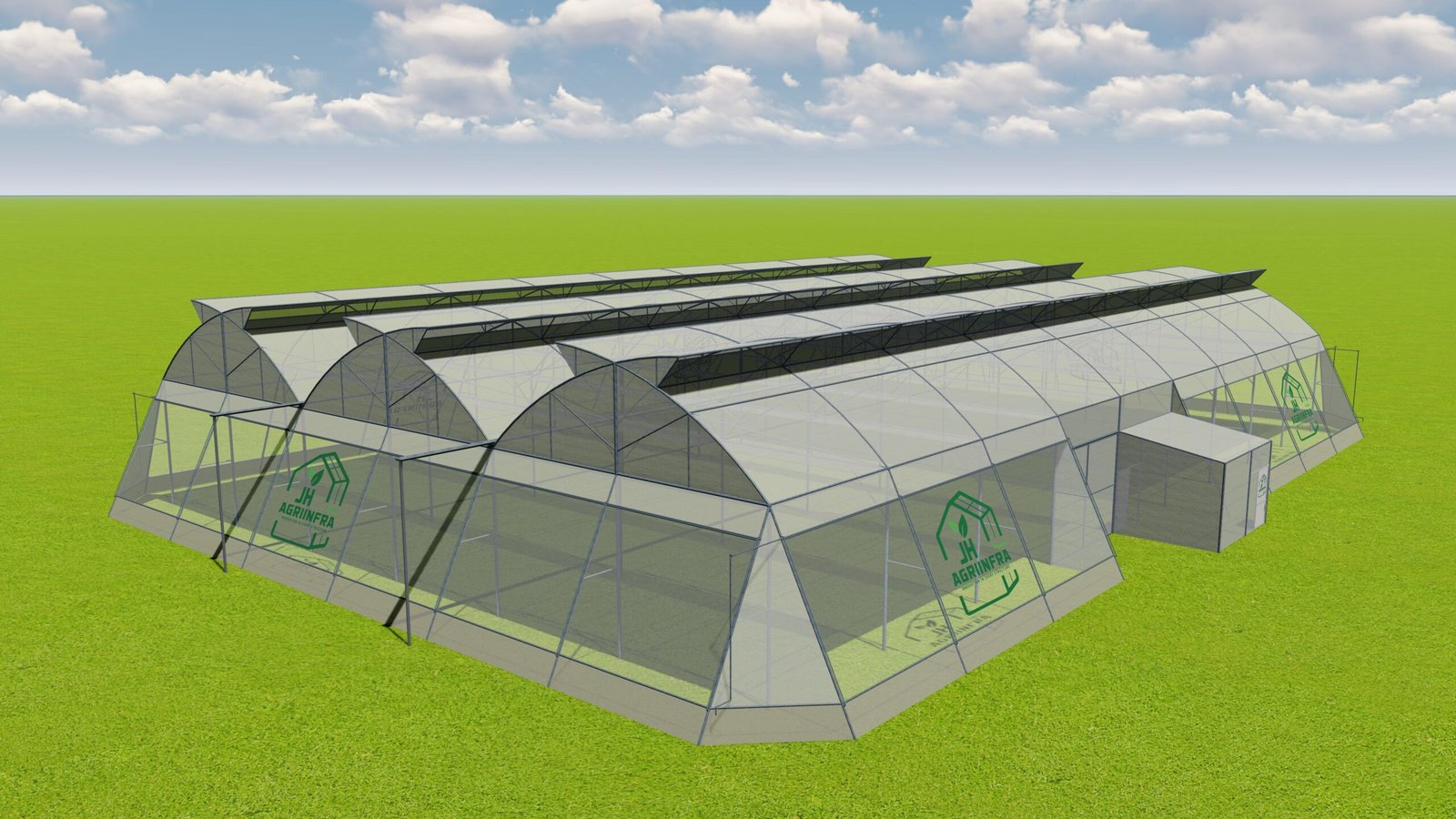

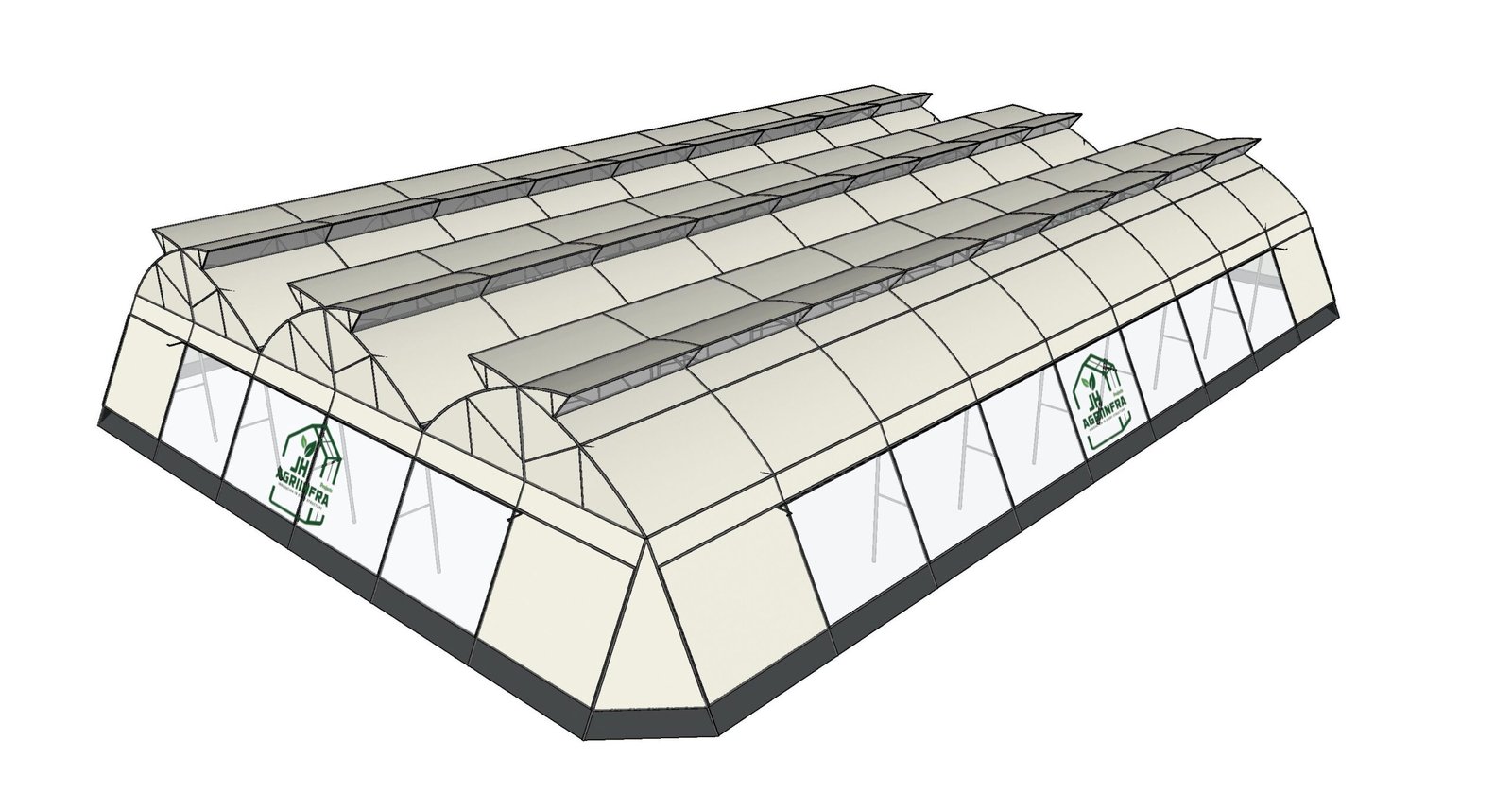

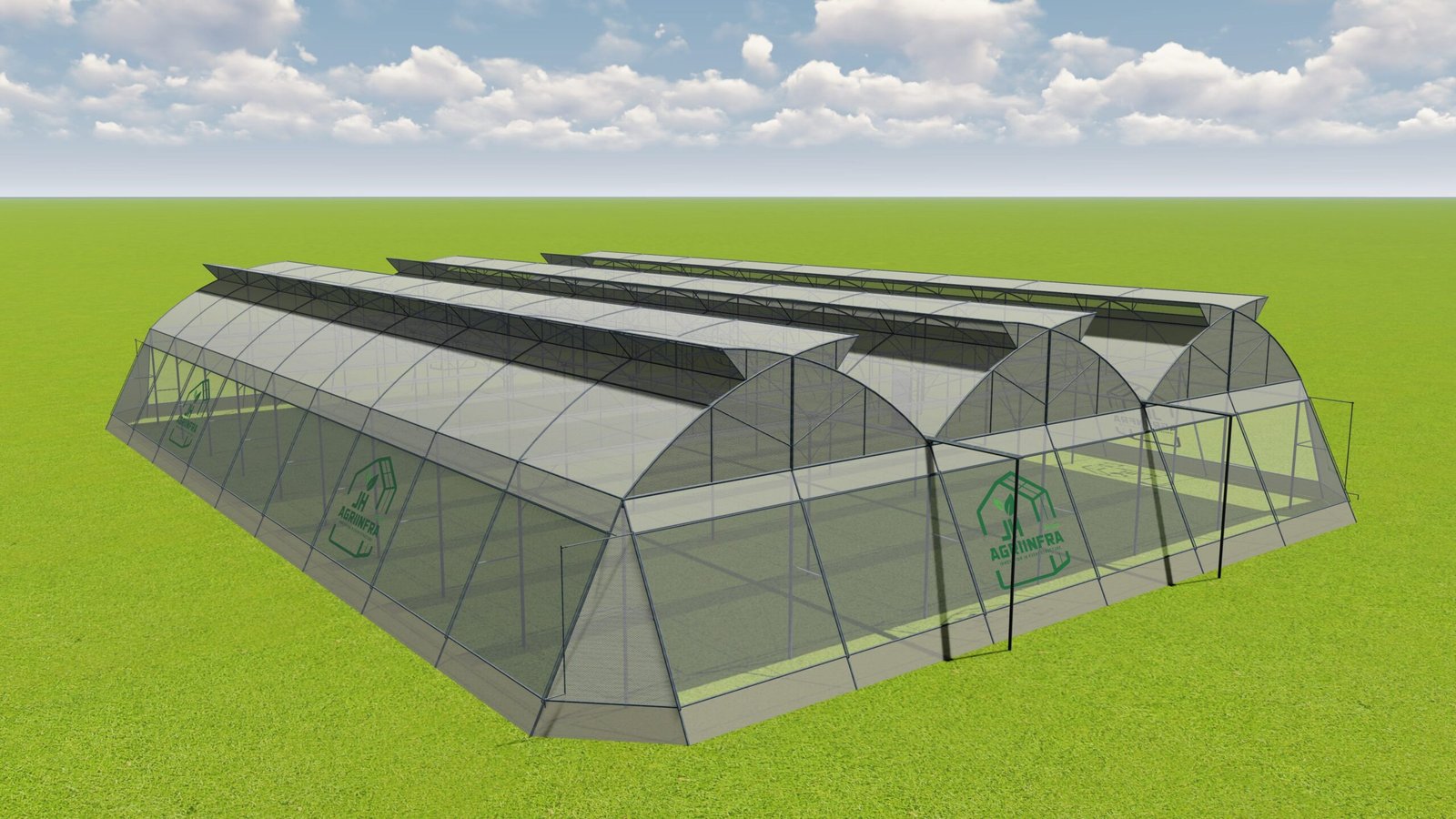

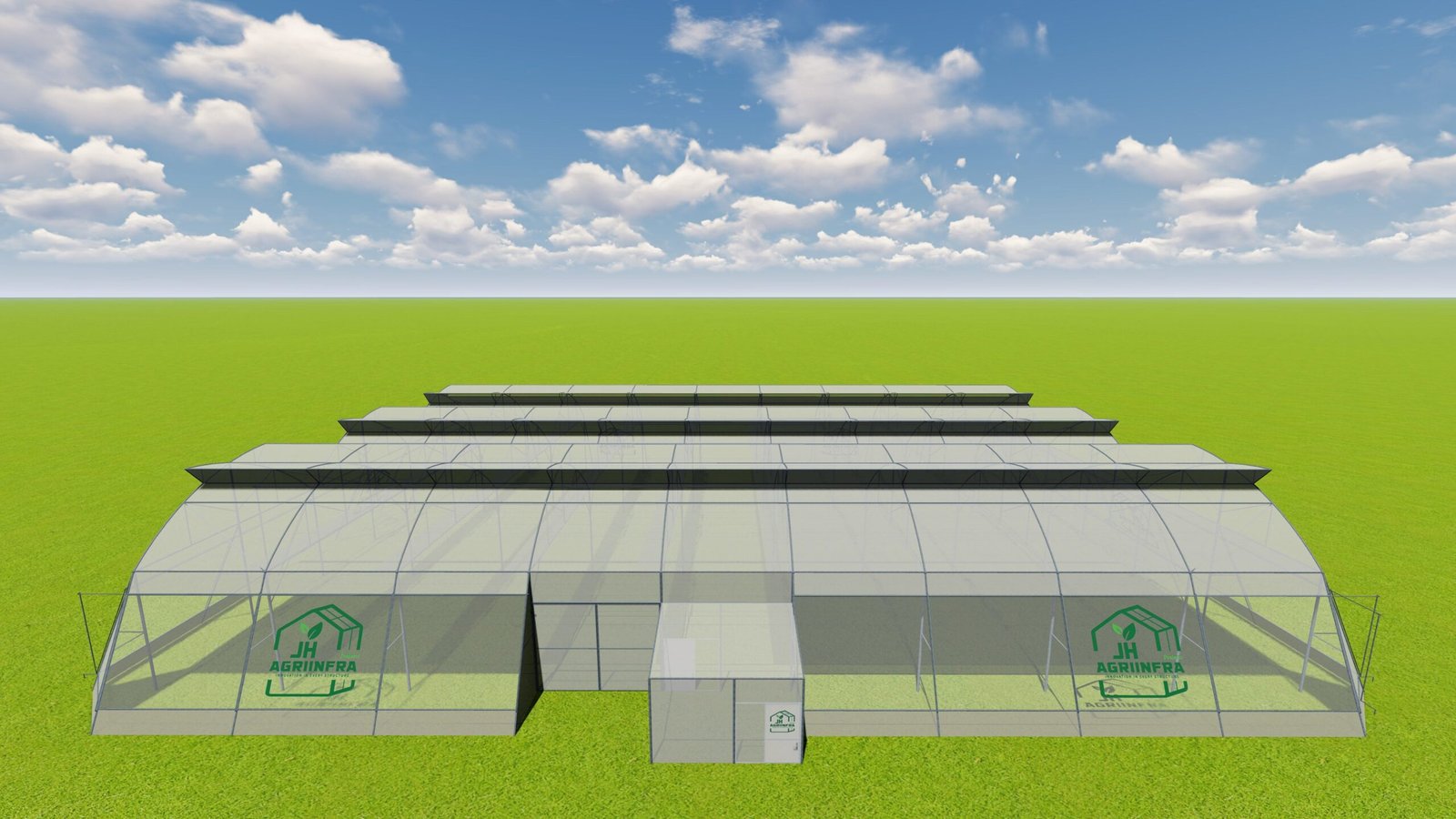

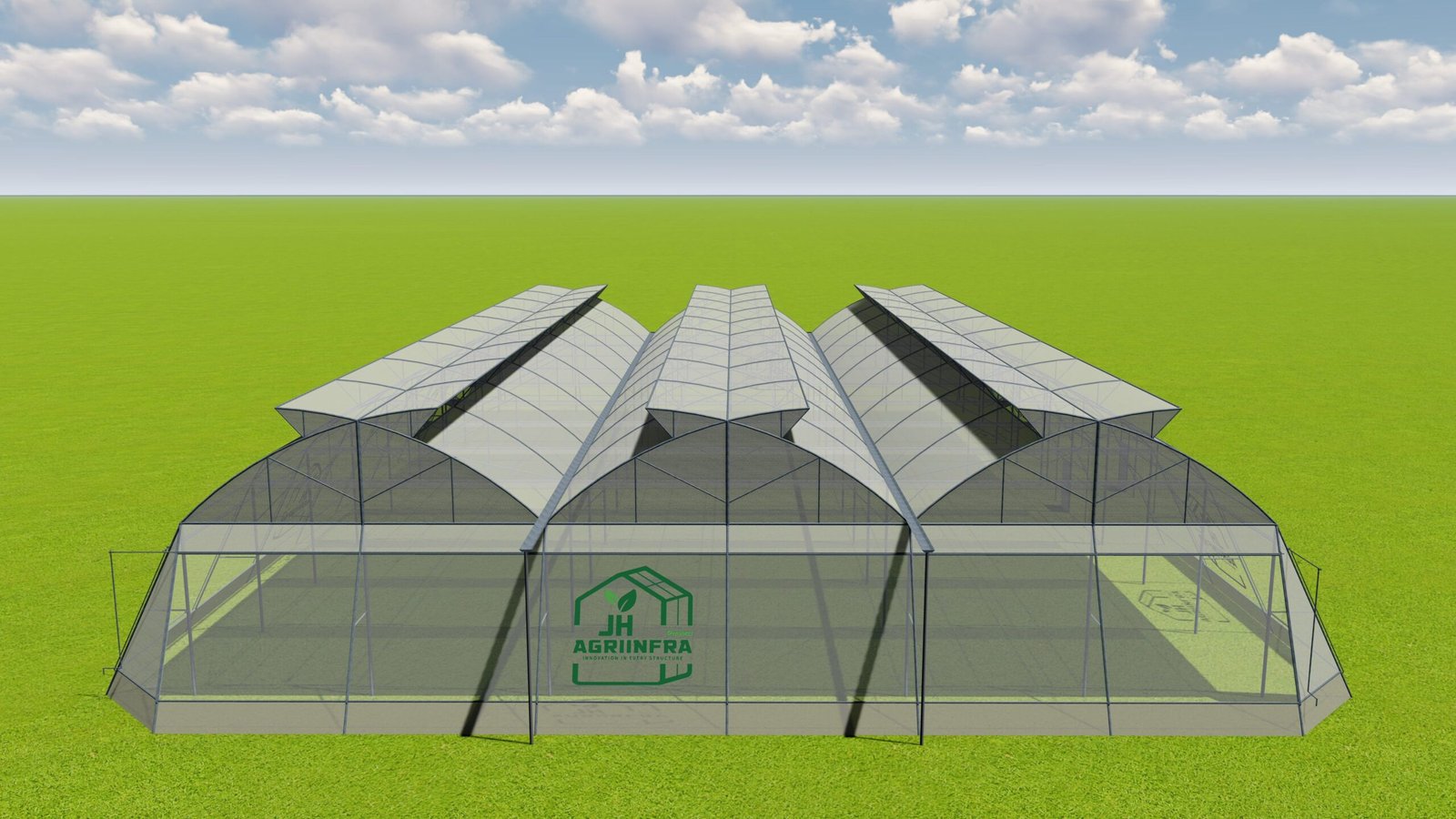

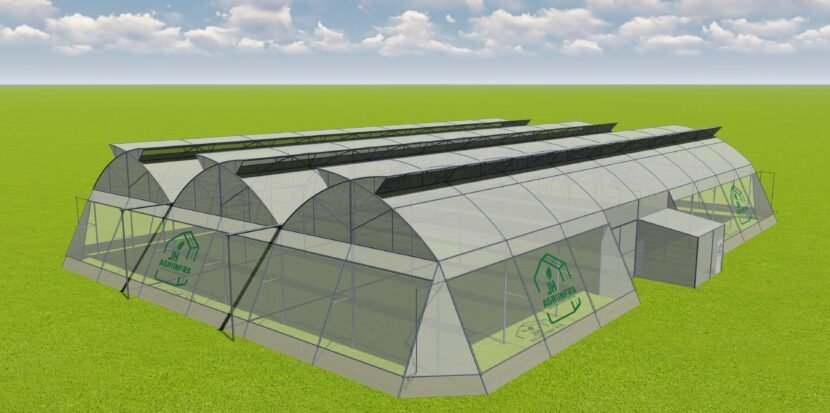

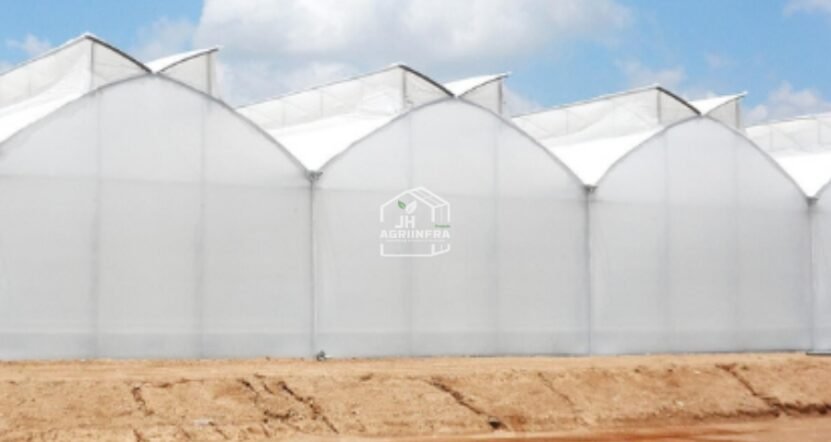

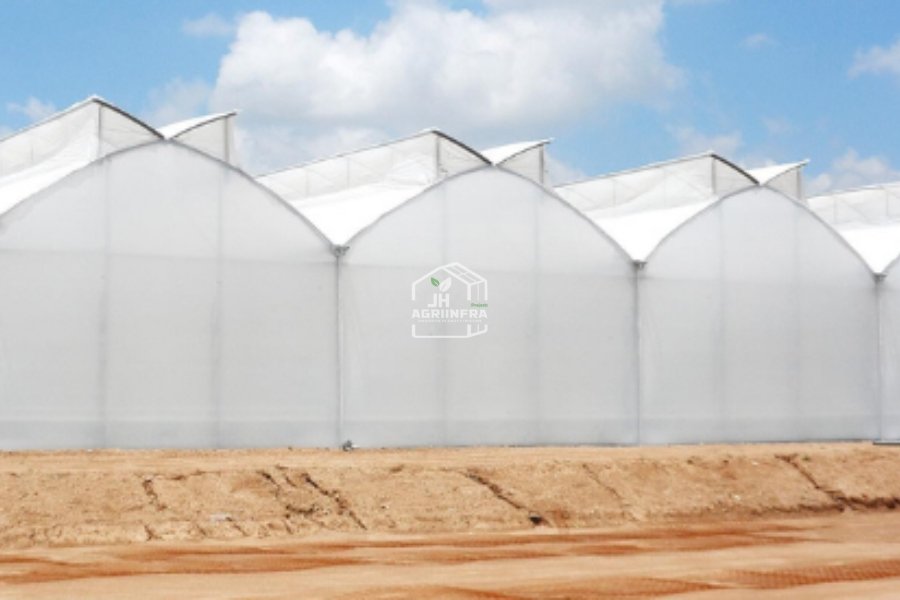

Butterfly Vent Naturally Ventilated Poly House
A Butterfly Vents Naturally Ventilated Polyhouse is a greenhouse structure equipped with adjustable vents that resemble butterfly wings. These vents are strategically placed on the roof or sides and can open and close as needed to regulate airflow, temperature, and humidity. This design allows for efficient natural ventilation, ensuring optimal growing conditions for crops while minimizing energy consumption.
Top & Side Covering
Poly Film 200 Micron, Anti-Drip, Anti-Fog, Anti-Dust, IR Cool, Diffused, Clear or Cool, UV & Agro Chemical Protected
Apron (Skirting) Laminated Fabric, 140 -160 GSM, White or Transparent, UV & Agro Chemical Protected
Insect Net 30/40/50 Mesh, 90-120 GSM, White or Transparent or Green, UV & Agro Chemical Protected
Shade Net Options (Sliding Layer)
Mono x Mono Shade Net, 50% Shading, 100-125 GSM, White or Green, UV & Agro Chemical Protected
Mono x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Tape x Tape Shade Net, 50% Shading, 100 GSM, White or Green, UV & Agro Chemical Protected
Aluminate Thermal Shade Net, 50% Shading, UV & Agro Chemical Protected
Technical Specifications
| Structure Frame | 250 to 300 GSM GI Coted Pipe (Round) Pipe/s (Hot Dip Post Galvanized Iron) |
| Thickness of GI Pipe/s (mm) | 2.00, 2.90 |
| Span (m) x Bay (m) | 8.00 x 4.00, 9.60 x 4.00 or customized |
| Centre (Top) Height (m) | 6.00 to 7.00 or customized |
| Side (Gutter) Height (m) | 3.00 to 5.00 or customized |
| Top Vent Opening (m) | 0.90 to 1.50 or customized |
| Side Vent Opening (m) | 2.50 to 4.00 or customized |
| Trellising System Capacity (kg) | 25.00 kg/m2 |
| Rainwater Harvesting Feature | Yes |
Innovation and customization are possible per client requirements.
Sections

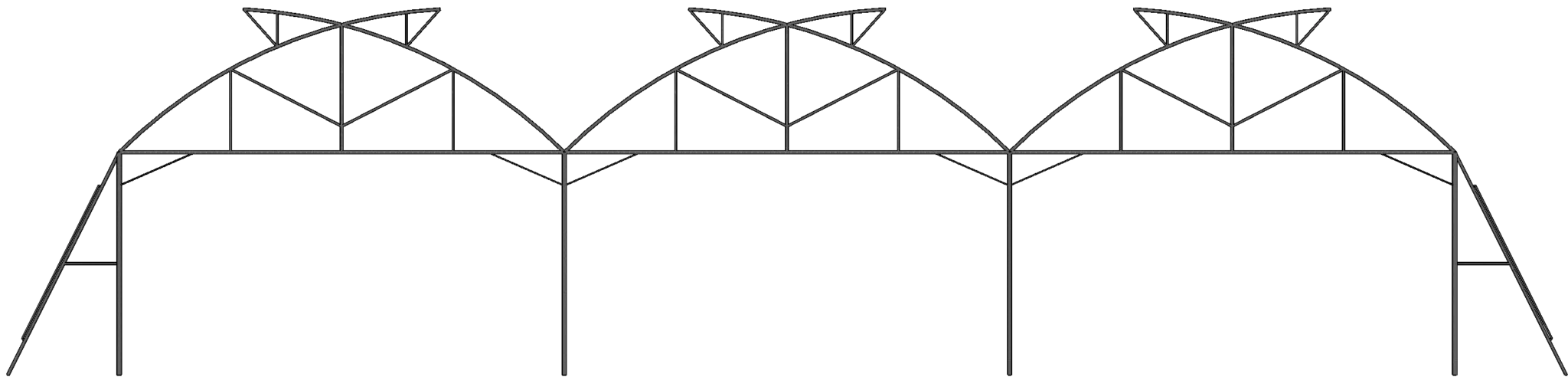

Inner Section

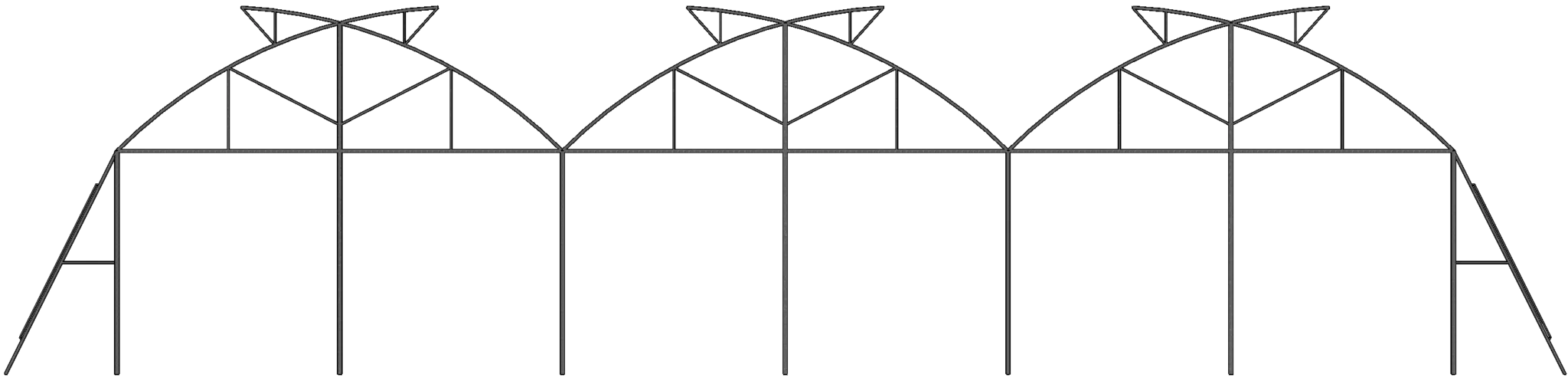

Outer Section
